ATF Cooler: Installation

WARNING: This page is about a different car, the 2006 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

Installation is the reverse order of removal.

ATF cooler bolts: 4.2 N.m (0.43 kg-m, 37 in-lb)

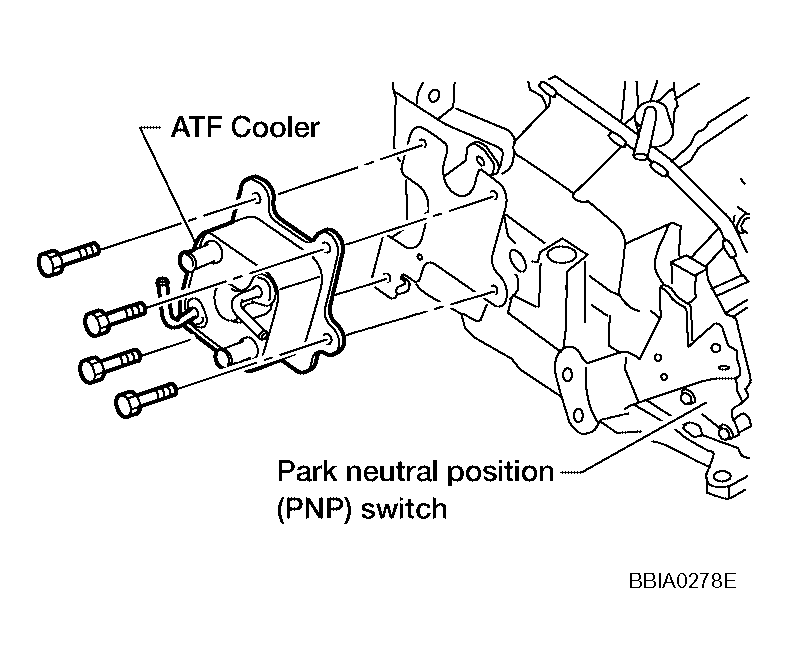

Fig 1: Identifying Bolts From ATF Cooler
G04197662Courtesy of NISSAN MOTOR CO., U.S.A.
