Mil And Data Link Connector: Wiring Diagram

WARNING: This page is about a different car, the 2004 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

For references to "PG-Power" in wiring diagrams, see GROUND DISTRIBUTION and POWER SUPPLY ROUTING CIRCUIT .

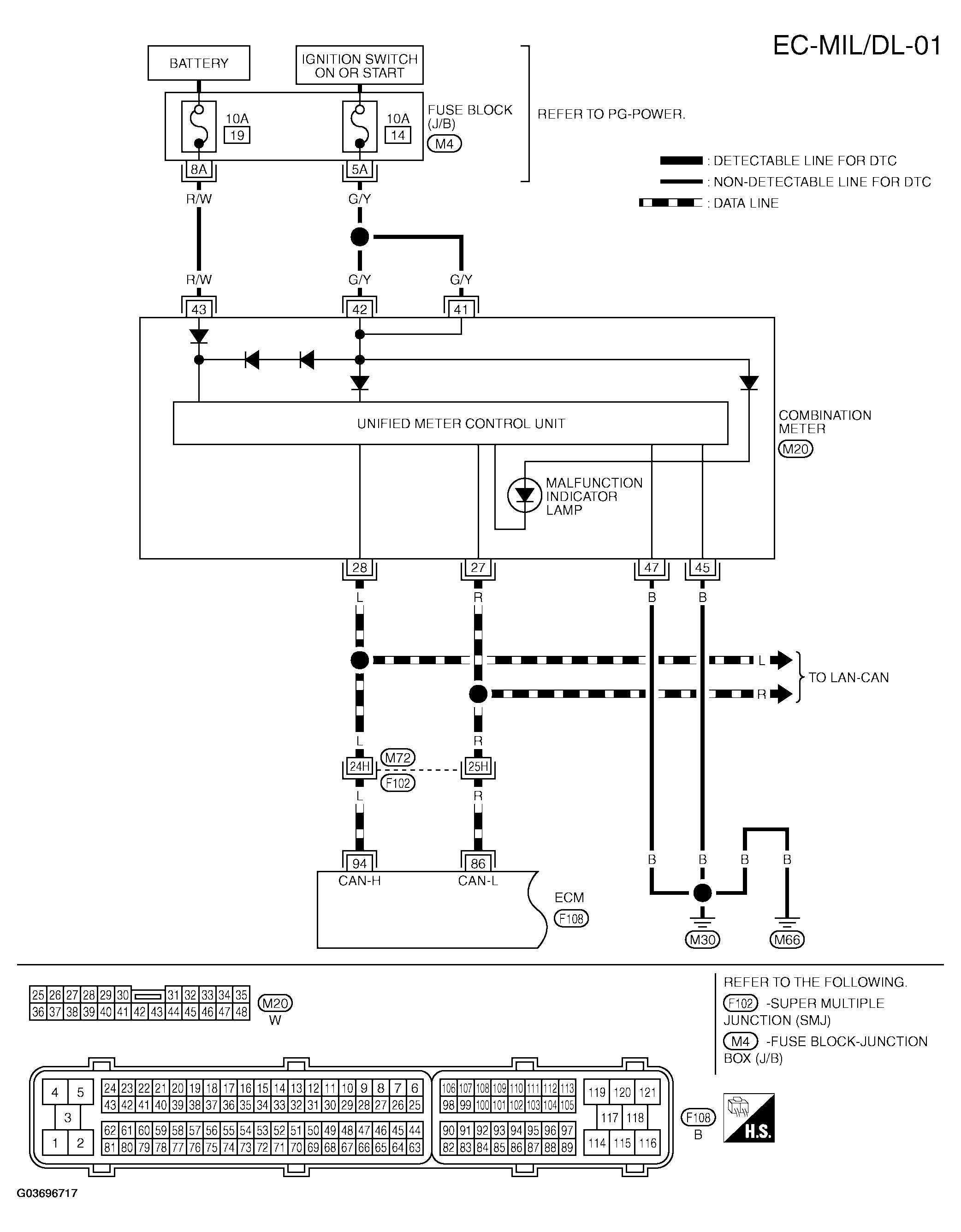

Fig 1: Wiring Diagram - EC-MIL/DL-01
G03696717Courtesy of NISSAN MOTOR CO., U.S.A.

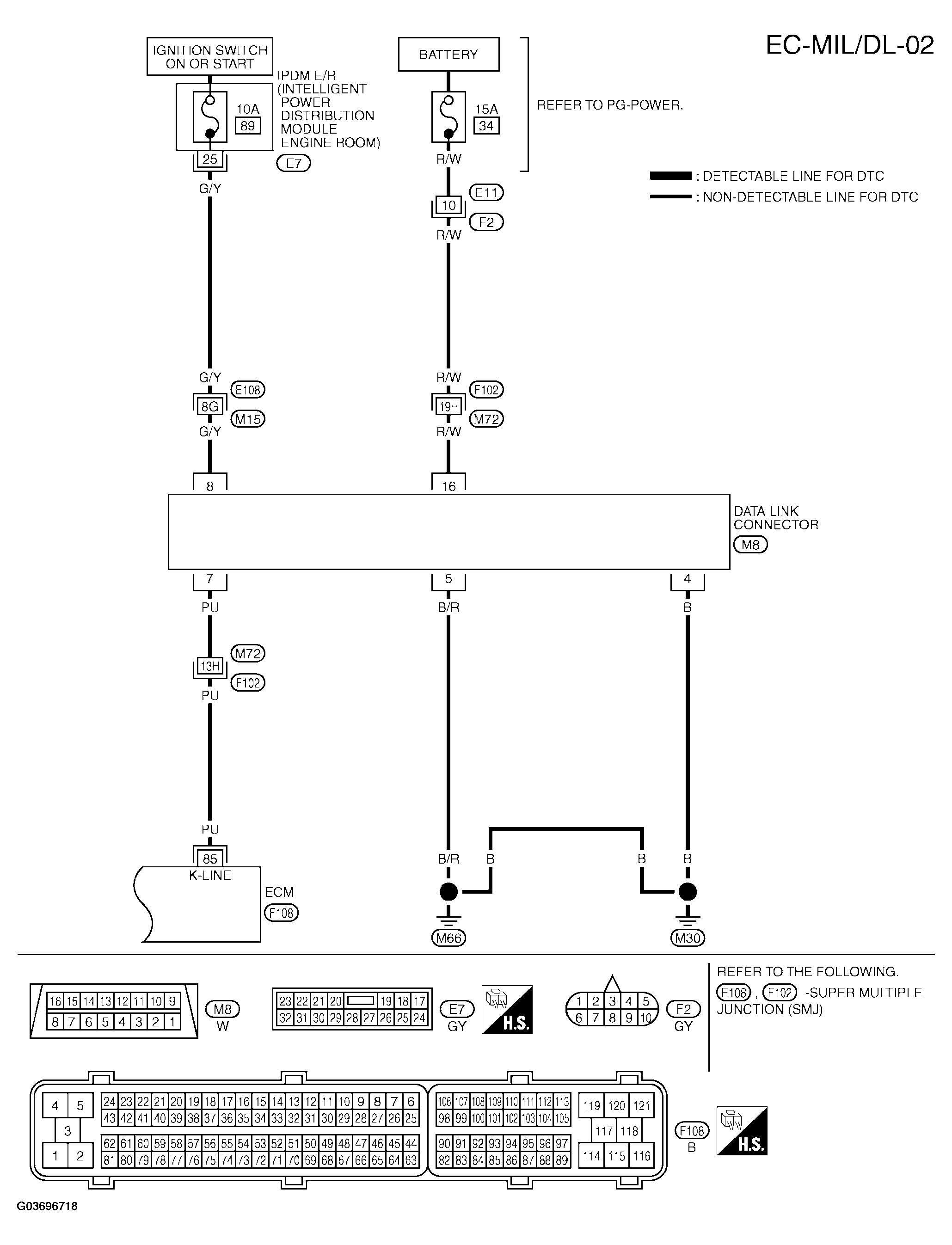

Fig 2: Wiring Diagram - EC-MIL/DL-02
G03696718Courtesy of NISSAN MOTOR CO., U.S.A.
