Idle Mixture Ratio Adjustment: Preparation

WARNING: This page is about a different car, the 2005 Nissan Frontier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Make sure that the following parts are in good order.
    • Battery
    • Ignition system
    • Engine oil and coolant levels
    • Fuses
    • ECM harness connector
    • Vacuum hoses
    • Air intake system

      (Oil filler cap, oil level gauge, etc.)

    • Fuel pressure
    • Engine compression
    • Throttle valve
    • Evaporative emission system
  2. On air conditioner equipped models, checks should be carried out while the air conditioner is OFF.
  3. On automatic transmission equipped models, when checking idle RPM, ignition timing and mixture ratio, checks should be carried out while shift lever is in P or N position (A/T), Neutral position (M/T).
  4. When measuring CO percentage, insert probe more than 40 cm (15.7 in) into tail pipe.
  5. Turn OFF headlamp, heater blower.

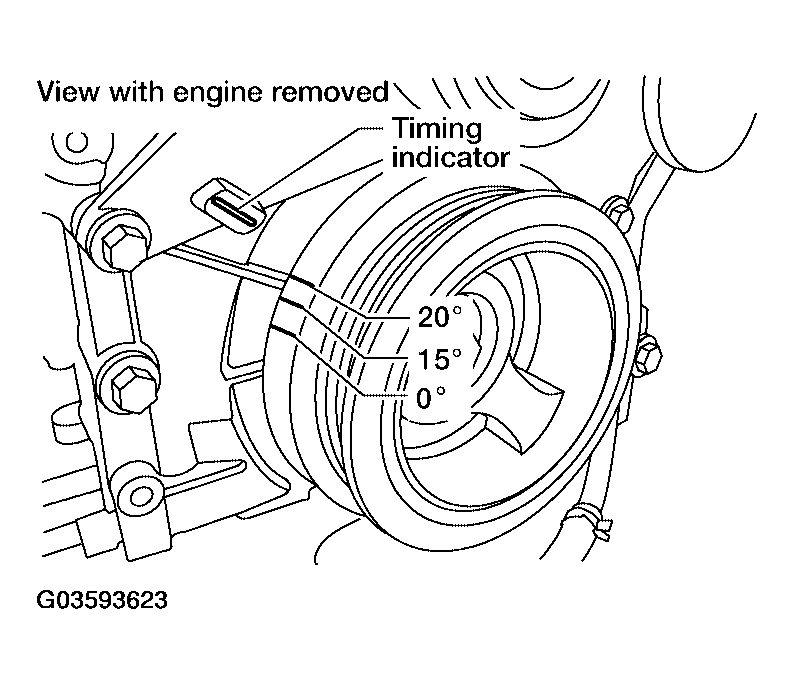

    Fig 1: Identifying Ignition Timing Mark
    G03593623Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Keep front wheels pointed straight ahead.
