Work Flow Chart

WARNING: This page is about a different car, the 2007 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

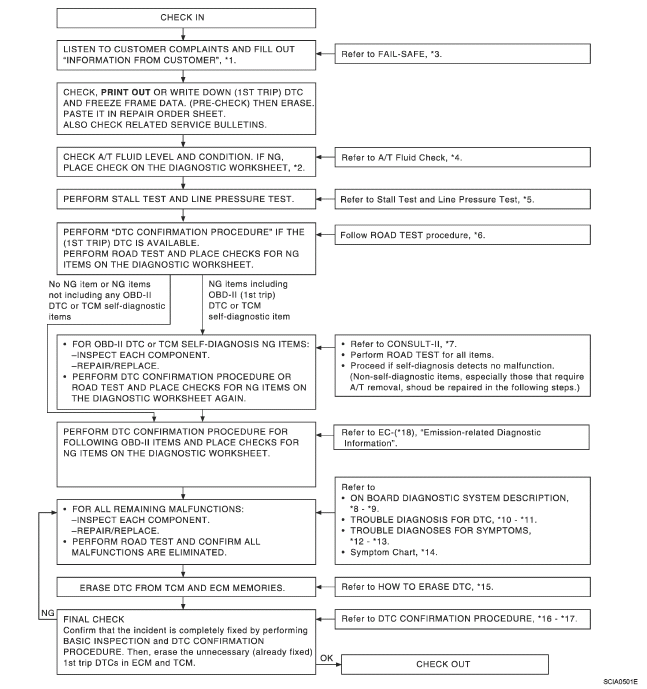

Fig 1: Work Flow Chart

G04905994

Courtesy of NISSAN MOTOR CO., U.S.A.

WORK FLOW CHART REFERENCES

*1. DIAGNOSTIC WORKSHEET

*2. DIAGNOSTIC WORKSHEET

*3. TROUBLE DIAGNOSIS

*4. INSPECTIONS BEFORE TROUBLE DIAGNOSIS

*5. LINE PRESSURE TEST , ROAD TEST

*6. JUDGEMENT OF LINE PRESSURE TEST

*7. SELF-DIAG RESULT MODE

*8. ON BOARD DIAGNOSTIC (OBD) SYSTEM

*9. MALFUNCTION INDICATOR LAMP (MIL)

*10. DTC U1000 CAN COMMUNICATION LINE

*11. DTC P1726 ELECTRIC THROTTLE CONTROL SYSTEM

*12. O/D OFF INDICATOR LAMP DOES NOT COME ON

*13. TCM SELF-DIAGNOSIS DOES NOT ACTIVATE

*14. SHIFT SCHEDULE

*15. HOW TO ERASE DTC

*16. DTC U1000 CAN COMMUNICATION LINE

*17. DTC P1726 ELECTRIC THROTTLE CONTROL SYSTEM

*18. ON BOARD DIAGNOSTIC (OBD) SYSTEM
