PNP Switch
WARNING: This page is about a different car, the 2007 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

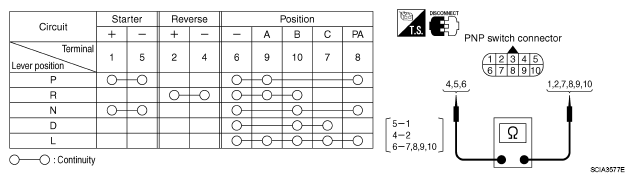

- Check continuity between PNP switch terminals while moving selector lever. Refer to the following table.
- If NG, check again with control cable disconnected. (Refer to step 1 above.)
- If OK on step 2, adjust control cable. Refer to "CONTROL CABLE ADJUSTMENT ".
- If NG on step 2, remove park/neutral position (PNP) switch from A/T and check continuity of park/neutral position (PNP) switch terminals. (Refer to step 1 above.)
- If OK on step 4, adjust park/neutral position (PNP) switch. Refer to "PARK/NEUTRAL POSITION (PNP) SWITCH ADJUSTMENT ".
- If NG on step 4, replace park/neutral position (PNP) switch.
