Wiring Diagram - NAVI -

WARNING: This page is about a different car, the 2006 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

For PG, go to SYSTEM WIRING DIAGRAMS .

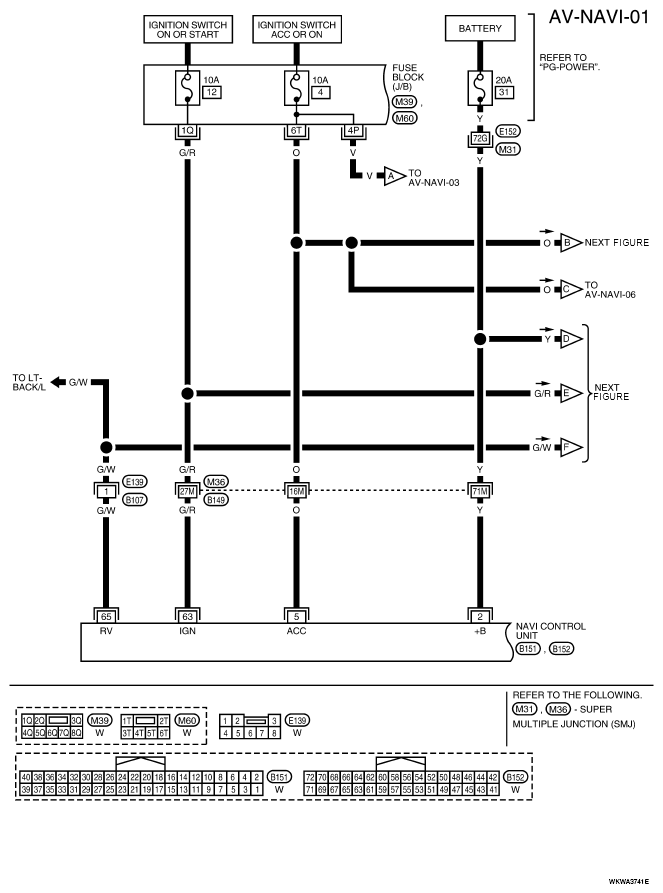

Fig 1: AV-NAVI-01 - Wiring Diagram

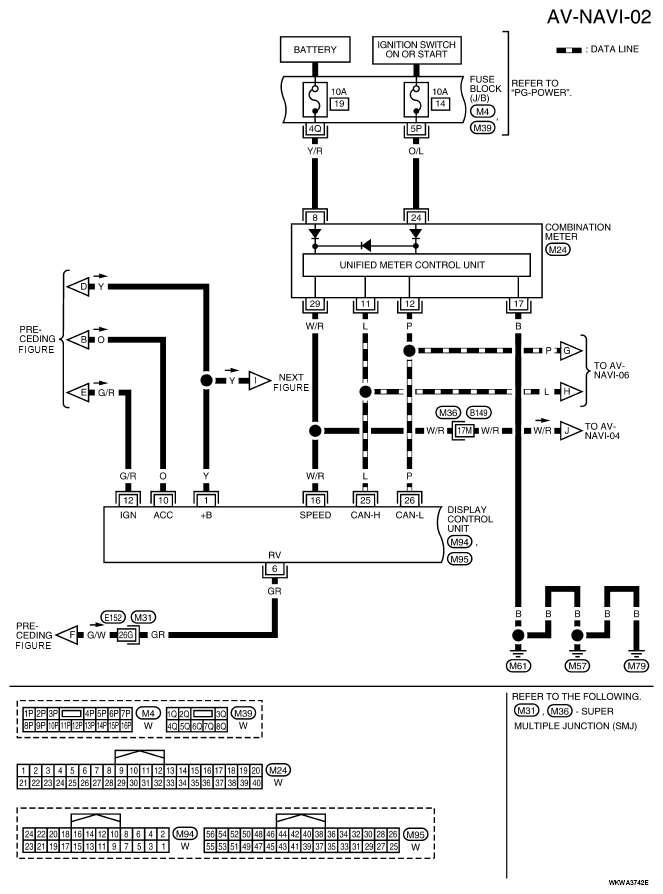

Fig 2: AV-NAVI-02 - Wiring Diagram

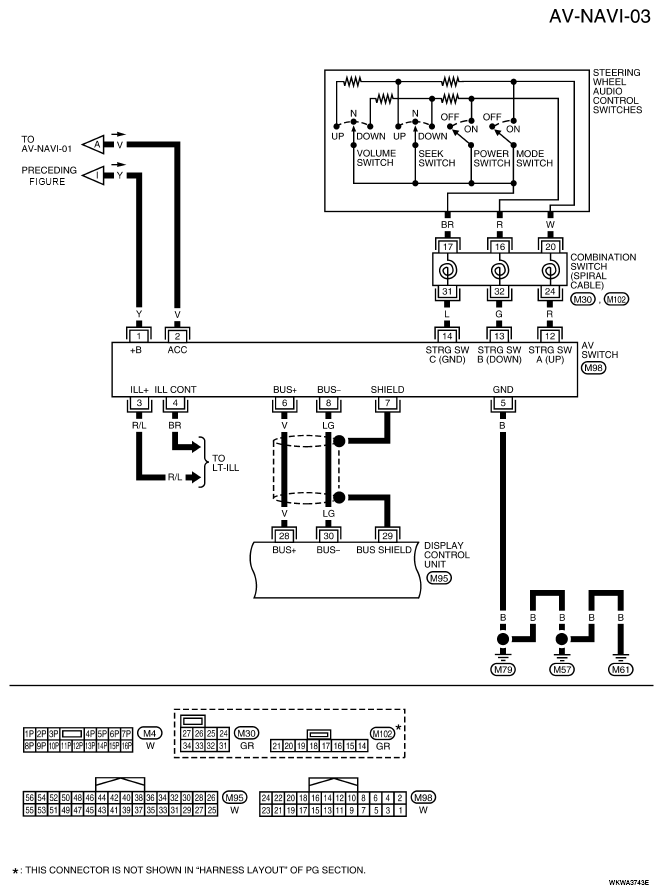

Fig 3: AV-NAVI-03 - Wiring Diagram

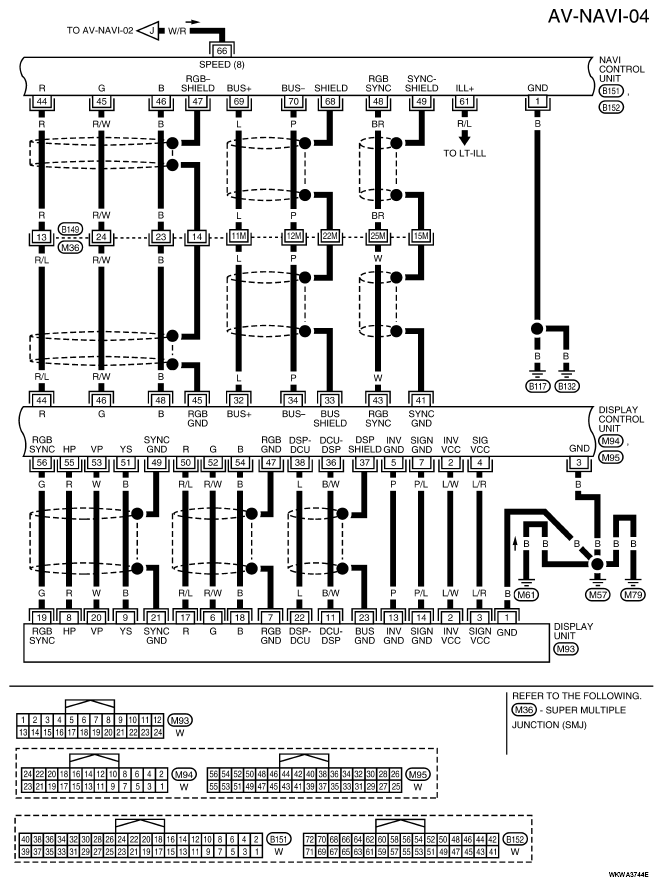

Fig 4: AV-NAVI-04 - Wiring Diagram

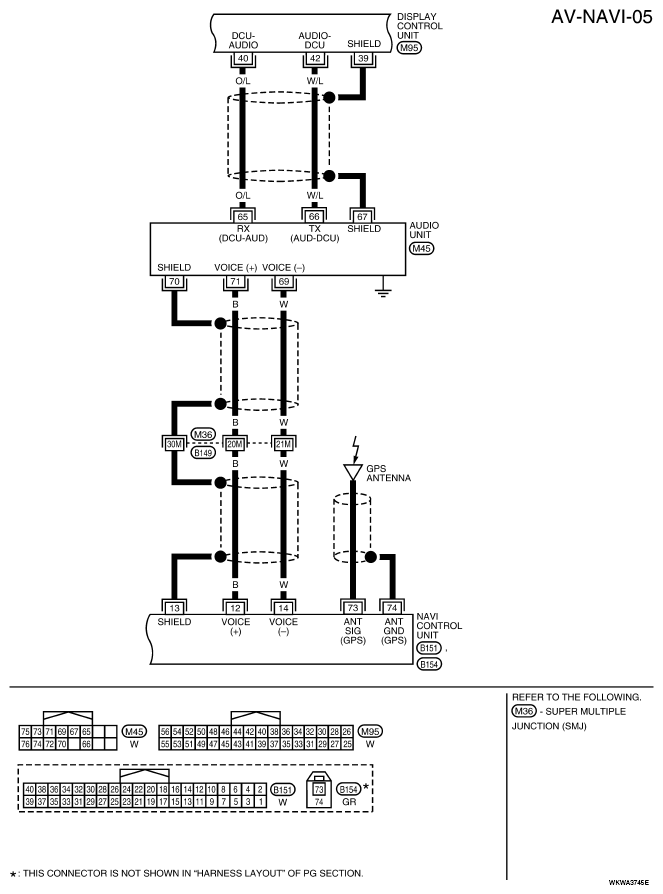

Fig 5: AV-NAVI-05 - Wiring Diagram

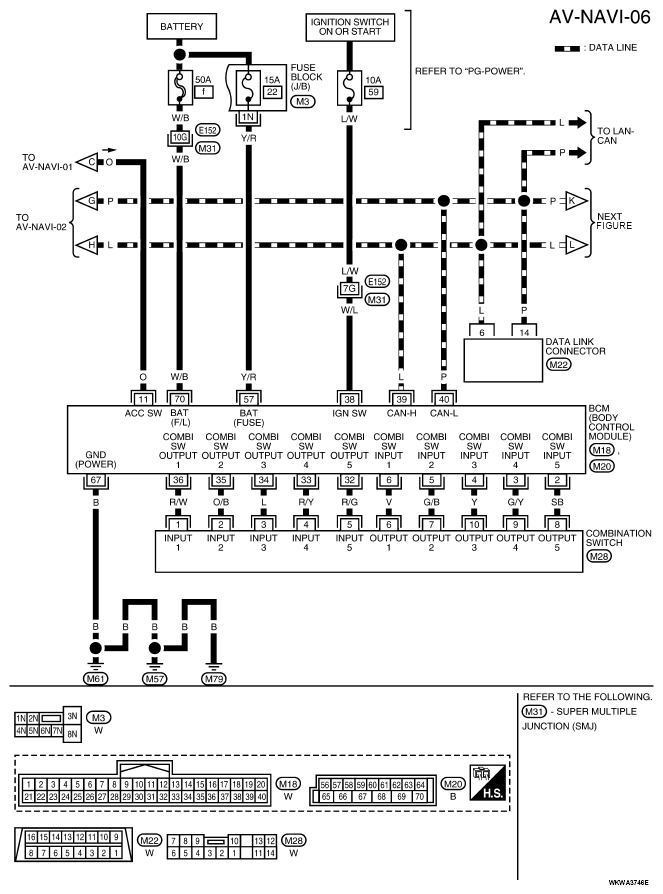

Fig 6: AV-NAVI-06 - Wiring Diagram

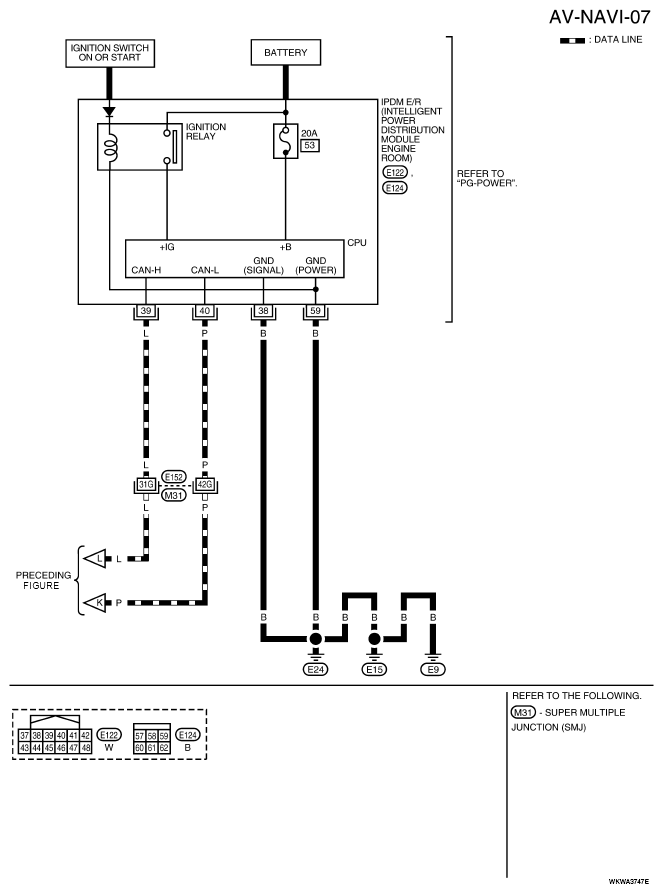

Fig 7: AV-NAVI-07 - Wiring Diagram
