Midline System

WARNING: This page is about a different car, the 2006 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

For PG, go to SYSTEM WIRING DIAGRAMS .

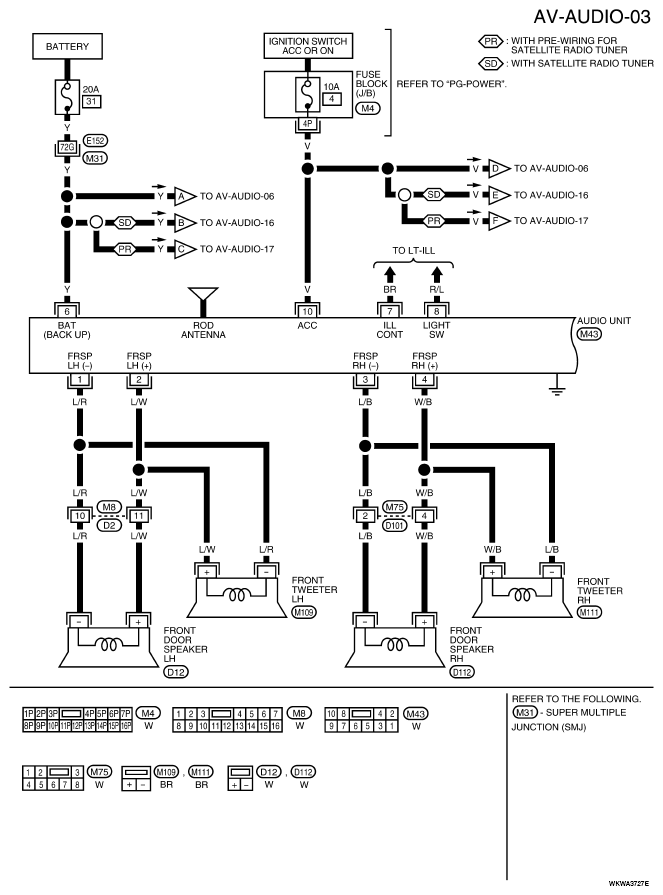

Fig 1: AV-AUDIO-03 - Wiring Diagram

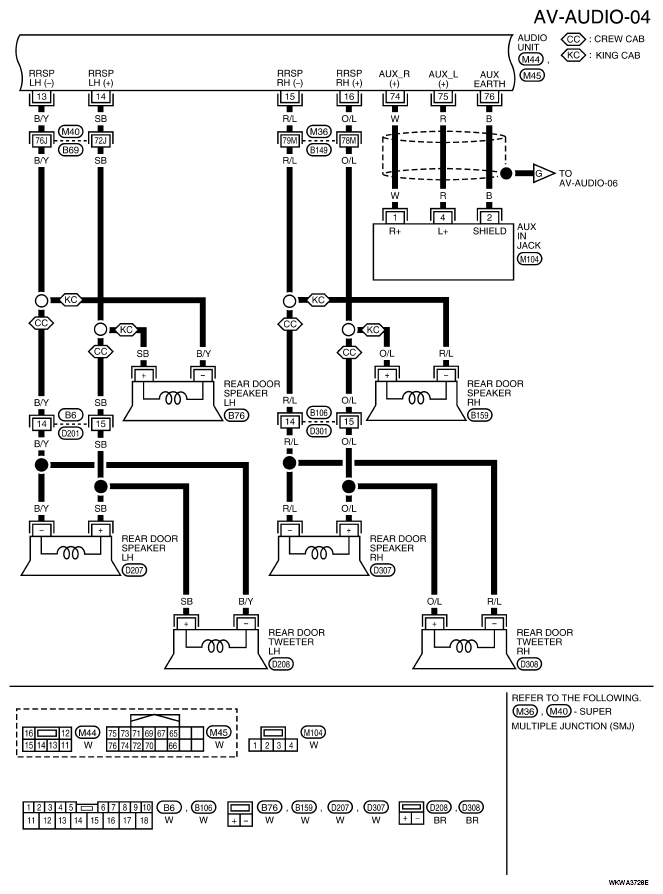

Fig 2: AV-AUDIO-04 - Wiring Diagram

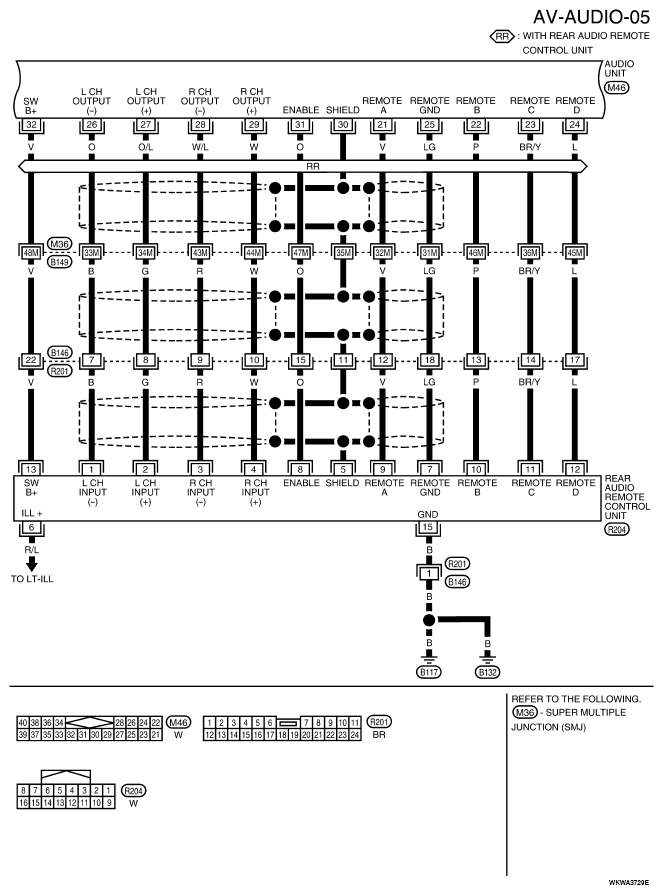

Fig 3: AV-AUDIO-05 - Wiring Diagram

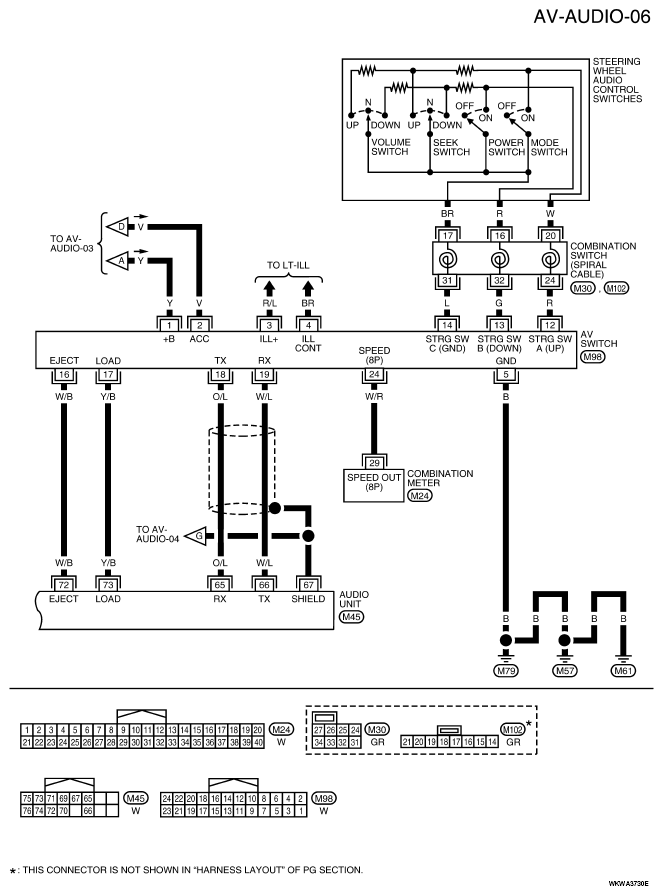

Fig 4: AV-AUDIO-06 - Wiring Diagram
