Base System

WARNING: This page is about a different car, the 2006 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

For PG, go to SYSTEM WIRING DIAGRAMS .

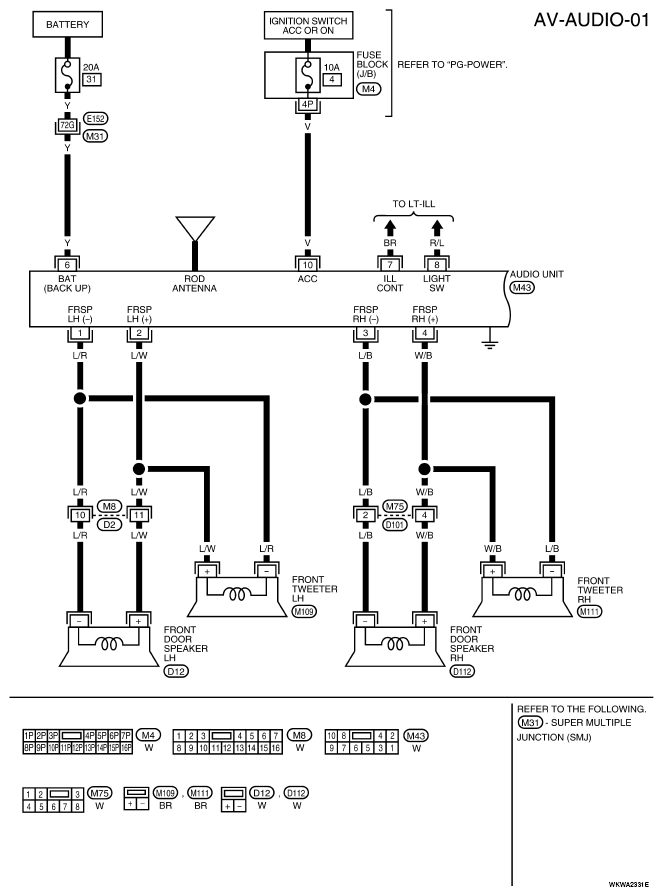

Fig 1: AV-AUDIO-01 - Wiring Diagram
G04757028

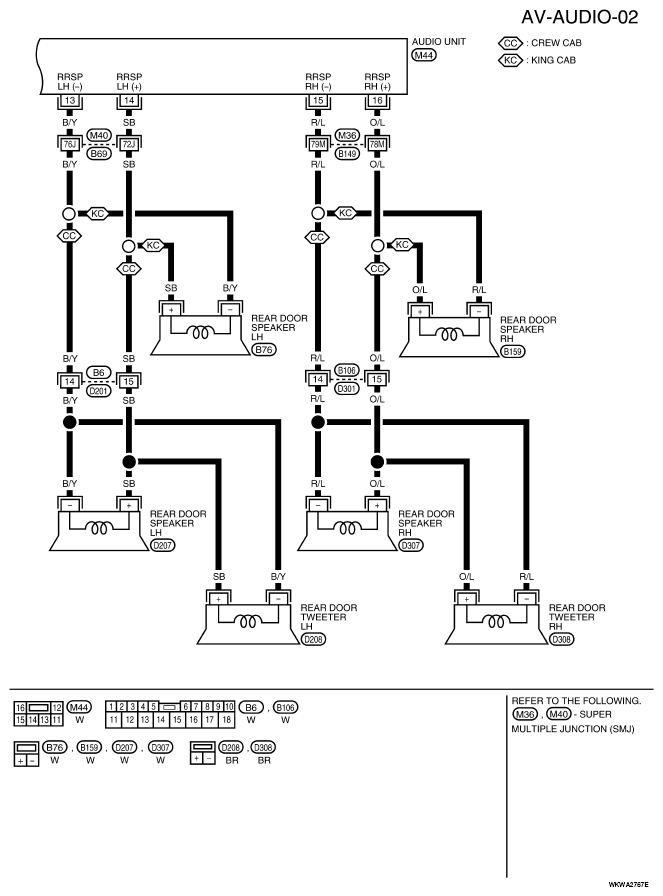

Fig 2: AV-AUDIO-02 - Wiring Diagram
G04757029
