Wiring Diagram - CAN -

WARNING: This page is about a different car, the 2006 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.

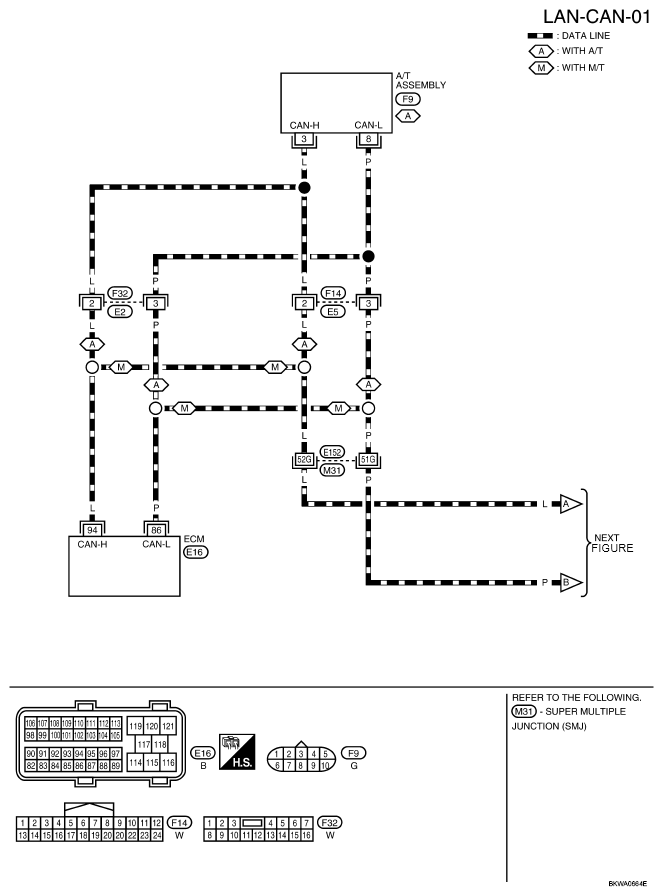

Fig 1: LAN-CAN-01 - Wiring Diagram
G04745929

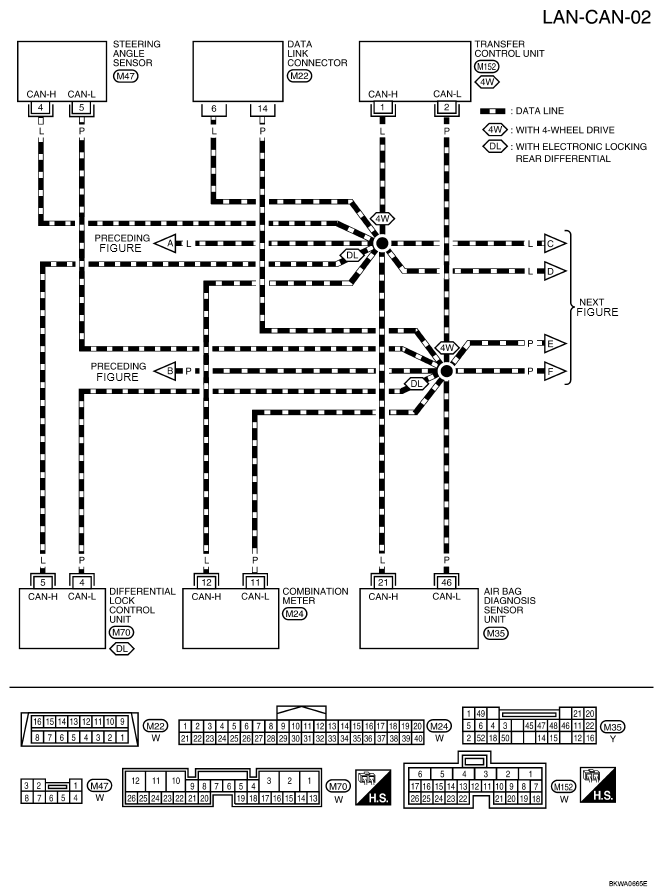

Fig 2: LAN-CAN-02 - Wiring Diagram
G04745930

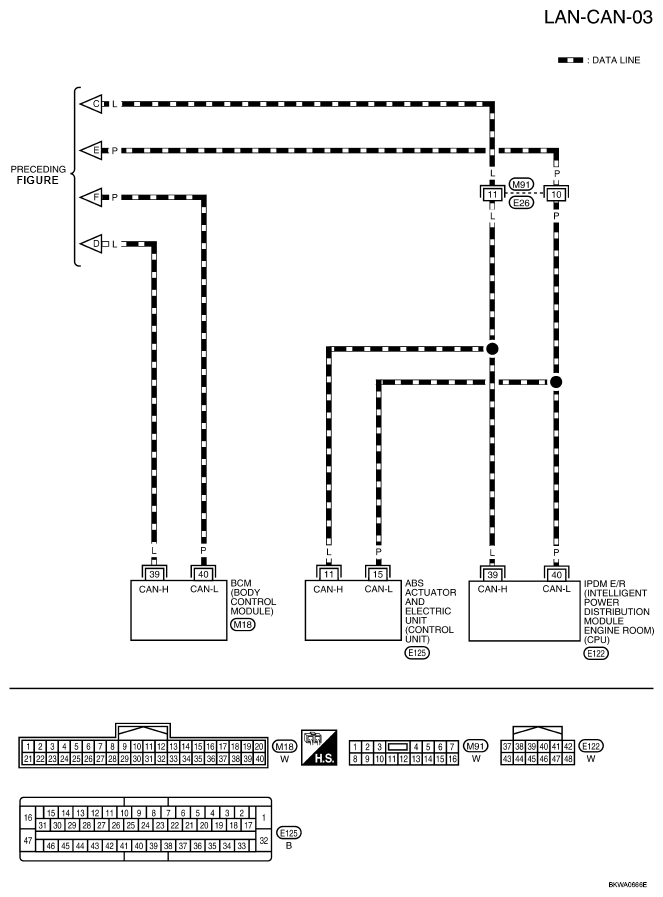

Fig 3: LAN-CAN-03 - Wiring Diagram
G04745931
