Removal and Installation: Installation
WARNING: This page is about a different car, the 2005 Infiniti FX45. However, it is still accessible from the selected car via links, so may be relevant.
Note the following, and install in the reverse order of removal.
- Make sure that no foreign objects are adhering to the installation planes of oil cooler or oil pan.

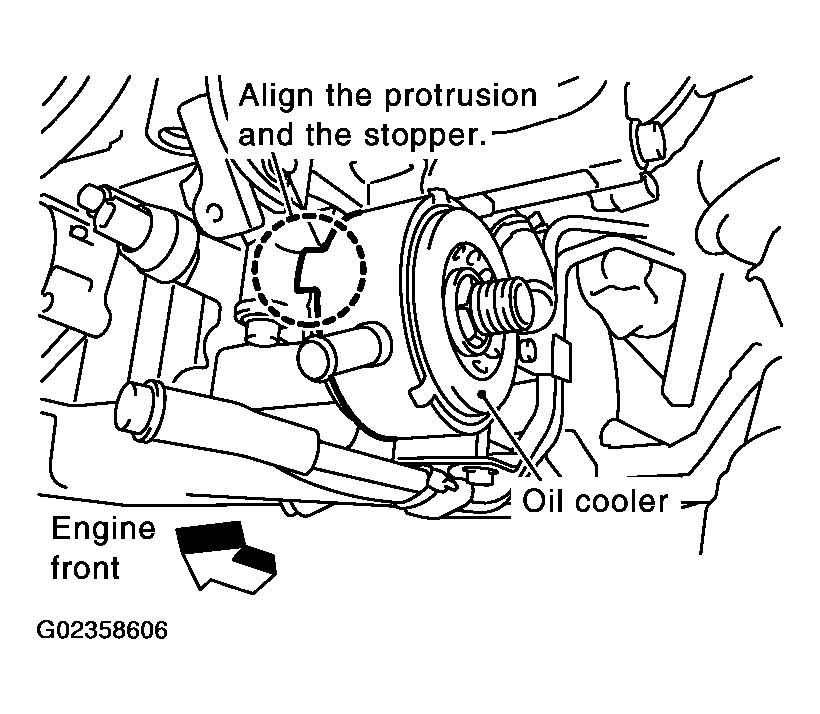

- Tighten connector bolt after aligning stopper on the oil pan side with protrusion of oil cooler.
