Cooling Fan Motor

WARNING: This page is about a different car, the 2005 Infiniti FX45. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect cooling fan motor harness connector.
Supply cooling fan motor terminals with battery voltage and check operation.

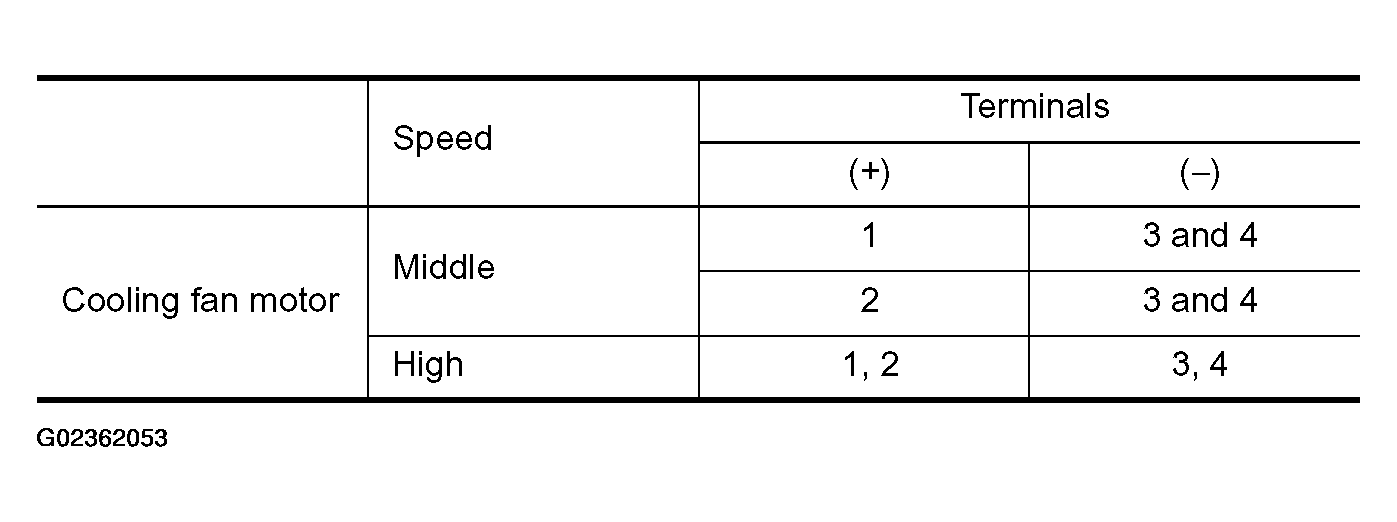

Fig 1: Cooling Fan Motor Speed And Terminal Reference Chart
Courtesy of NISSAN MOTOR CO., U.S.A.

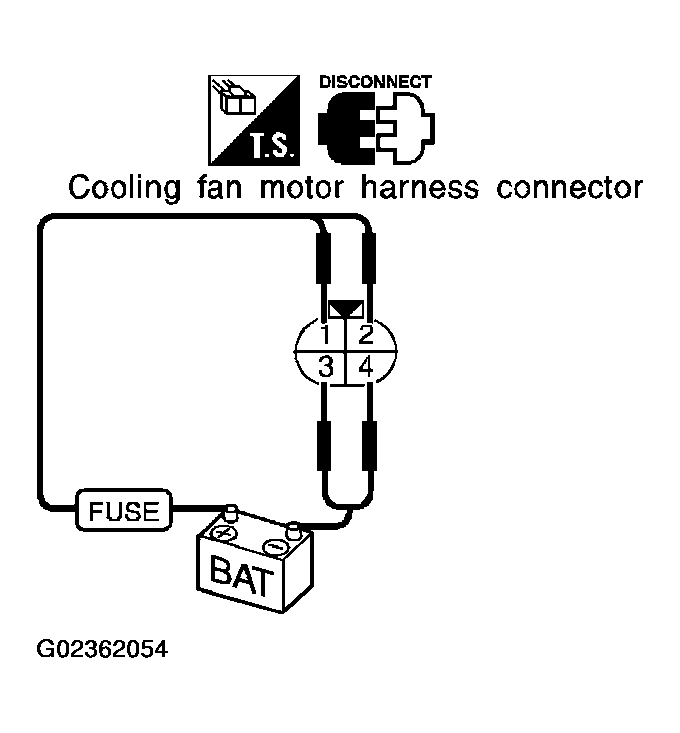

Fig 2: Supplying Cooling Fan Motor Terminals With Battery Voltage
Courtesy of NISSAN MOTOR CO., U.S.A.

Cooling fan motor should operate.

If NG, replace cooling fan motor.
