Cylinder Block: Components

WARNING: This page is about a different car, the 2005 Infiniti FX45. However, it is still accessible from the selected car via links, so may be relevant.

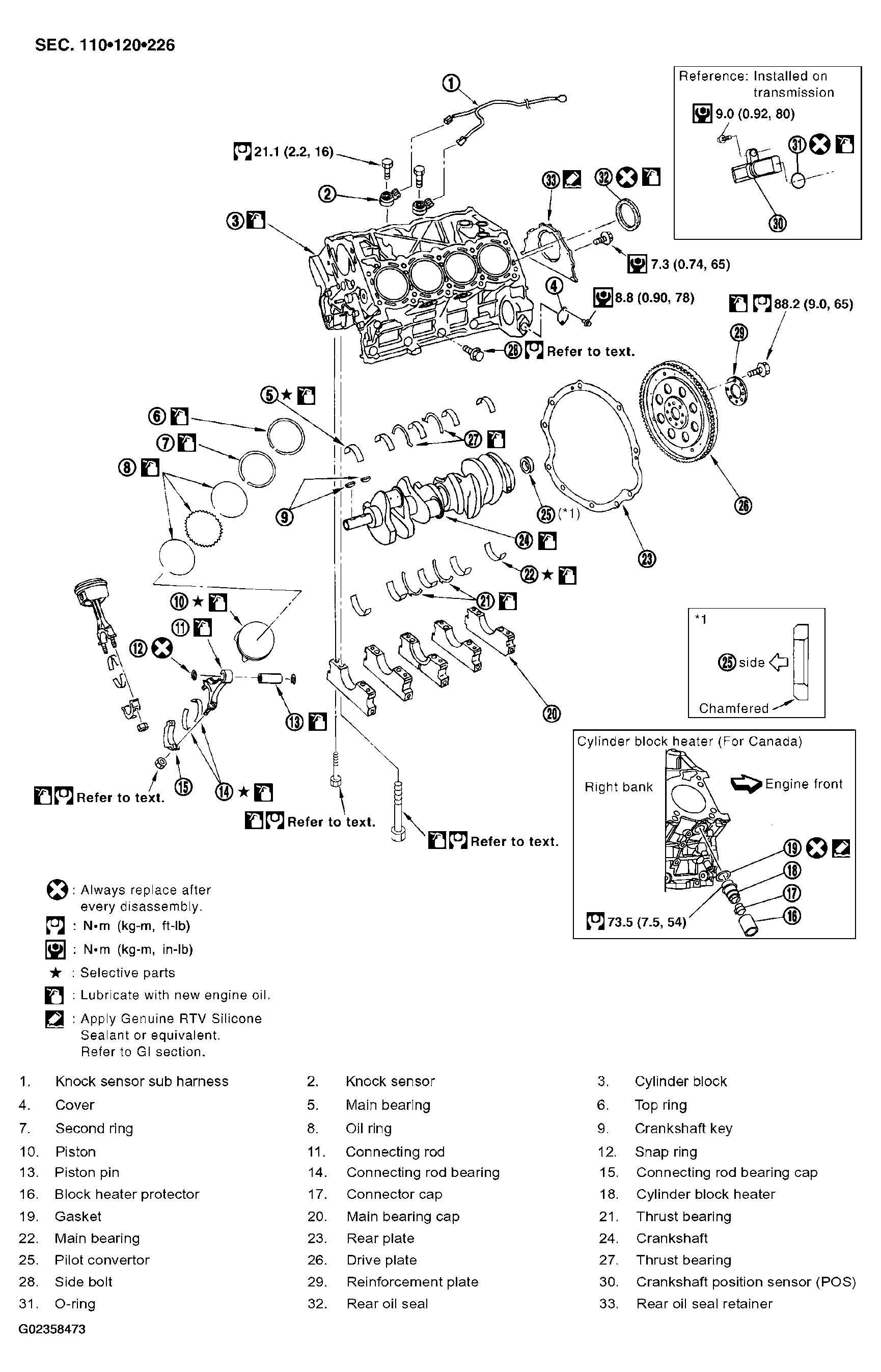

Fig 1: Cylinder Block Replacement Components -- With Torque Specifications
G02358473Courtesy of NISSAN MOTOR CO., U.S.A.
