Rear Speaker: Installation

HINT:

• Use the same procedures for the RH side and LH side.
• The procedures listed below are for the LH side.

1. INSTALL REAR SPEAKER ASSEMBLY LH
   1. Install the rear speaker with the 3 screws.
   2. Connect the connector.

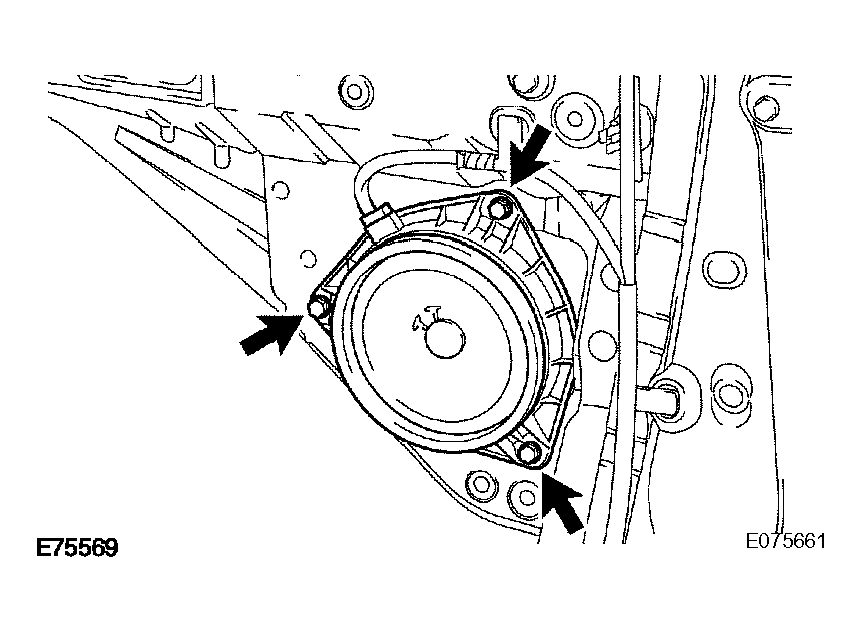

   Fig 1: Installing Rear Speaker With 3 Screws

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. INSTALL SIDE NO. 1 TRIM ASSEMBLY LH (See  INSTALLATION  )
3. INSTALL LUGGAGE COMPARTMENT TRIM HOOK NO.1
4. INSTALL FRONT DOOR SCUFF PLATE LH (See  INSTALLATION  )
5. INSTALL REAR SEATBACK ASSEMBLY LH (See  INSTALLATION  )
6. INSTALL REAR SEAT CUSHION ASSEMBLY (See  INSTALLATION  )
7. INSTALL NO. 1 REAR FLOOR BOARD (See  INSTALLATION  )
8. INSTALL ROPE HOOK ASSEMBLY
9. INSTALL DECK FLOOR BOX RH (See  INSTALLATION  )
10. INSTALL DECK FLOOR BOX LH (See  INSTALLATION  )
11. INSTALL BACK DOOR SCUFF PLATE (See  INSTALLATION  )
12. INSTALL DECK BOARD SUB-ASSEMBLY
13. INSTALL TONNEAU COVER ASSEMBLY
14. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
15. PERFORM INITIALIZATION
    1. Perform initialization (see INITIALIZATION ).
    NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
