Front Wiper Rubber: Installation

WARNING: This page is about a different car, the 2006 Scion tC. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

Use the same procedures for the RH side and LH side.
The procedures listed below are for the LH side.

INSTALL WIPER RUBBER LH
1. Install the 2 wiper rubber backing plates to the wiper rubber LH.
  NOTE: Be sure to install the wiper rubber backing plates in the correct direction.

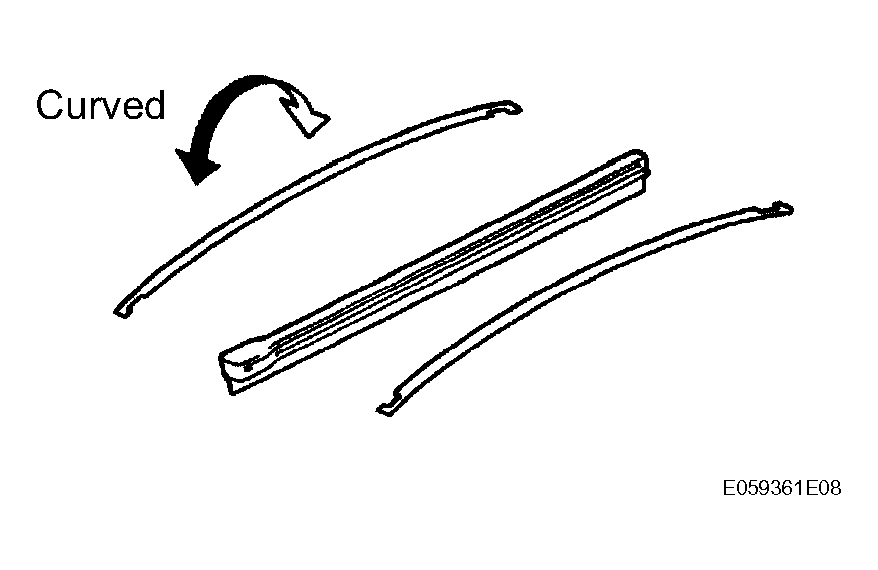

  Fig 1: Installing Wiper Rubber LH Side
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the wiper rubber LH so that the head part (longer side) of the wiper rubber faces the arm axle side.
INSTALL FRONT WIPER BLADE LH
1. Install the front wiper blade LH to the front wiper arm LH.

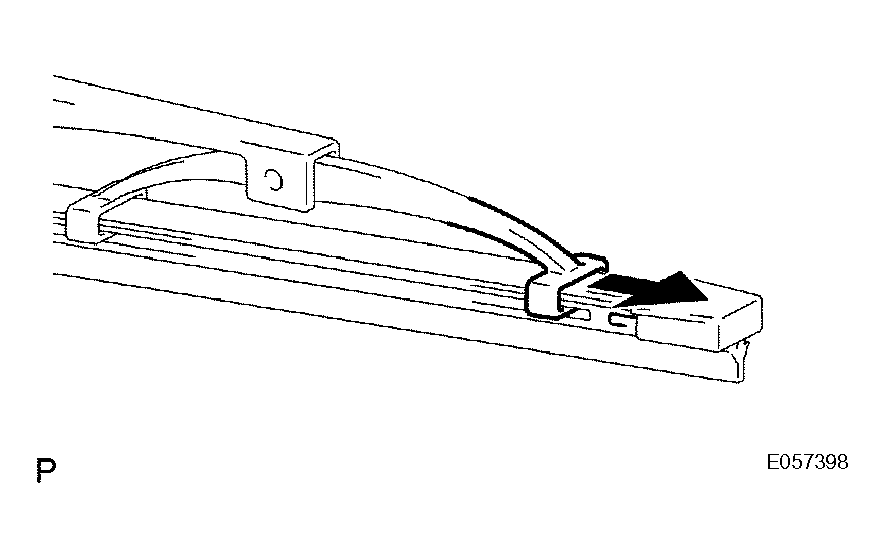

Fig 2: Installing Front Wiper Blade LH Side
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
