Front Wiper Motor And Link: Installation

WARNING: This page is about a different car, the 2006 Scion tC. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL WIPER LINK ASSEMBLY
1. Install the windshield wiper motor with the 3 bolts.
  Torque: 5.4 N.m (55 kgf.cm, 47 in. lbf)

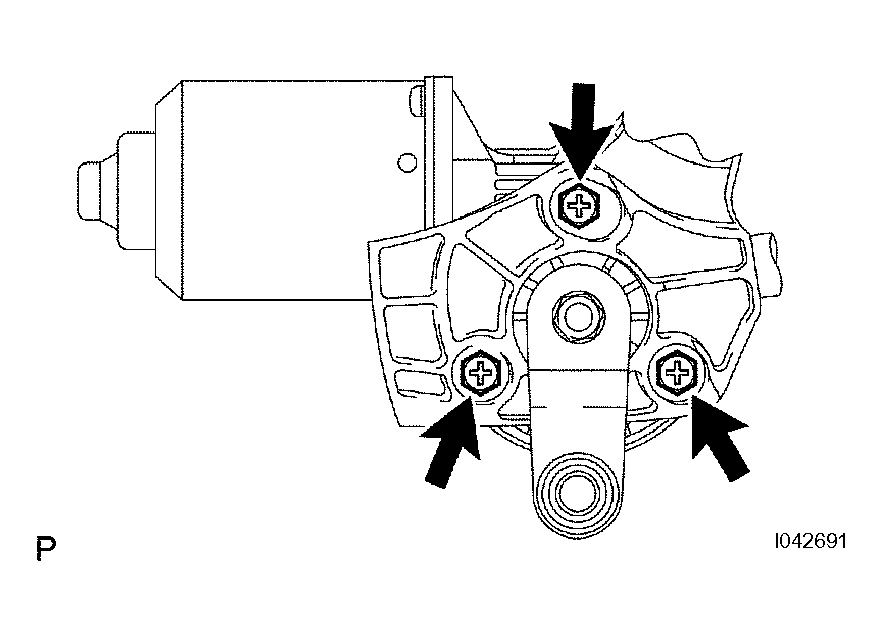

  Fig 1: Installing Windshield Wiper Motor With Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Turn the crank arm of the windshield wiper motor by hand to the position shown in the illustration.
3. Apply DENSO No. 50 grease to the crank arm pivot of the windshield wiper motor.
4. Install the rod to the wiper link.

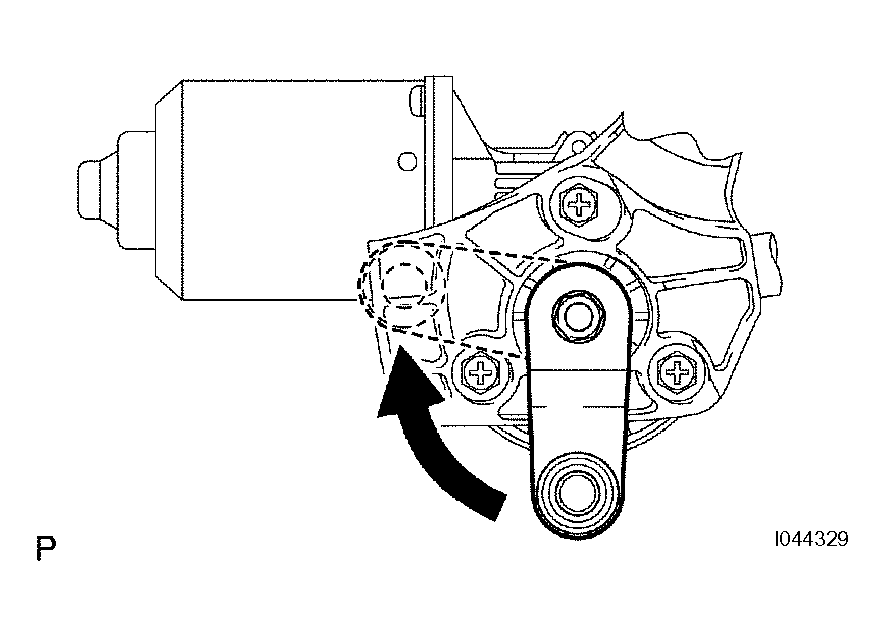

Fig 2: Turning Crank Arm Of Windshield Wiper Motor
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY
1. Install the windshield wiper motor and link assembly with the 4 bolts.
  Torque: 5.4 N.m (55 kgf.cm, 47 in. lbf)
2. Connect the connector.
INSTALL COWL TOP VENTILATOR LOUVER LH
1. Attach the 5 claws and 2 clips, and install the cowl top ventilator louver LH.
INSTALL HOOD TO COWL TOP SEAL
1. Attach the 8 clips, and install the hood to cowl top seal.

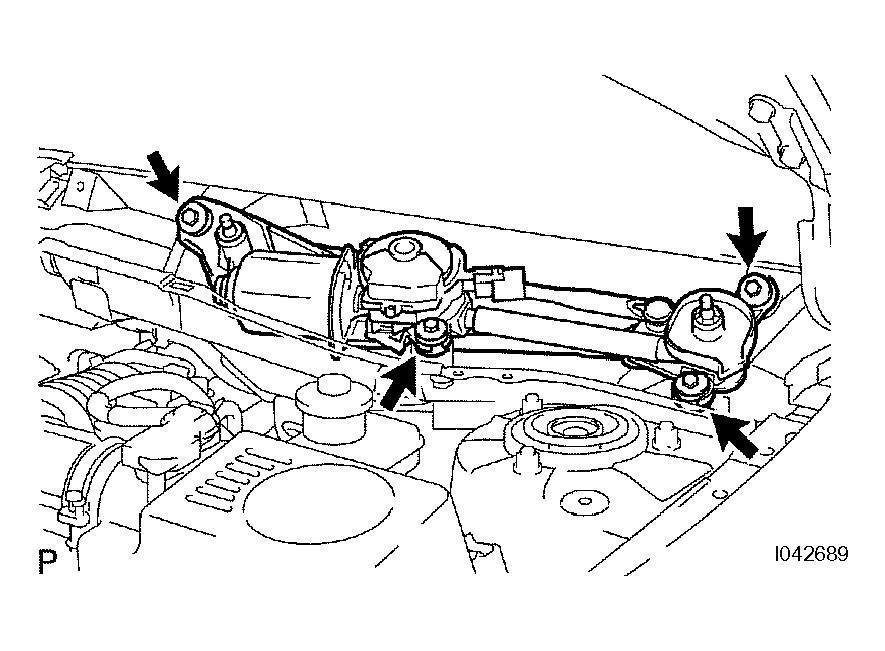

Fig 3: Installing Windshield Wiper Motor And Link Assembly With Bolts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT WIPER ARM AND BLADE ASSEMBLY LH
1. Operate the wiper, and stop the windshield wiper motor assembly at the automatic stop position.
2. Clean the wiper arm serrations.
3. Clean the wiper pivot serration with a wire brush (when reinstalling).

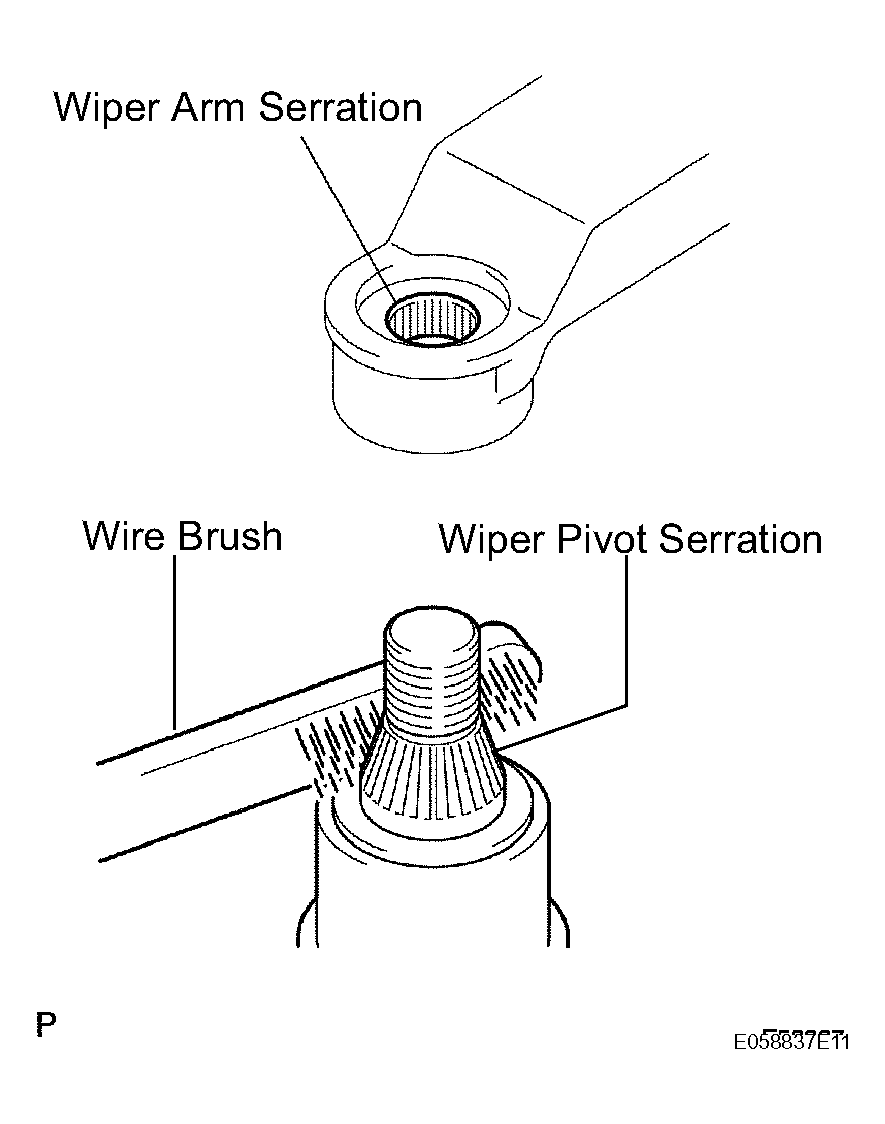

  Fig 4: Cleaning Wiper Pivot Serration With Wire Brush
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Install the front wiper arm and blade assembly LH with the nut at the position as shown in the illustration.
  Torque: 34.3 N.m (350 kgf.cm, 25 ft. lbf)

  HINT:

  Hold the arm hinge by hand to fasten the nut.

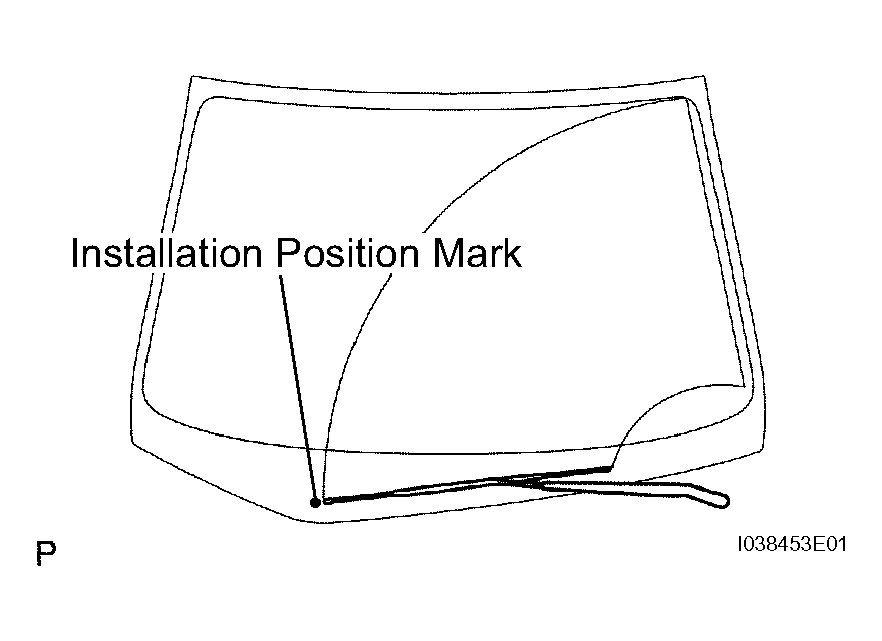

  Fig 5: Identifying Installation Position Mark
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT WIPER ARM AND BLADE ASSEMBLY RH
1. Clean the wiper arm serrations.
2. Clean the wiper pivot serration with a wire brush (when reinstalling).

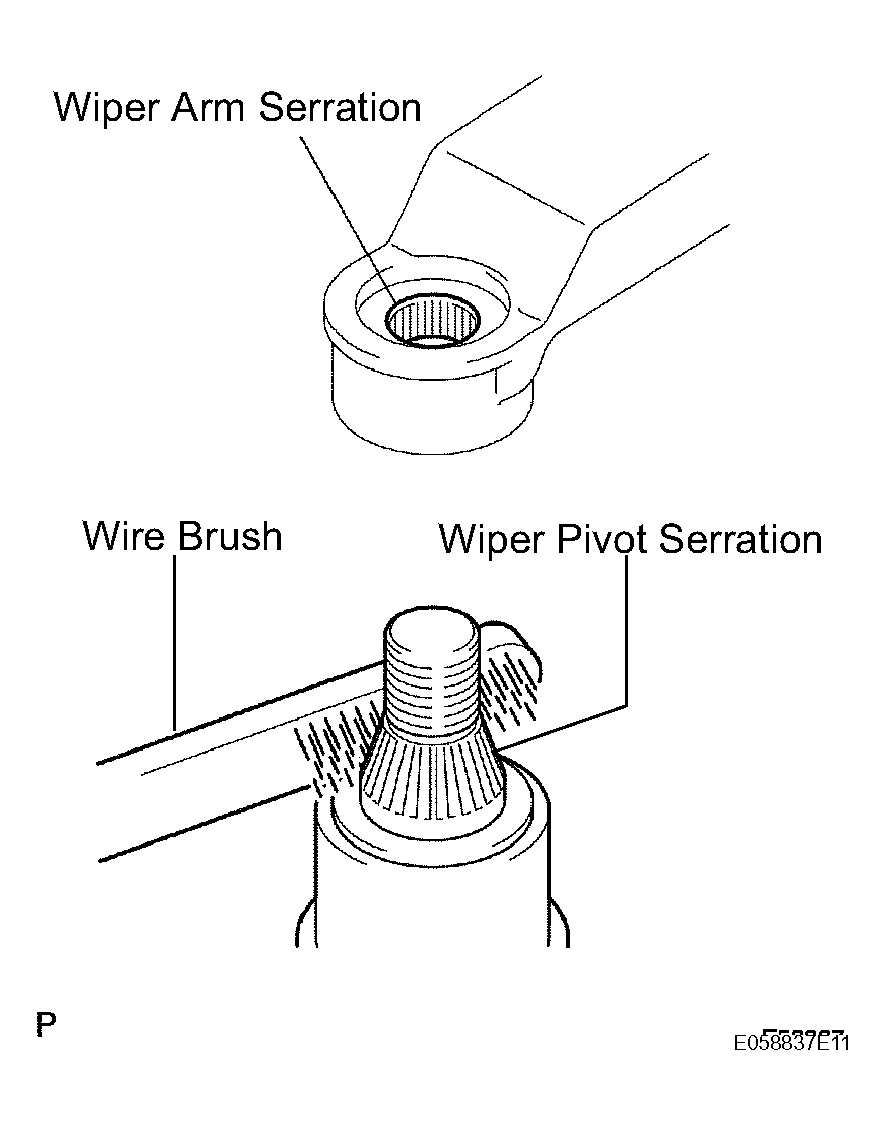

  Fig 6: Cleaning Wiper Pivot Serration With Wire Brush
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the front wiper arm and blade assembly RH with the nut at the position shown in the illustration.
  Torque: 34.3 N.m (350 kgf.cm, 25 in. lbf)

  HINT:

  Hold the arm hinge by hand to fasten the nut.
INSTALL FRONT WIPER ARM HEAD CAP
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
PERFORM INITIALIZATION
1. Perform initialization (see INITIALIZATION ).
  NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.

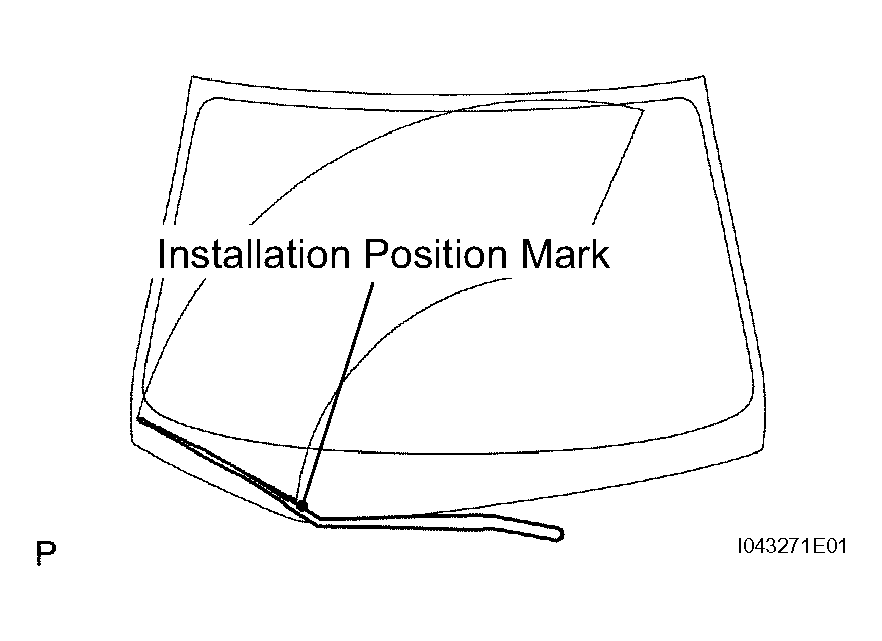

  Fig 7: Identifying Installation Position Mark
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
