Instrument Lower Panel LH: Removal

WARNING: This page is about a different car, the 2006 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove fuse box cover (1).

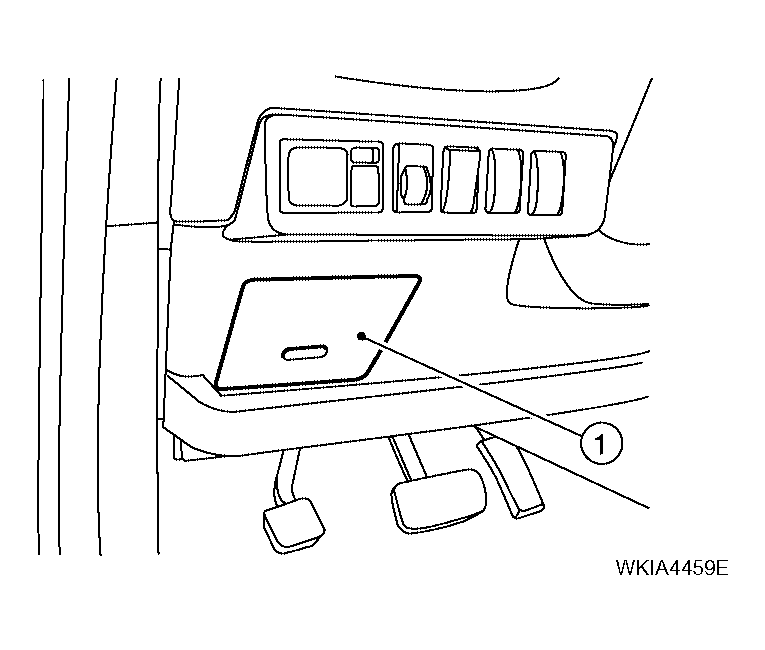

    Fig 1: Removing Fuse Box Cover
    G04199880Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Remove instrument lower panel LH, using power tool.

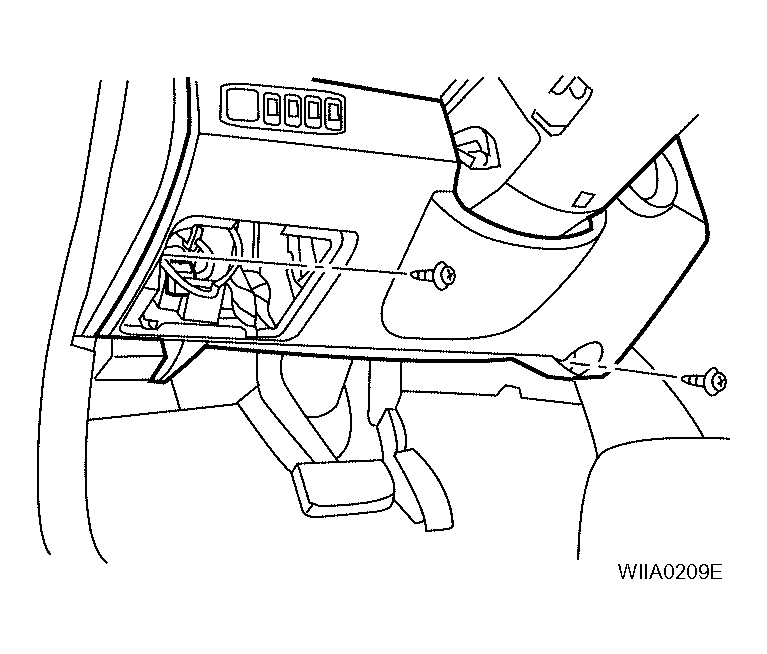

    Fig 2: Removing Instrument Lower Panel LH
    G04199881Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Disconnect aspirator tube and in-vehicle temperature sensor.
  4. Disconnect instrument lower panel LH electrical connectors.
