Cylinder Head

WARNING: This page is about a different car, the 2006 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
CYLINDER HEAD SPECIFICATIONS

Unit: mm (in)

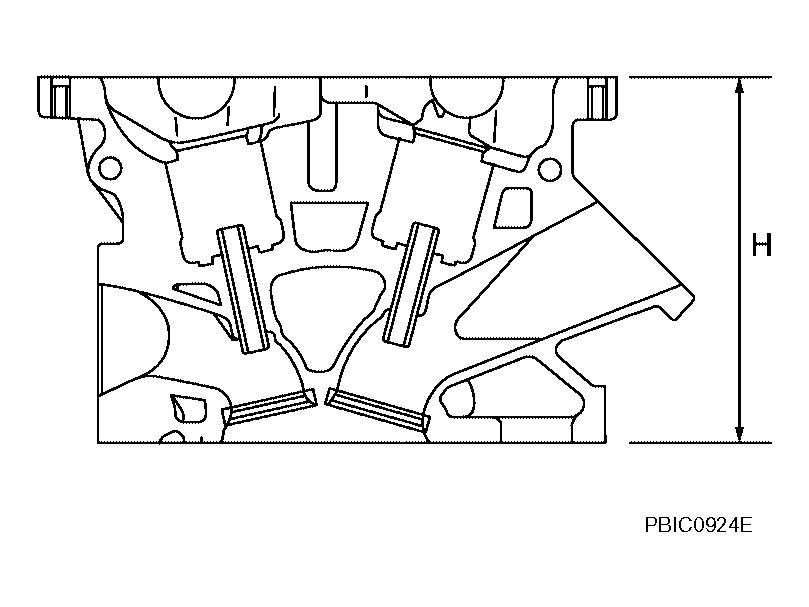

G04196236
  Standard Limit
Head surface distortion - 0.1 (0.004)
Nominal cylinder head height "H" 126.3 - 126.5 (4.972 - 4.980) -
