Removal and Installation: Removal

WARNING: This page is about a different car, the 2006 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the engine cover using power tool. Remove side engine covers.
  2. If removing rocker cover (RH), disconnect the mass air flow sensor electrical connector and remove the air cleaner to electric throttle control actuator tube and air cleaner lid. Refer to "REMOVAL AND INSTALLATION ".
  3. If removing rocker cover (R), remove the front cowl panel. Refer to "REMOVAL AND INSTALLATION ".
  4. If removing rocker cover (RH), remove the windshield wiper arms and motor assembly. Refer to "WIPER MOTOR AND LINKAGE ".
  5. If removing rocker cover (right bank), remove the intake manifold collector. Refer to "REMOVAL AND INSTALLATION ".
  6. If removing rocker cover (LH), disconnect the air fuel (A/F) ratio sensor.
  7. Remove the ignition coils. Refer to "REMOVAL AND INSTALLATION ".
  8. Position engine harness aside.
  9. Disconnect PCV hose.
  10. Remove dipstick.
  11. Remove rocker covers bolts in the order as shown.

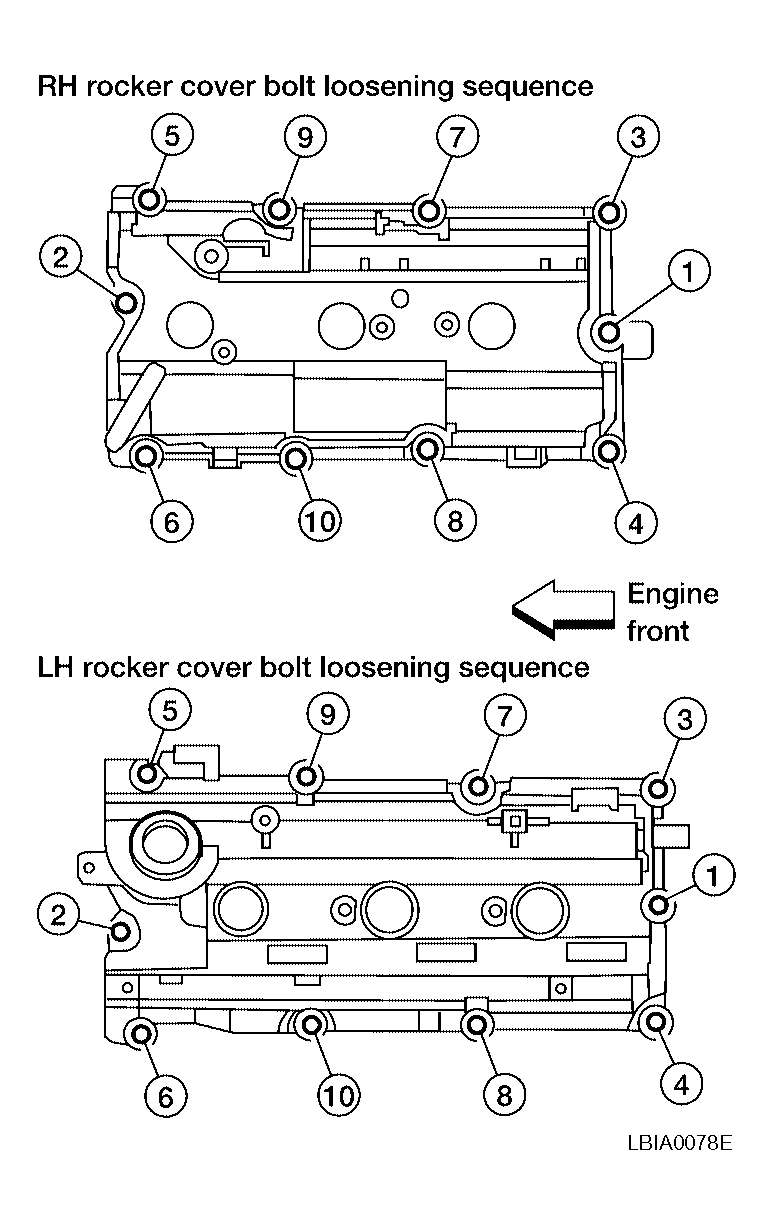

    Fig 1: Rocker Covers Bolts Loosening Sequence
    G04195866Courtesy of NISSAN MOTOR CO., U.S.A.
