Seat Memory Indicator Lamp Circuit Inspection

WARNING: This page is about a different car, the 2006 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK FUNCTION

    With CONSULT-II

    With "MEMORY SW INDCTR" in ACTIVE TEST, check operation.

    TEST ITEM DESCRIPTION

    Test item Description
    MEMORY SW INDCTR The memory switch indicator is lit by receiving the drive signal.

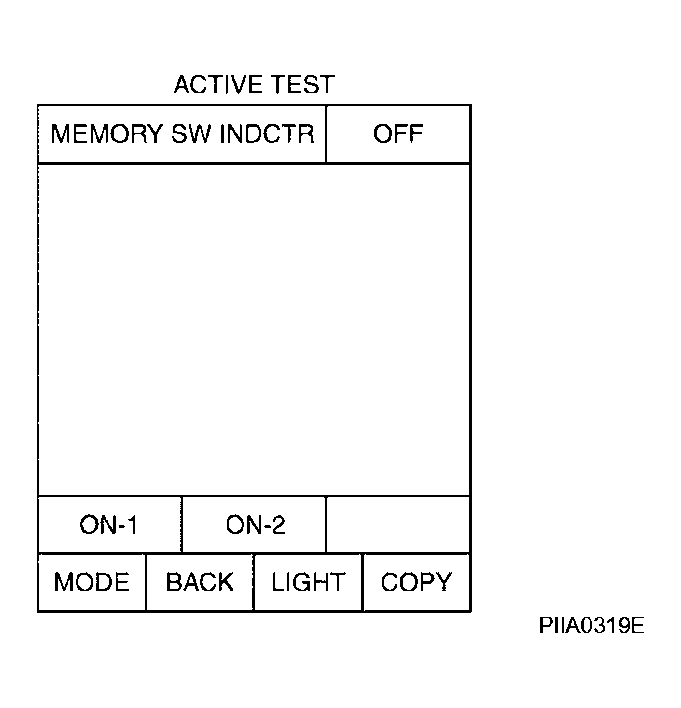

    Fig 1: CONSULT-II Screen Display - Active Test
    G04176323Courtesy of NISSAN MOTOR CO., U.S.A.

    Without CONSULT-II

    GO TO 2.

    OK or NG

    OK : Seat memory switch indicator lamp circuit is OK.

    NG : GO TO 2.

  2. CHECK SEAT MEMORY SWITCH POWER SUPPLY CIRCUIT
    1. Turn ignition switch OFF.
    2. Disconnect seat memory switch.
    3. Turn ignition switch ON.
    4. Check voltage between seat memory switch connector D5 terminal 5 and ground.

      5 - Ground : Battery voltage

    OK or NG

    OK : GO TO 3.

    NG : Repair or replace harness.

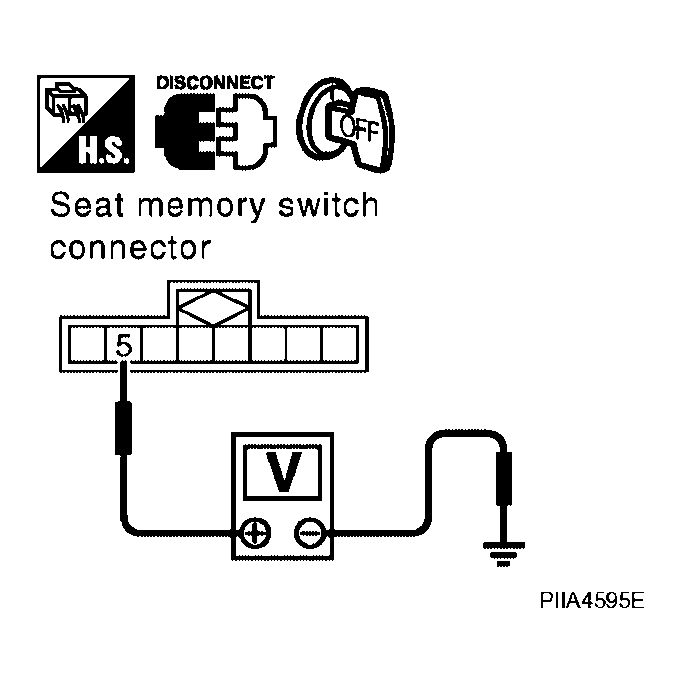

    Fig 2: Checking Voltage Between Seat Memory Switch Connector D5 Terminal 5 And Ground
    G04176324Courtesy of NISSAN MOTOR CO., U.S.A.
  3. CHECK SEAT MEMORY INDICATOR CIRCUIT HARNESS CONTINUITY
    1. Turn ignition switch OFF.
    2. Disconnect automatic drive positioner control unit.
    3. Check continuity between automatic drive positioner control unit connector M33 terminals 12, 13 and seat memory switch connector D5 terminals 6, 7.

      12 - 6 : Continuity should exist.

      13 - 7 : Continuity should exist.

    4. Check continuity between automatic drive positioner control unit connector M33 terminals 12, 13 and ground.

      12 - Ground : Continuity should not exist.

      13 - Ground : Continuity should not exist.

    OK or NG

    OK : GO TO 4.

    NG : Repair or replace harness.

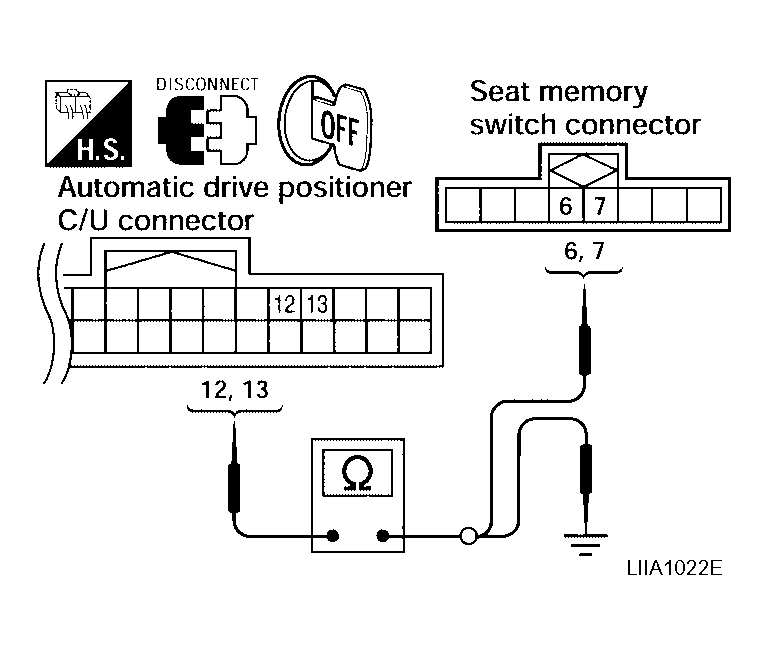

    Fig 3: Checking Seat Memory Indicator Circuit Harness Continuity
    G04176325Courtesy of NISSAN MOTOR CO., U.S.A.
  4. CHECK SEAT MEMORY SWITCH INDICATOR SIGNAL
    1. Connect seat memory switch.
    2. Check voltage between automatic drive positioner control unit connector M33 terminals 12, 13 and ground.

      12 - Ground : Battery voltage

      13 - Ground : Battery voltage

    OK or NG

    OK : Replace automatic drive positioner control unit.

    NG : Replace seat memory switch.

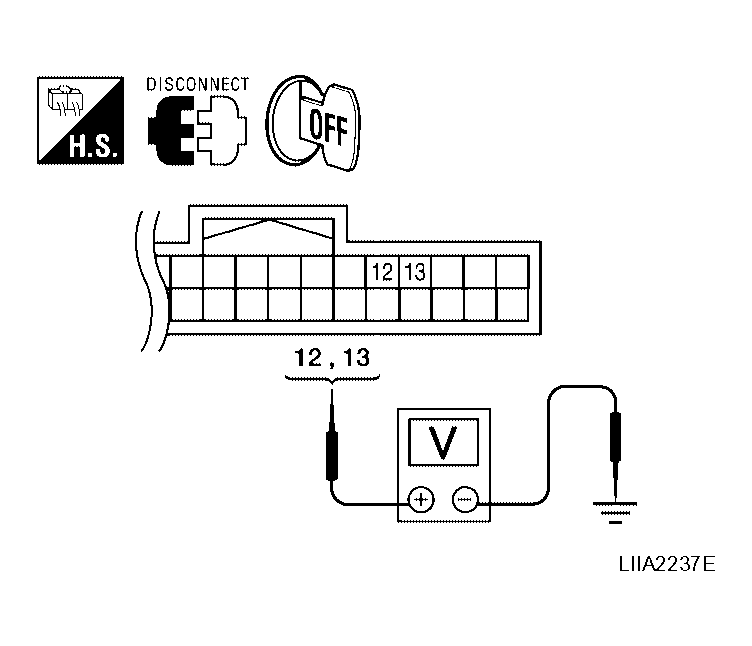

    Fig 4: Checking Voltage Between Automatic Drive Positioner Control Unit Connector M33 Terminals 12, 13 And Ground
    G04176326Courtesy of NISSAN MOTOR CO., U.S.A.
