Removal and Installation: Removal

WARNING: This page is about a different car, the 2006 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

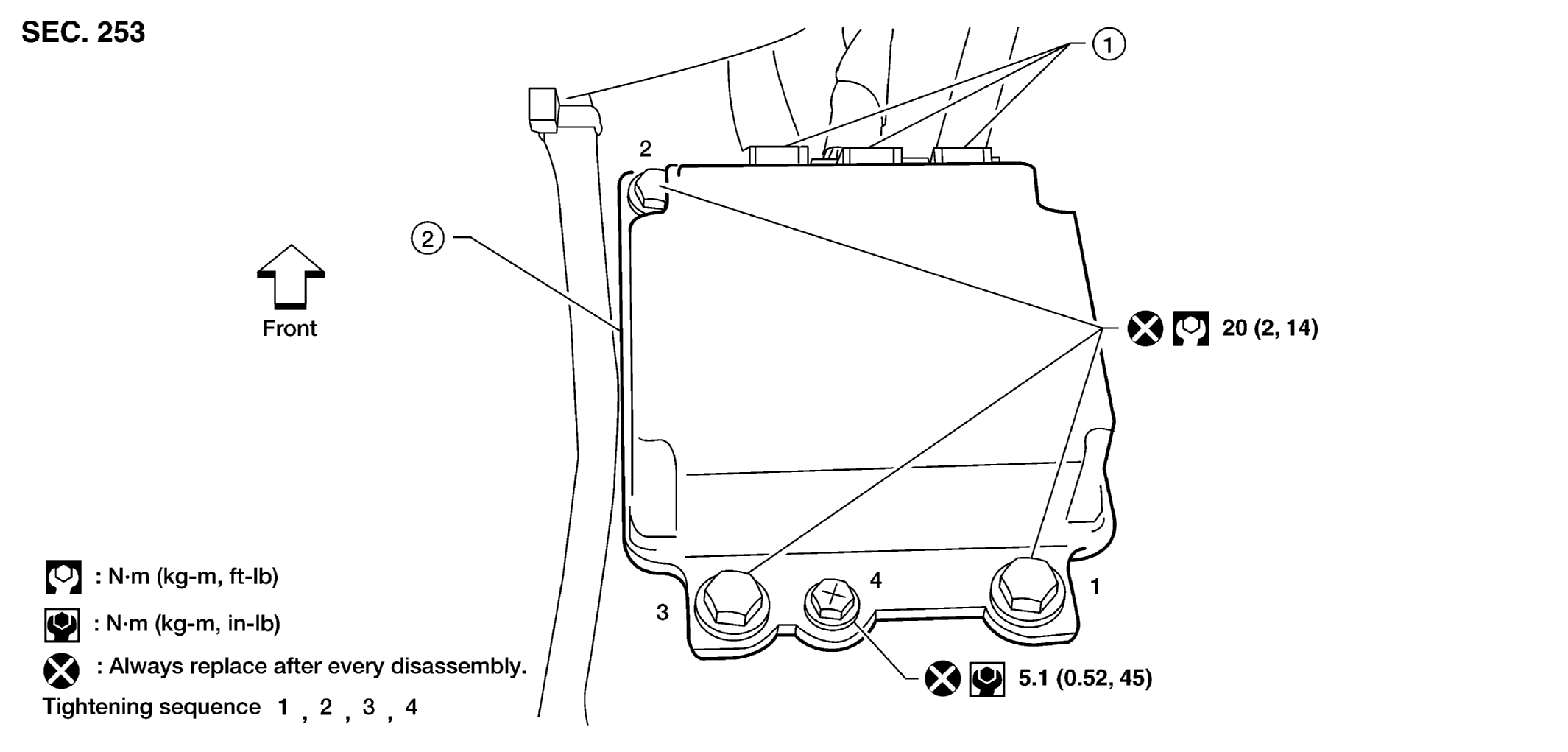

Fig 1: Diagnosis Sensor Unit With Torque Specifications
G04175739Courtesy of NISSAN MOTOR CO., U.S.A.
CAUTION:
  • Before servicing the SRS, turn the ignition switch off, disconnect both battery cables and wait at least 3 minutes.
  1. Disconnect the negative and positive battery cables, then wait at least 3 minutes.
  2. Disconnect the connectors for each air bag module and seat belt pre-tensioner.
  3. Remove center console. Refer to "INSTRUMENT PANEL ASSEMBLY "
  4. Disconnect diagnosis sensor unit connectors.
  5. Remove bolts from the diagnosis sensor unit.
CAUTION:
  • Do not use old bolts; replace with new bolts.
  • Check diagnosis sensor unit bracket to ensure it is free of deformities, dents, cracks or rust. If it shows any visible signs of damage, replace with new one.
  • Replace diagnosis sensor unit if it has been dropped or sustained an impact.
