Final Drive Side

WARNING: This page is about a different car, the 2006 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
  1. Wrap the serrated part of the shaft with tape. Install the boot band and boot to shaft.
    NOTE: Discard the old boot band and boot and use a new one for assembly.
  2. Remove the tape wound around the serrated part of the shaft.

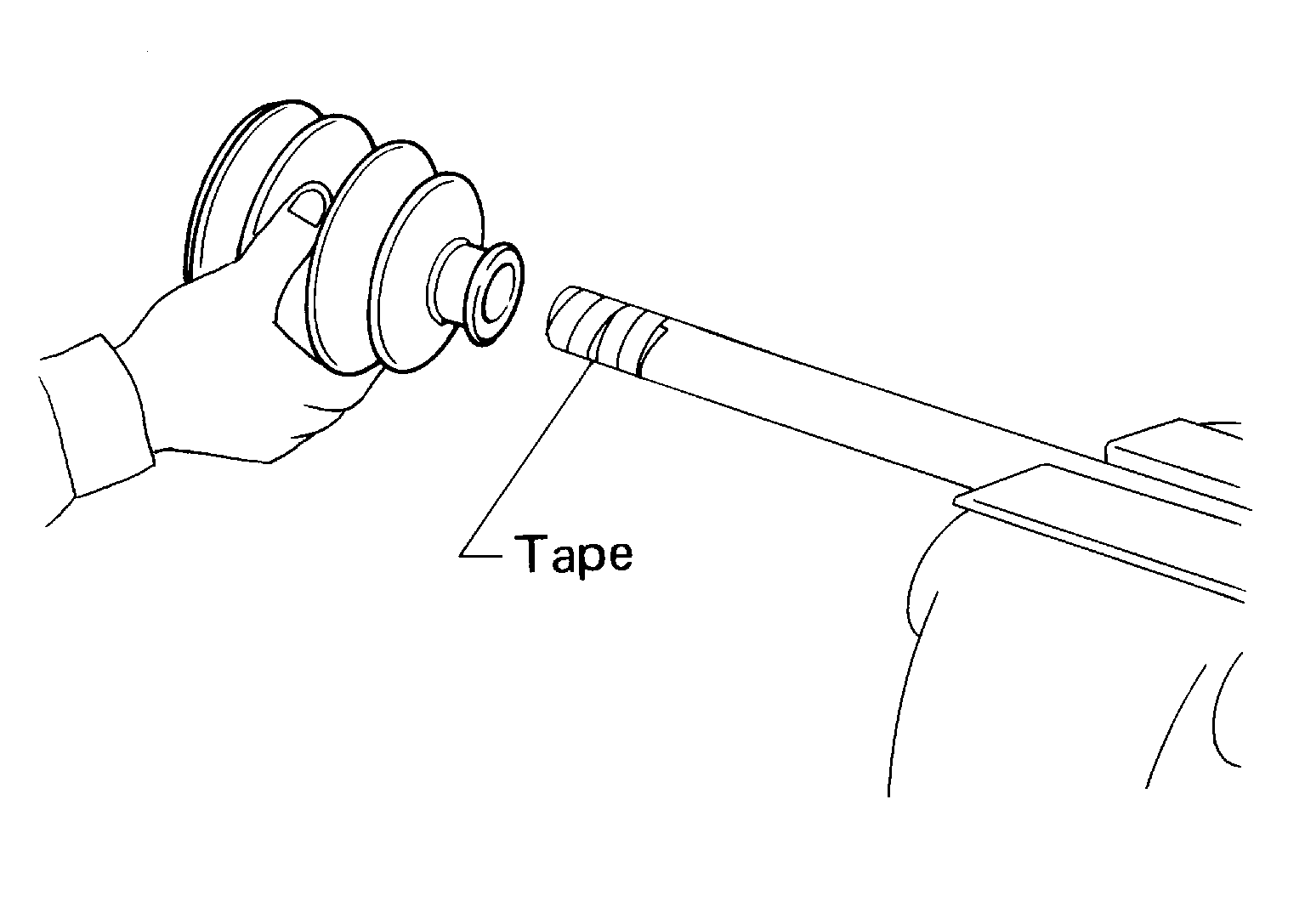

    Fig 1: Installing Boot On Taped Axle Shaft
    G04076444Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Install the ball cage, steel ball, and inner race assembly on the shaft, and secure them using the snap ring.
    NOTE: Discard the old snap ring and use a new one for assembly.
    Fig 2: Installing Ball Cage
    G04175268Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Insert the specified quantity of Genuine NISSAN Grease or equivalent, into the housing (indicated by * marks), and install it onto shaft. Refer to "RECOMMENDED FLUIDS AND LUBRICANTS "

    Grease capacity : 120 - 140 g (4.23 - 4.94 oz)

    Fig 3: Inserting Specified Quantity Of Genuine Nissan Grease
    G04175269Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Install the stopper ring onto the housing.
    CAUTION:
    • Do not reuse stopper rings.
    • Make sure that housing and stopper ring are fully engaged.
  6. Install the boot securely into the grooves (indicated by* marks) as shown.
    CAUTION: If there is grease on boot mounting surfaces (indicated by* marks) of shaft and housing, boot may come off. Remove all grease from surfaces.
  7. Check that the boot installation length "L" is the length indicated below. Insert a flat-tip screwdriver or similar tool into the large side of boot. Bleed air from boot to prevent boot deformation.

    Boot installation length "L" : 163.9 - 164.3 mm (6.45 - 6.47 in)

    Fig 4: Installing Boot Securely Into Grooves
    G04175270Courtesy of NISSAN MOTOR CO., U.S.A.
    CAUTION:
    • The boot may break if the boot installation length is less than the specified value.
    • Do not to touch the tip of the screwdriver to the inside of the boot.
  8. Secure the big and small ends of the boot with the new boot bands as shown.
    NOTE: Discard not reuse boot bands.

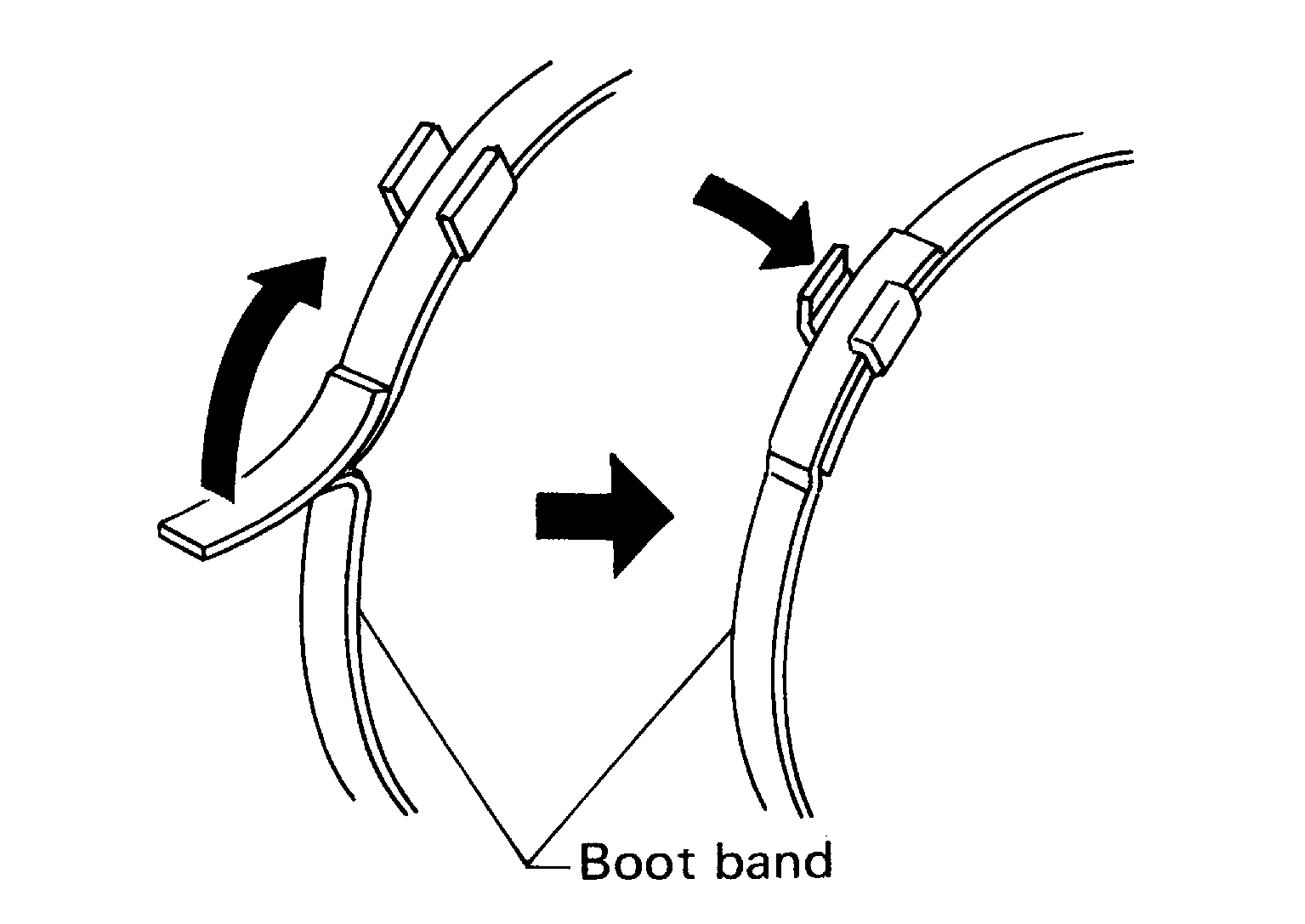

    Fig 5: Installing Boot Band
    G04076449Courtesy of NISSAN MOTOR CO., U.S.A.
  9. Secure housing and shaft and then make sure that they are in the correct position when rotating boot. Use a new boot band if the boot band needs to be loosened to reposition the boot.
  10. Install circlip and dust cover to housing.
    NOTE: Do not reuse circlip and dust cover.
