Lower Instrument Panel LH: Removal

WARNING: This page is about a different car, the 2006 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove front pillar lower finisher. Refer to "FRONT PILLAR LOWER FINISHER "
  2. Remove lower instrument panel LH, using power tool.
  3. Pull rearward to release lower instrument panel LH.
  4. Disconnect lower instrument panel LH harness connectors.

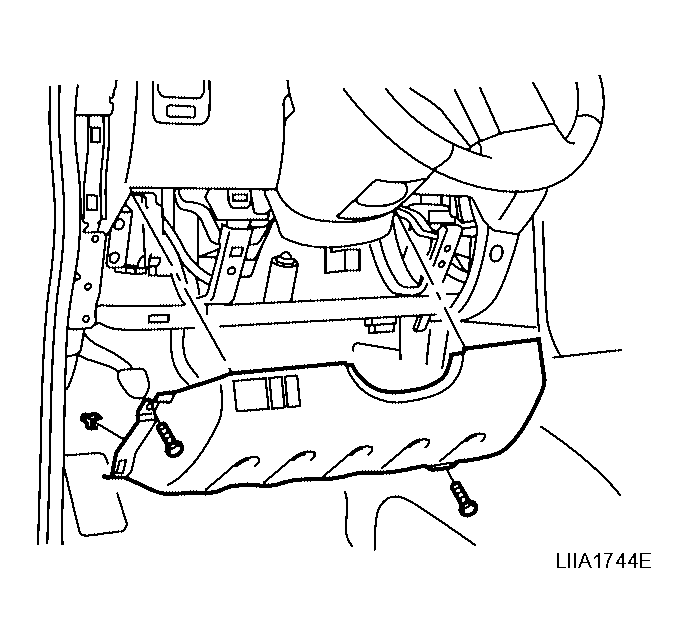

    Fig 1: Removing Lower Instrument Panel
    G04176196Courtesy of NISSAN MOTOR CO., U.S.A.
