Runout Inspection

WARNING: This page is about a different car, the 2006 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

Using wheel nuts, fix disc rotor to wheel hub in two or more positions.
Inspect runout using a dial gauge. [Measured at 10 mm (0.39 in) inside the disc edge.]
Runout limit (on vehicle) : 0.05 mm (0.0020 in)

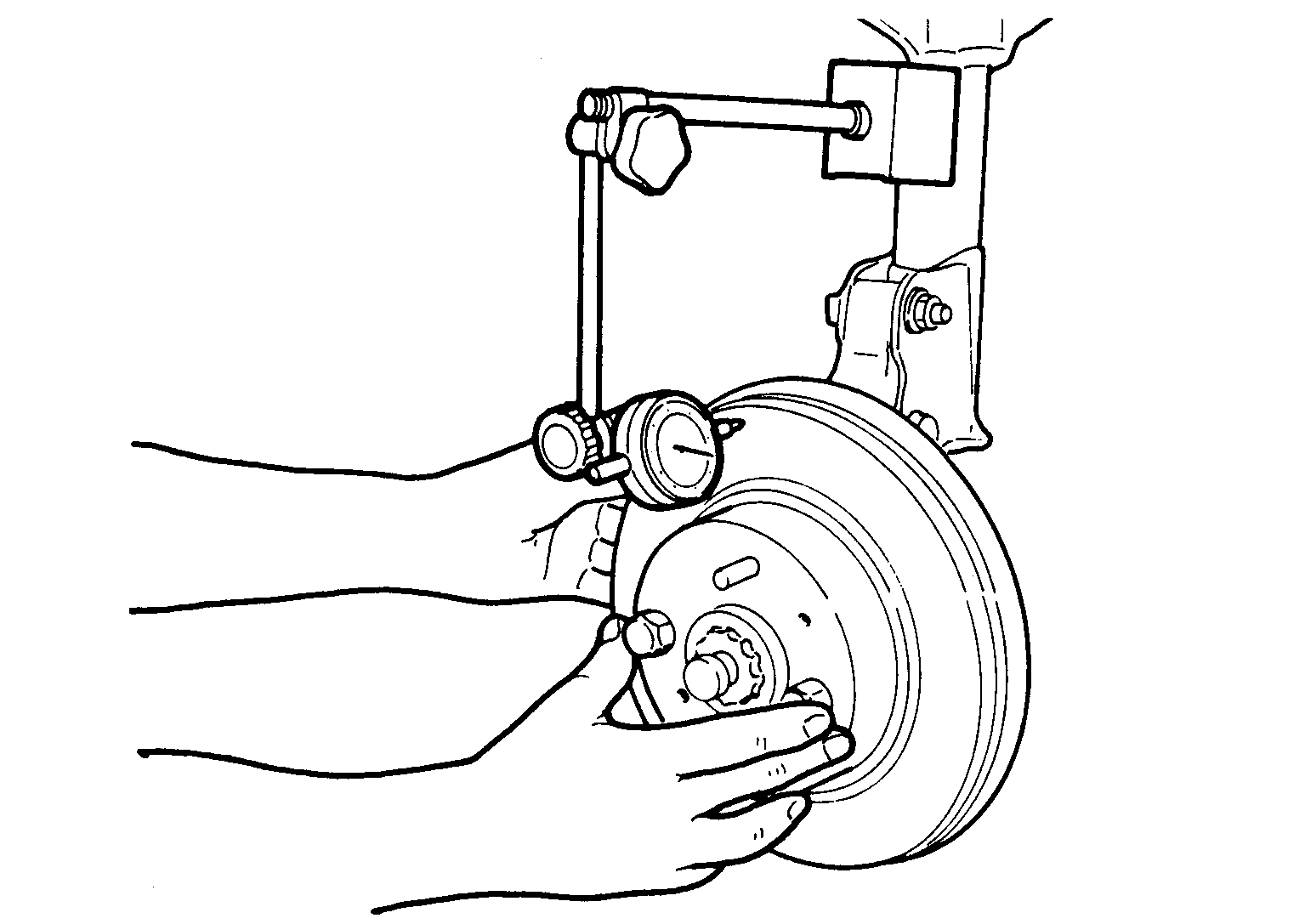

Fig 1: Checking Rotor Runout
Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: Make sure that wheel bearing axial end play is within the specifications before measuring runout. Refer to "WHEEL BEARING INSPECTION ".
If runout is outside the limit, find the minimum runout point by shifting mounting positions of disc rotor and wheel hub by one hole.
If runout still out of specification, turn rotor with on-car brake lathe.
