Operation Procedure

WARNING: This page is about a different car, the 2006 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
  1. Perform , "CONSULT-II SETTING PROCEDURE "
  2. Touch "CAN DIAG SUPPORT MNTR". Refer to "CAN DIAGNOSTIC SUPPORT MONITOR "

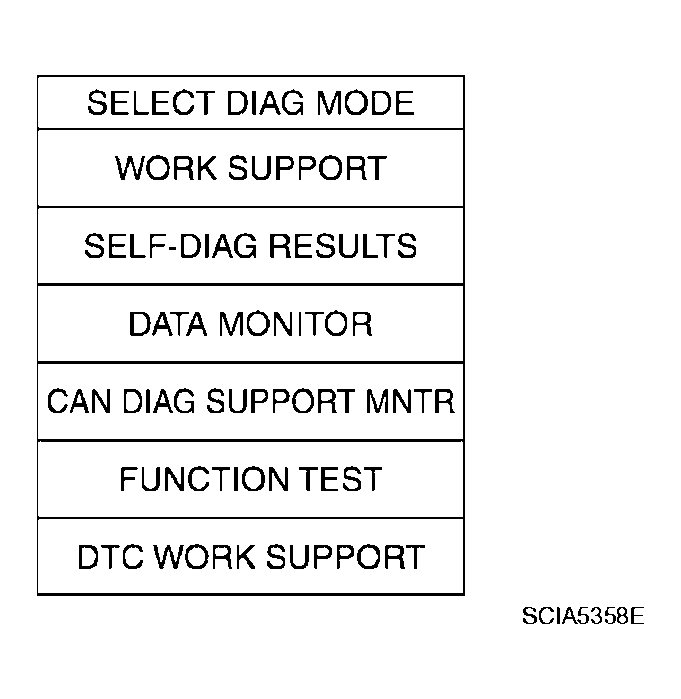

    Fig 1: CONSULT-II Display - CAN DIAG Support MNTR
    G04173978Courtesy of NISSAN MOTOR CO., U.S.A.
