Checking Disc Brake: Pad

WARNING: This page is about a different car, the 2006 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

Inspect the thickness of pad through cylinder body inspection hole. Use a scale for inspection if necessary.

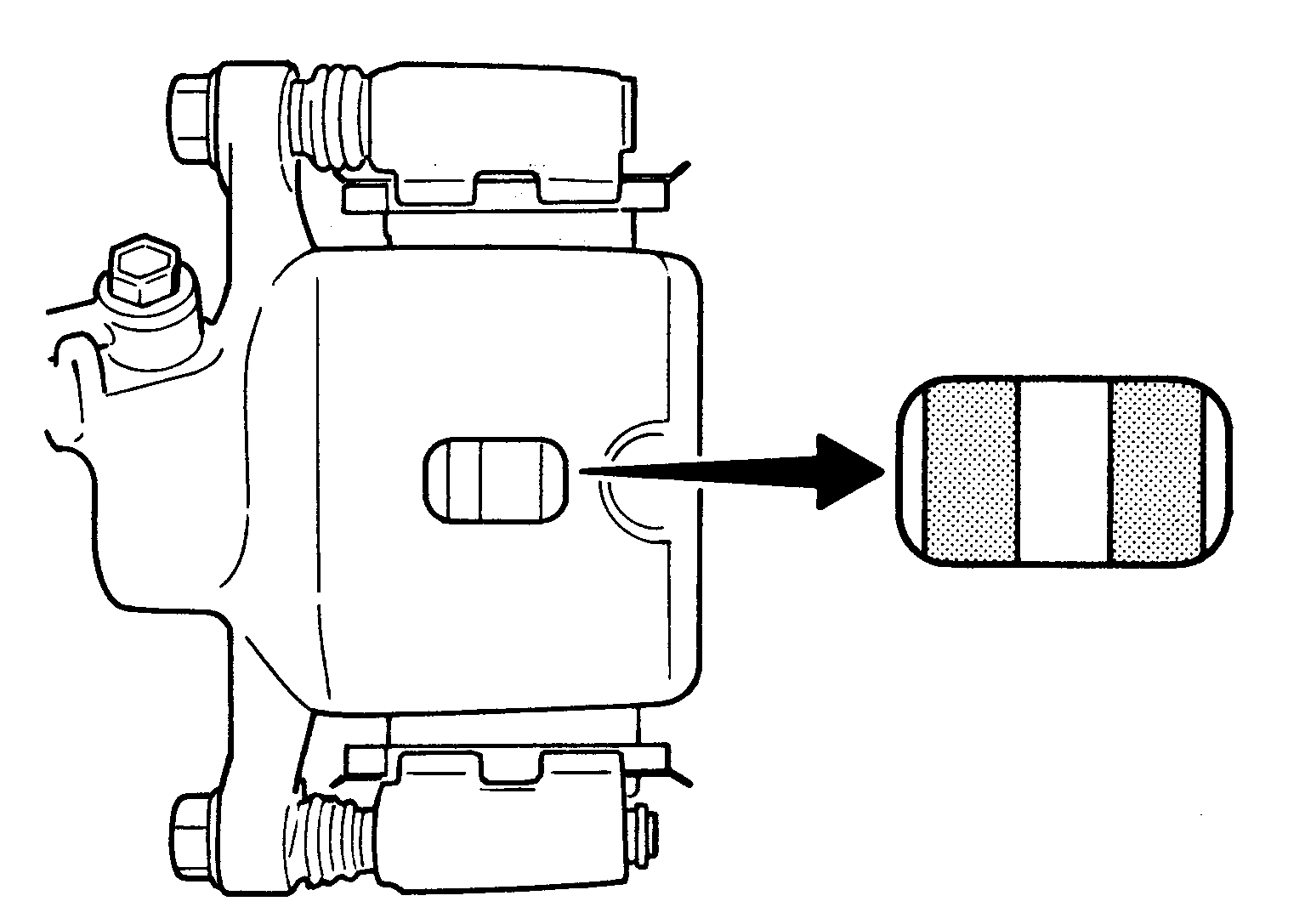

Fig 1: Inspecting Pad Thickness

Courtesy of NISSAN MOTOR CO., U.S.A.

Standard thickness : Refer to " FRONT DISC BRAKE ", " REAR DISC BRAKE "

Repair limit thickness : Refer to " FRONT DISC BRAKE ", " REAR DISC BRAKE "
