Fluid Leakage And Fluid Level

WARNING: This page is about a different car, the 2006 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Make sure that fluid is not leaking from the transfer assembly or around it.
  2. Check fluid level from the filler plug hole as shown.

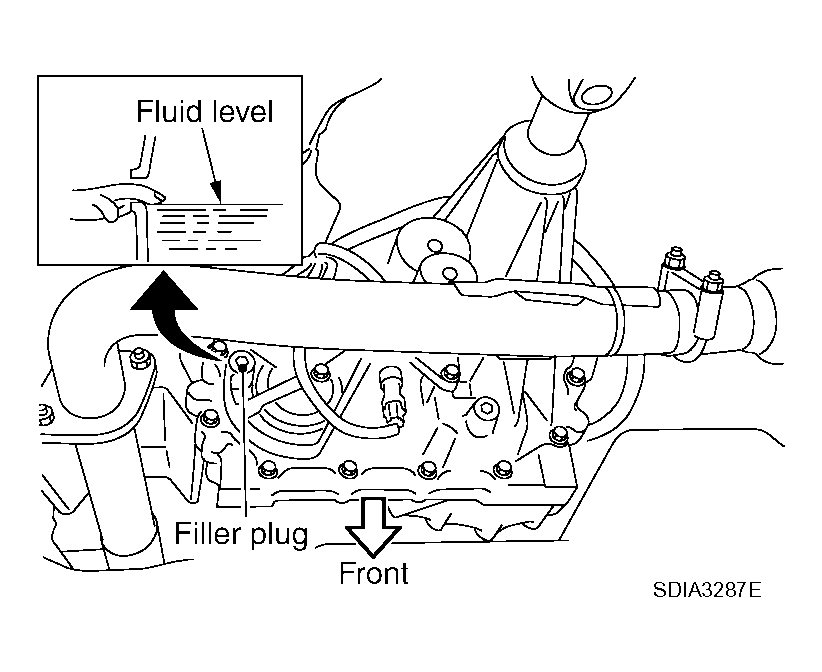

    Fig 1: Identifying Fluid Level And Filler Plug
    G04186325Courtesy of NISSAN MOTOR CO., U.S.A.
    CAUTION: Do not start engine while checking fluid level.
  3. Install the filler plug with a new gasket to the transfer. Tighten to specification.

    Filler plug: Refer to " COMPONENTS  ".

    CAUTION: Do not reuse gasket.
