Removal and Installation: Installation

WARNING: This page is about a different car, the 2006 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

Installation is in the reverse order of removal.

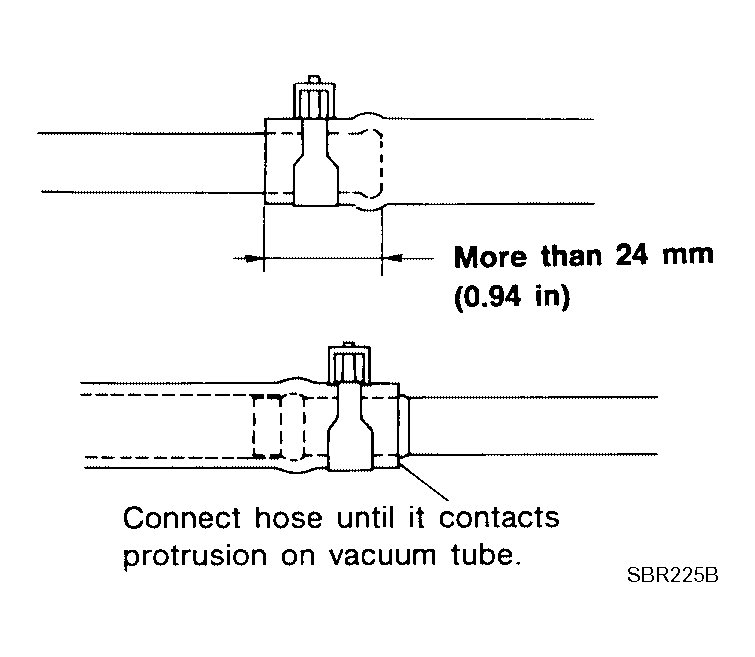

Fig 1: Connecting Vacuum Hose
Courtesy of NISSAN MOTOR CO., U.S.A.
CAUTION:
- Insert vacuum hose for at least 24 mm (0.94 in).
- Do not use lubricating oil during assembly.
