Disassembly and Assembly of Brake Caliper: Disassembly

WARNING: This page is about a different car, the 2006 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove pads from cylinder body.
  2. Remove sliding sleeve and boot from cylinder body.
  3. Place a wooden block as shown, and blow air from union bolt mounting hole to remove piston and piston boot.
    CAUTION: Do not get your fingers caught in piston.

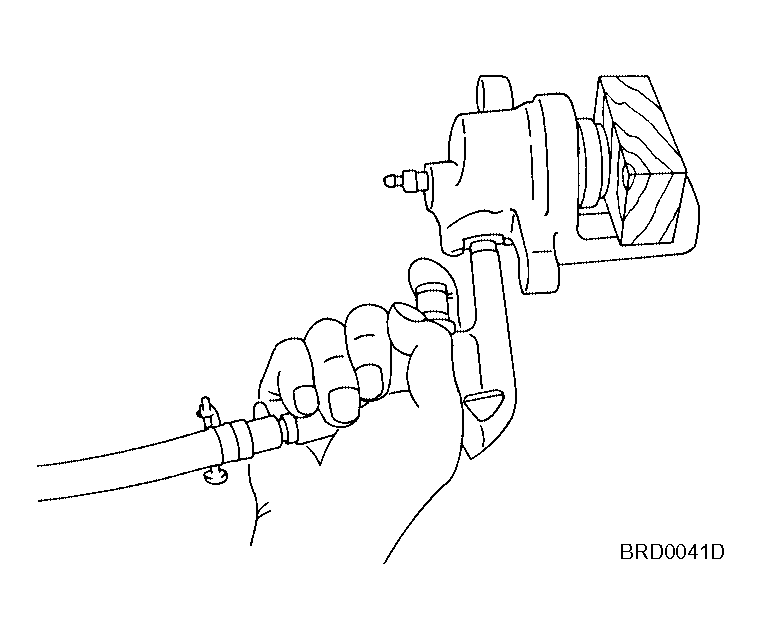

    Fig 1: Placing Wooden Block And Blowing Air Into Union Bolt Hole
    G04187121Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Using a flat-bladed screwdriver, remove piston seal from cylinder body.
    CAUTION: Be careful not to damage cylinder inner wall.

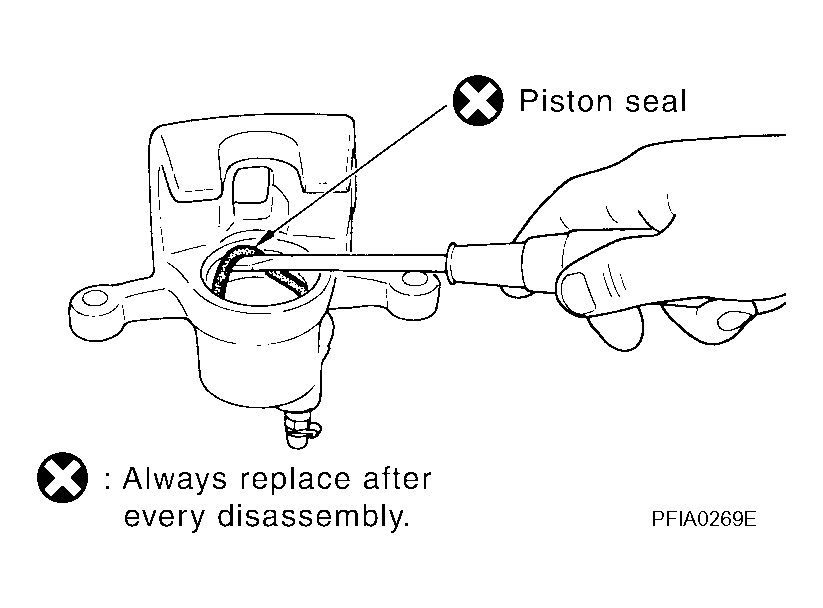

    Fig 2: Removing Piston Seal From Cylinder Body
    G04187122Courtesy of NISSAN MOTOR CO., U.S.A.
