Removal and Installation of Brake Pad: Installation

WARNING: This page is about a different car, the 2006 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

Push pistons in so that pad is firmly installed and mount cylinder body to torque member.
CAUTION: By pushing in piston, brake fluid returns to master cylinder reservoir tank. Watch the level of the surface of reservoir tank.

NOTE: Using a commercially available disc brake piston tool, makes it easier to push in piston.
Attach pad retainers, pads and shims to torque member.
- Apply Molykote M-77 grease to pad retainer where brake pad contacts and between pad and shim.

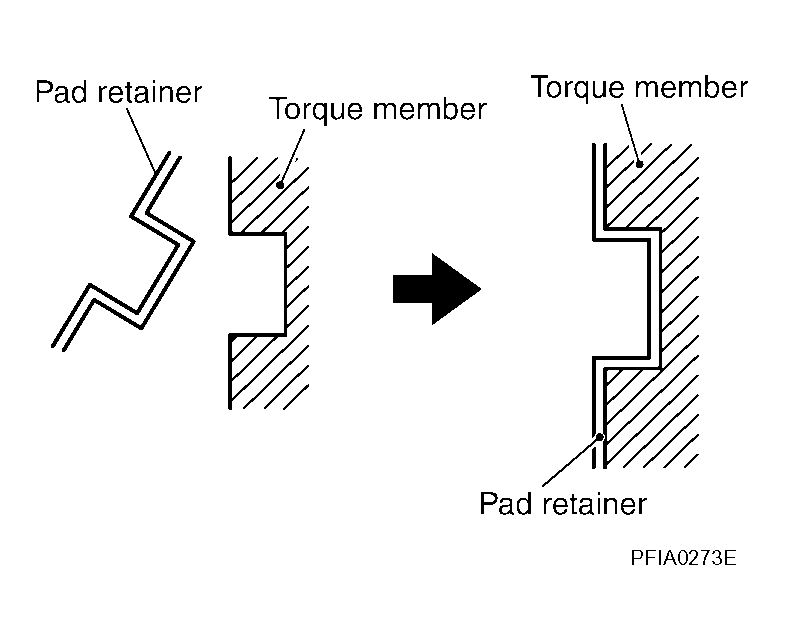

  Fig 1: Attaching Pad Retainer To Torque Member
  Courtesy of NISSAN MOTOR CO., U.S.A.
  CAUTION:
  - When attaching pad retainer, attach it firmly so that it is seated fully in the torque member as shown.
  - Do not get grease on the brake rotor friction surface.
Install lower sliding pin bolt and tighten it to the specified torque. Refer to "COMPONENTS ".
Check brake for drag.
Install tires to the vehicle. Refer to "ROTATION ".
