Removal and Installation: Removal

WARNING: This page is about a different car, the 2006 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Before removal and installation the accelerator and brake pedals must be in the forwardmost position (closest to the floor). This is to align the base position of the accelerator and brake pedals (adjustable type only).
Do not disassemble the brake pedal adjusting mechanism (adjustable type only).
Avoid damage from dropping the brake pedal assembly during handling.
Keep the brake pedal assembly away from water.

Remove the lower instrument panel LH. Refer to "LOWER INSTRUMENT PANEL LH ".
Remove the stop lamp switch and ASCD cancel switch from the pedal assembly by turning 45° counterclockwise.
On adjustable pedal assembly, disconnect the adjustable brake pedal cable from the adjustable pedal electric motor.

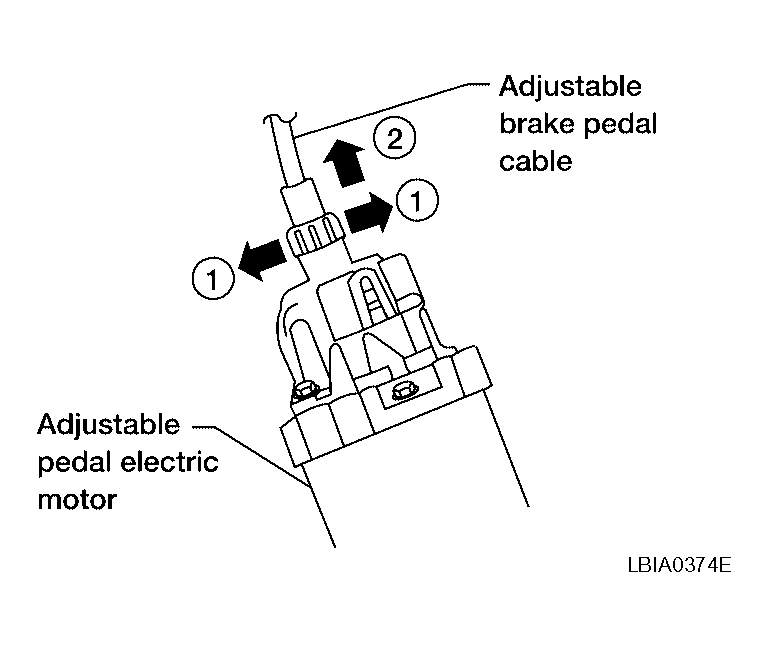

- Unlock (1) then pull (2) the adjustable brake pedal cable to disconnect it from the adjustable pedal electric motor as shown.

  Fig 1: Disconnecting Adjustable Brake Pedal Cable
  Courtesy of NISSAN MOTOR CO., U.S.A.
Remove snap pin and clevis pin from the clevis of brake booster.
Remove brake pedal assembly nuts and the pedal assembly.
- Temporarily install nuts by hand to support booster.
  WARNING: Do not deform the brake tube.
  CAUTION:
  - Before removal and installation the accelerator and brake pedals must be in the forwardmost position (closest to the floor). This is to align the base position of the accelerator and brake pedals (adjustable type only).
  - Do not disassemble the brake pedal adjusting mechanism (adjustable type only).
  - Avoid damage from dropping the brake pedal assembly during handling.
  - Keep the brake pedal assembly away from water.
