With ABS or ABLS: Installation

WARNING: This page is about a different car, the 2006 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Loosen lock nut to adjust input rod length so that the length "B", as shown, satisfies the specified value.

    Length "B": 151 mm (5.94 in)

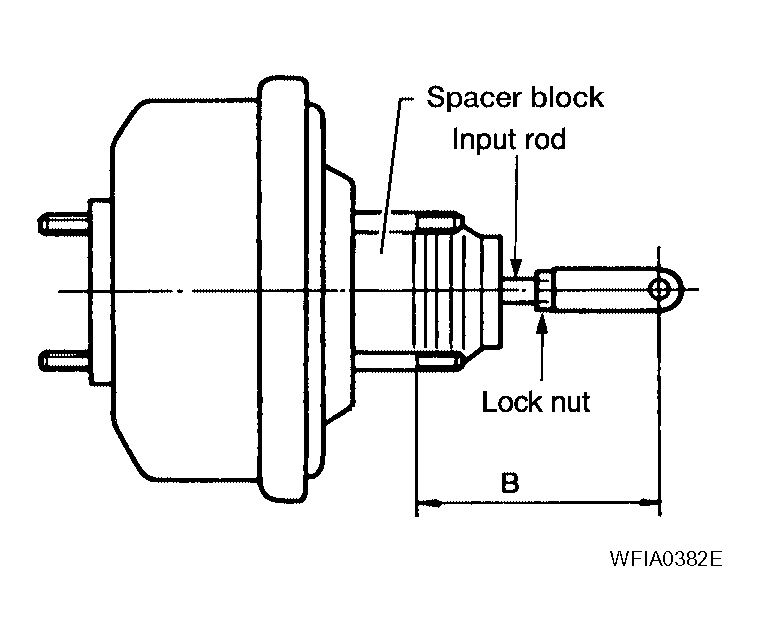

    Fig 1: Loosening Lock Nut
    G04187100Courtesy of NISSAN MOTOR CO., U.S.A.
  2. After adjusting "B", temporarily tighten lock nut and install booster assembly to the vehicle.
    • Install a gaskets and spacer block between booster assembly and the dash panel.
  3. Connect brake pedal with clevis of input rod.
  4. Install pedal bracket nuts and tighten them to the specified torque.
  5. Install brake piping from brake master cylinder to ABS actuator and electric unit (control unit). Refer to "HYDRAULIC CIRCUIT ".
  6. Connect vacuum hose to brake booster.
  7. Install master cylinder to booster assembly. Refer to "INSTALLATION ".
  8. Adjust the height and play of brake pedal. Refer to "ADJUSTMENT ".
  9. Tighten lock nut of input rod to the specified torque.
  10. Install engine air duct assembly. Refer to "REMOVAL AND INSTALLATION ".
  11. Install engine room cover. Refer to "REMOVAL AND INSTALLATION ".
  12. Refill brake fluid and bleed air. Refer to "BLEEDING BRAKE SYSTEM ".
    CAUTION:
