Removal and Installation: Removal

WARNING: This page is about a different car, the 2006 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery terminal.
  2. Remove the fan shroud. Refer to "REMOVAL AND INSTALLATION ".
  3. Remove the drive belt. Refer to "REMOVAL AND INSTALLATION ".
  4. Remove lower bracket, using power tools.
  5. Remove the generator upper bolt, using power tools.
  6. Remove/disconnect the generator harness connectors.
  7. Remove the generator.

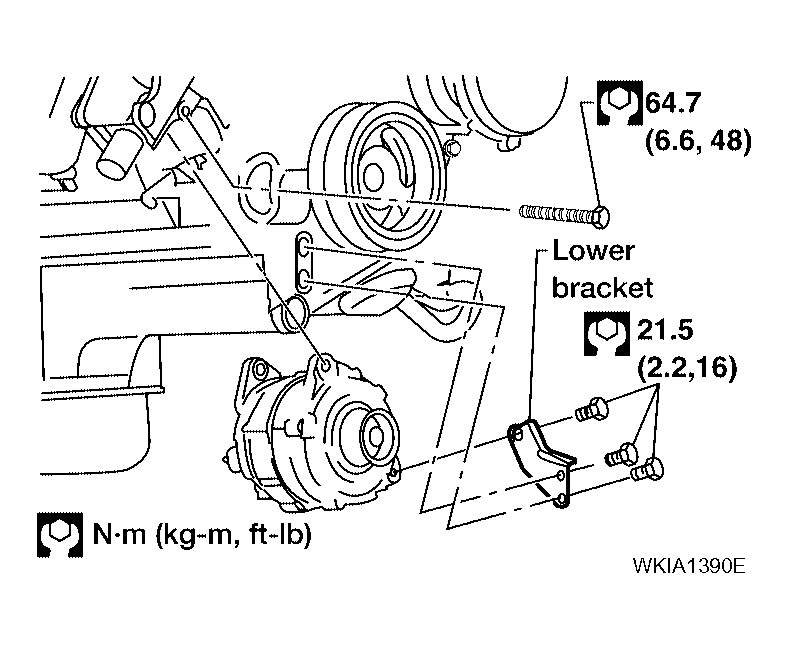

    Fig 1: Generator With Torque Specifications
    G04188505Courtesy of NISSAN MOTOR CO., U.S.A.
