Removal and Installation (4WD): Installation

Installation of the remaining components is in the reverse order of removal, while paying attention to the following:

• When installing transmission to the engine, attach the bolts as shown.

  Transmission to engine bolts: 113 N.m (12 kg-m, 83 ft-lb)

  NOTE: *: No.2 bolt also secures air breather vent.
  CAUTION:

  • When replacing an engine or transmission you must make sure the dowels are installed correctly during reassembly.
  • Improper alignment caused by missing dowels may cause vibration, oil leaks or breakage of drivetrain components.

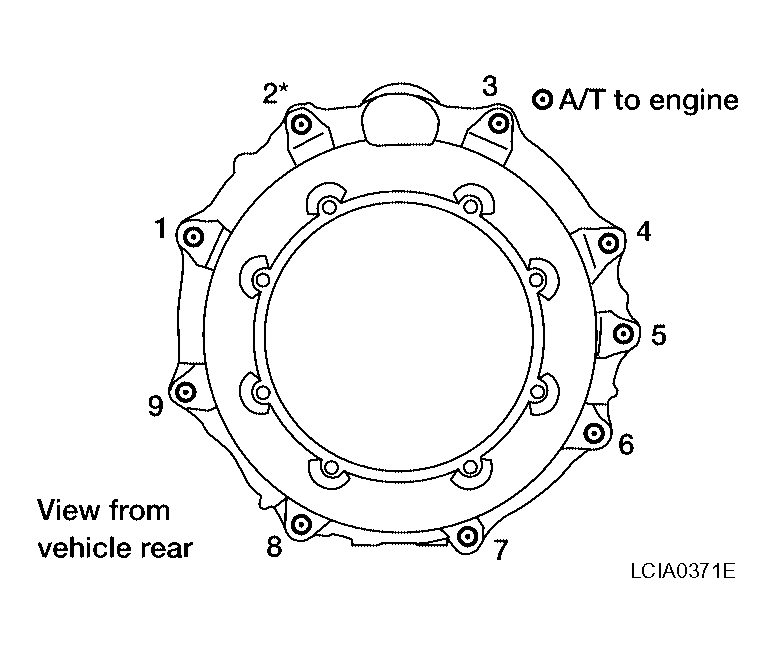

    Fig 1: Tightening Sequence For Transmission To Engine Bolts

    Courtesy of NISSAN MOTOR CO., U.S.A.
• Align the positions of bolts for drive plate with those of the torque converter, and temporarily tighten the bolts. Then tighten the bolts with the specified torque.
  CAUTION:

  • When turning crankshaft, turn it clockwise as viewed from the front of the engine.
  • After converter is installed to drive plate, rotate crankshaft several turns and check to be sure that transmission rotates freely without binding.
  Fig 2: Locating Torque Converter-To-Drive Plate Bolts
  Courtesy of NISSAN MOTOR CO., U.S.A.
  • Install crankshaft position sensor (POS).
  • After completing installation, check fluid leakage, fluid level, and the positions of A/T. Refer to "CHECKING A/T FLUID ", "CHECKING OF A/T POSITION " and "ADJUSTMENT OF A/T POSITION ".
