Diagnostic Procedure

With CONSULT-II

1. Start engine.
2. Select "SELECTION FROM MENU" in "DATA MONITOR" mode for "A/T" with CONSULT-II.

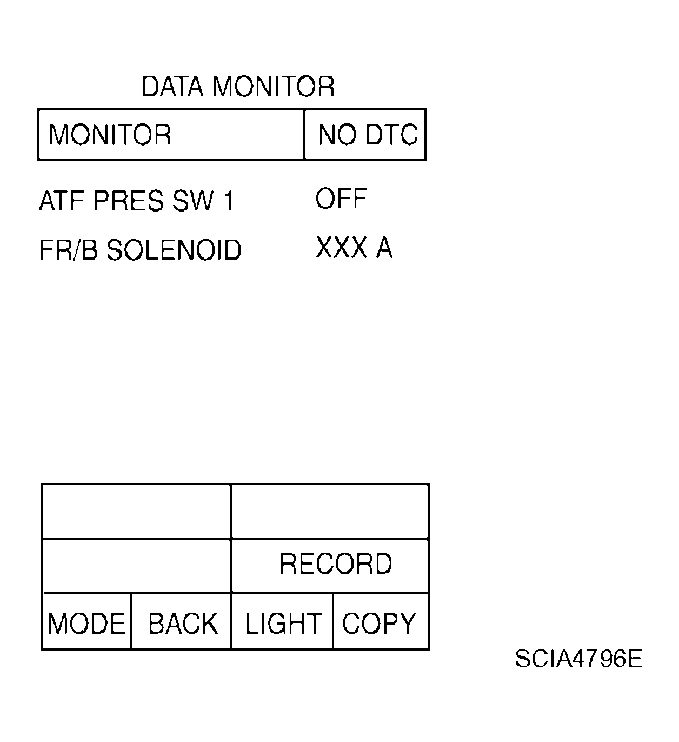

Fig 1: CONSULT-II Display - DATA MONITOR
Courtesy of NISSAN MOTOR CO., U.S.A.
3. Drive vehicle in the "D" position (3rd => 4th gear), and confirm the ON/OFF actuation of the "ATF PRES SW 1" and electrical current value of "FR/B SOLENOID".
   ITEM CONDITION SPECIFICATION



   Item name	Condition	Display value (Approx.)
   FR/B SOLENOID	Front brake engaged. Refer to CLUTCH AND BAND CHART (FLOOR SHIFT MODELS)  and CLUTCH AND BAND CHART (COLUMN SHIFT MODELS)  .	0.6 - 0.8 A
   	Front brake disengaged. Refer to CLUTCH AND BAND CHART (FLOOR SHIFT MODELS)  and CLUTCH AND BAND CHART (COLUMN SHIFT MODELS)  .	0 - 0.05 A
   ATF PRES SW 1	Front brake engaged. Refer to CLUTCH AND BAND CHART (FLOOR SHIFT MODELS)  and CLUTCH AND BAND CHART (COLUMN SHIFT MODELS)  .	ON
   	Front brake disengaged. Refer to CLUTCH AND BAND CHART (FLOOR SHIFT MODELS)  and CLUTCH AND BAND CHART (COLUMN SHIFT MODELS)  .	OFF

OK or NG

OK: GO TO  4.

NG: GO TO 2.

Check TCM power supply and ground circuit. Refer to "MAIN POWER SUPPLY AND GROUND CIRCUIT ".

OK or NG

OK: GO TO 3.

NG: Repair or replace damaged parts.

Check the following items:

• The A/T assembly harness connector pin terminals for damage or loose connection with harness connector.

OK or NG

OK: Replace the control valve with TCM. Refer to "CONTROL VALVE WITH TCM AND A/T FLUID TEMPERATURE SENSOR 2 ".

NG: Repair or replace damaged parts.

Perform "DTC Confirmation Procedure".

• Refer to "DTC CONFIRMATION PROCEDURE ".

OK or NG

OK: INSPECTION END

NG: GO TO  2.
