Diagnostic Procedure

WARNING: This page is about a different car, the 2006 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK INPUT SIGNAL

    With CONSULT-II

    1. Turn ignition switch ON.
    2. Select "MAIN SIGNALS" in "DATA MONITOR" mode for "A/T" with CONSULT-II.

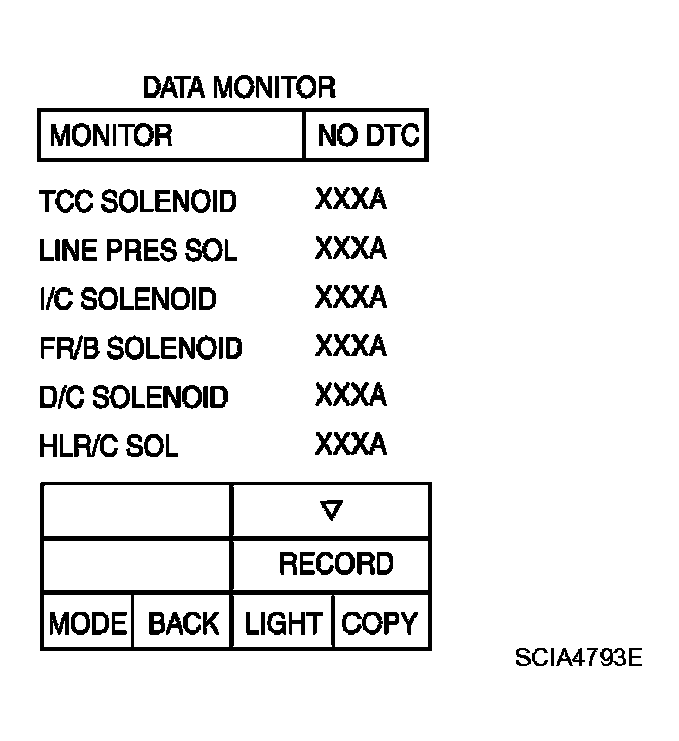

      3. Fig 1: Consult-II DATA MONITOR Display Screen
      G04075493Courtesy of NISSAN MOTOR CO., U.S.A.
    3. Start the engine.
    4. Read out the value of "TCC SOLENOID" while driving.
      ITEM CONDITION SPECIFICATION

      Item name Condition Display value (Approx.)
      TCC SOLENOID When performing slip lock-up 0.2 - 0.4 A
      When performing lock-up 0.4 - 0.6 A

    OK or NG

    OK: GO TO  4.

    NG: GO TO 2.

  2. CHECK TCM POWER SUPPLY AND GROUND CIRCUIT

    Check TCM power supply and ground circuit. Refer to "MAIN POWER SUPPLY AND GROUND CIRCUIT ".

    OK or NG

    OK: GO TO 3.

    NG: Repair or replace damaged parts.

  3. DETECT MALFUNCTIONING ITEM

    Check the following items:

    • The A/T assembly harness connector pin terminals for damage or loose connection with harness connector.

    OK or NG

    OK: Replace the control valve with TCM. Refer to "CONTROL VALVE WITH TCM AND A/T FLUID TEMPERATURE SENSOR 2 ".

    NG: Repair or replace damaged parts.

  4. CHECK DTC

    Perform "DTC Confirmation Procedure".

    OK or NG

    OK: INSPECTION END

    NG: GO TO  2.
