A/T Fluid Temperature Sensor 2

WARNING: This page is about a different car, the 2006 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove A/T fluid temperature sensor 2. Refer to "CONTROL VALVE WITH TCM AND A/T FLUID TEMPERATURE SENSOR 2 ".
  2. Check resistance between terminals.

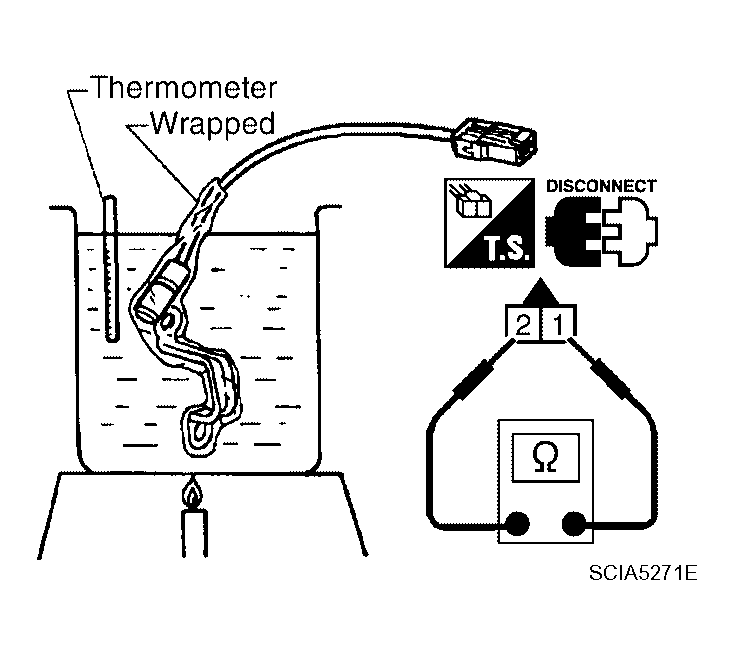

    Fig 1: Checking Resistance Between A/T Fluid Temperature Sensor 2 Connector Terminals
    G04185833Courtesy of NISSAN MOTOR CO., U.S.A.
    TERMINAL RESISTANCE SPECIFICATION

    Name Terminal Temperature °C (°F) Resistance (Approx.) (kΩ)
    A/T fluid temperature sensor 2 1 - 2 0 (32) 10
    20 (68) 4
    80 (176) 0.5
  3. If NG, replace the A/T fluid temperature sensor 2. Refer to "CONTROL VALVE WITH TCM AND A/T FLUID TEMPERATURE SENSOR 2 ".
