Diagnostic Procedure

WARNING: This page is about a different car, the 2006 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK PNP SW CIRCUIT

    With CONSULT-II

    1. Turn ignition switch ON. (Do not start engine.)
    2. Select "SELECTION FROM MENU" in "DATA MONITOR" mode for "A/T" with CONSULT-II.

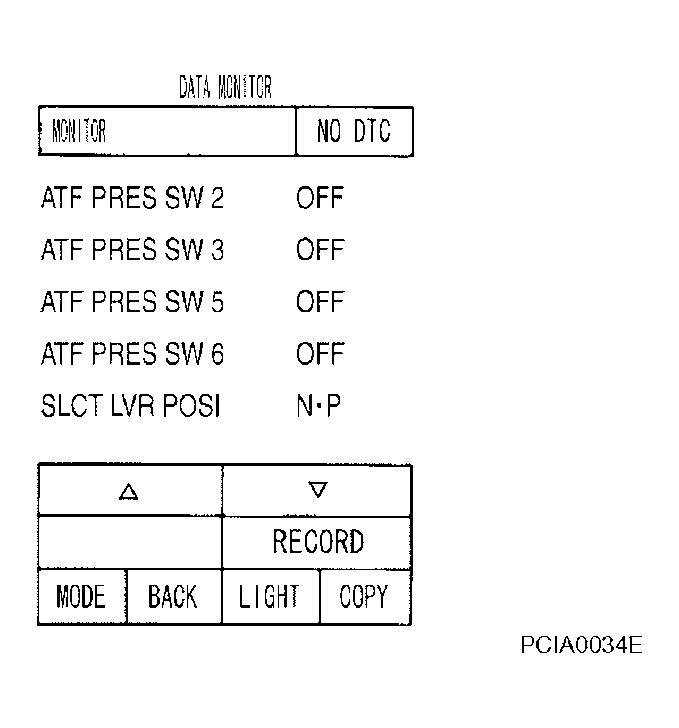

      3. Fig 1: CONSULT-II Display - DATA MONITOR MODE
      G04185807Courtesy of NISSAN MOTOR CO., U.S.A.
    3. Check if correct selector lever position (N/P, R or D) is displayed as selector lever is moved into each position.
      ITEM CONDITION CHART

      Item name Condition Display value
      SLCTLVR POSI Selector lever in "N", "P" positions. N/P
      Selector lever in "R" position. R
      Selector lever in "D" position. D
      Selector lever in "4" position. 4
      Selector lever in "3" position. 3
      Selector lever in "2" position. 2
      Selector lever in "1" position. 1

    OK or NG

    OK: GO TO  5.

    NG: GO TO 2.

  2. CHECK TCM POWER SUPPLY AND GROUND CIRCUIT

    Check TCM power supply and ground circuit. Refer to "MAIN POWER SUPPLY AND GROUND CIRCUIT ".

    OK or NG

    OK: GO TO 3.

    NG: Repair or replace damaged parts.

  3. DETECT MALFUNCTIONING ITEM

    Check the following items:

    • A/T assembly harness connector pin terminals for damage or loose connection with harness connector.

    OK or NG

    OK: GO TO 4.

    NG: Repair or replace damaged parts.

  4. CHECK SUB-HARNESS
    1. Remove control valve with TCM. Refer to "CONTROL VALVE WITH TCM AND A/T FLUID TEMPERATURE SENSOR 2 ".
    2. Disconnect park/neutral position switch connector and TCM connector.
    3. Check continuity between park/neutral position switch connector terminals and TCM connector terminals.

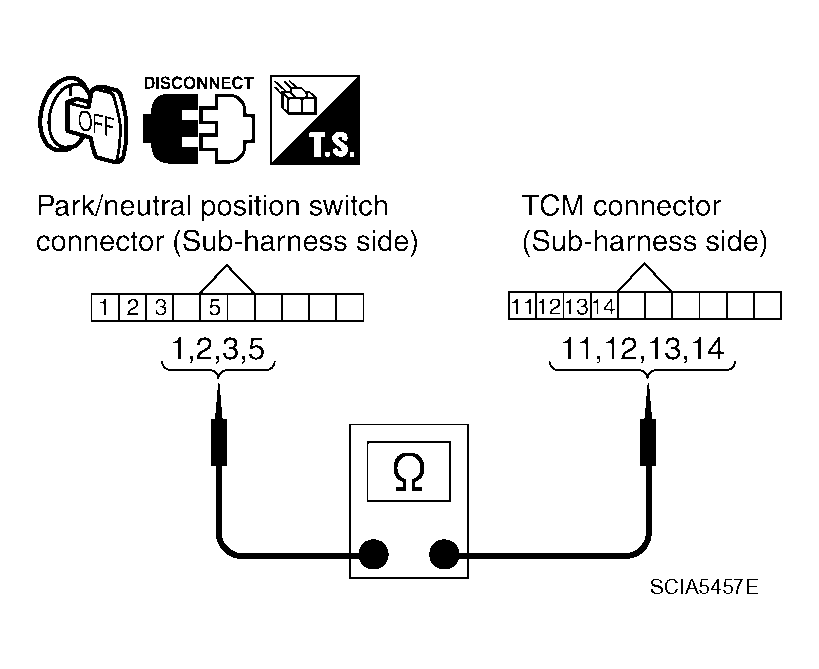

      Fig 2: Checking Continuity Between Park/Neutral Position Switch Connector Terminals And TCM Connector Terminals
      G04185808Courtesy of NISSAN MOTOR CO., U.S.A.
      TERMINAL CONTINUITY SPECIFICATION

      Item Connector Terminal Continuity
      Park/neutral position switch connector F505 1 Yes
      TCM connector F503 13
      Park/neutral position switch connector F505 2 Yes
      TCM connector F503 11
      Park/neutral position switch connector F505 3 Yes
      TCM connector F503 12
      Park/neutral position switch connector F505 5 Yes
      TCM connector F503 14
    4. If OK, check harness for short to ground and short to power.
    5. Reinstall any part removed.

    OK or NG

    OK: Replace the control valve with TCM. Refer to "CONTROL VALVE WITH TCM AND A/T FLUID TEMPERATURE SENSOR 2 ".

    NG: Replace open circuit or short to ground and short to power in harness or connectors.

  5. CHECK DTC

    Perform "DTC Confirmation Procedure".

    OK or NG

    OK: INSPECTION END

    NG: GO TO  2.
