Available Piston
WARNING: This page is about a different car, the 2006 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
AVAILABLE PISTON SPECIFICATION
| Unit: mm (in) | |||
|---|---|---|---|
| Items | Standard | Limit | |

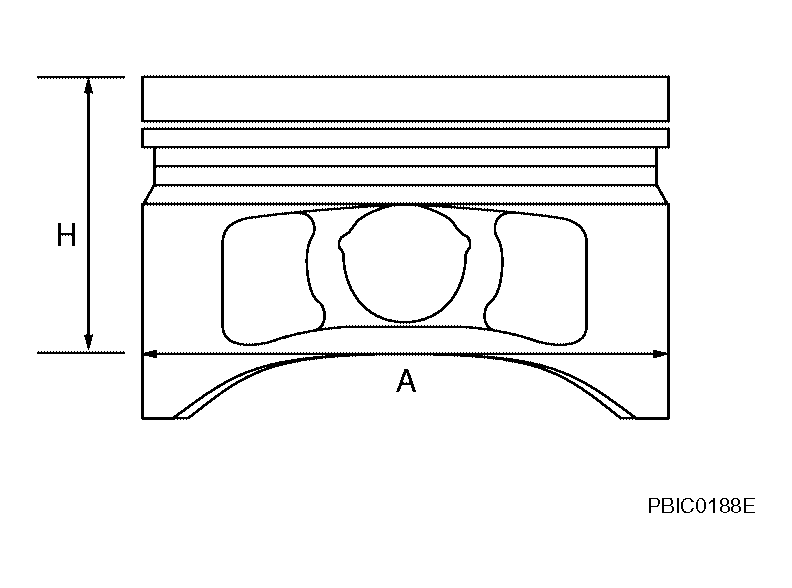

| Piston skirt diameter "A" | Grade No. 1 | 97.980 - 97.990 (3.8575 - 3.8579) | - |
| Grade No. 2 | 97.990 - 98.000 (3.8579 - 3.8583) | - | |
| Grade No. 3 | 98.000 - 98.010 (3.8583 - 3.8587) | - | |
| Grade No. 0 (Service) | 98.180 - 98.210 (3.8653 - 3.8665) | 0.20 (0.0079) | |
| "H" dimension | 39 (1.54) | - | |
| Piston pin hole diameter | Grade No. 0 | 21.993 - 21.999 (0.8659 - 0.8661) | - |
| Piston to cylinder bore clearance | 0.010 - 0.030 (0.0004 - 0.0012) | 0.08 (0.0031) | |
