Standard and Limit: Crankshaft
WARNING: This page is about a different car, the 2006 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
CRANKSHAFT SPECIFICATION
| Unit: mm (in) | |||||
|---|---|---|---|---|---|

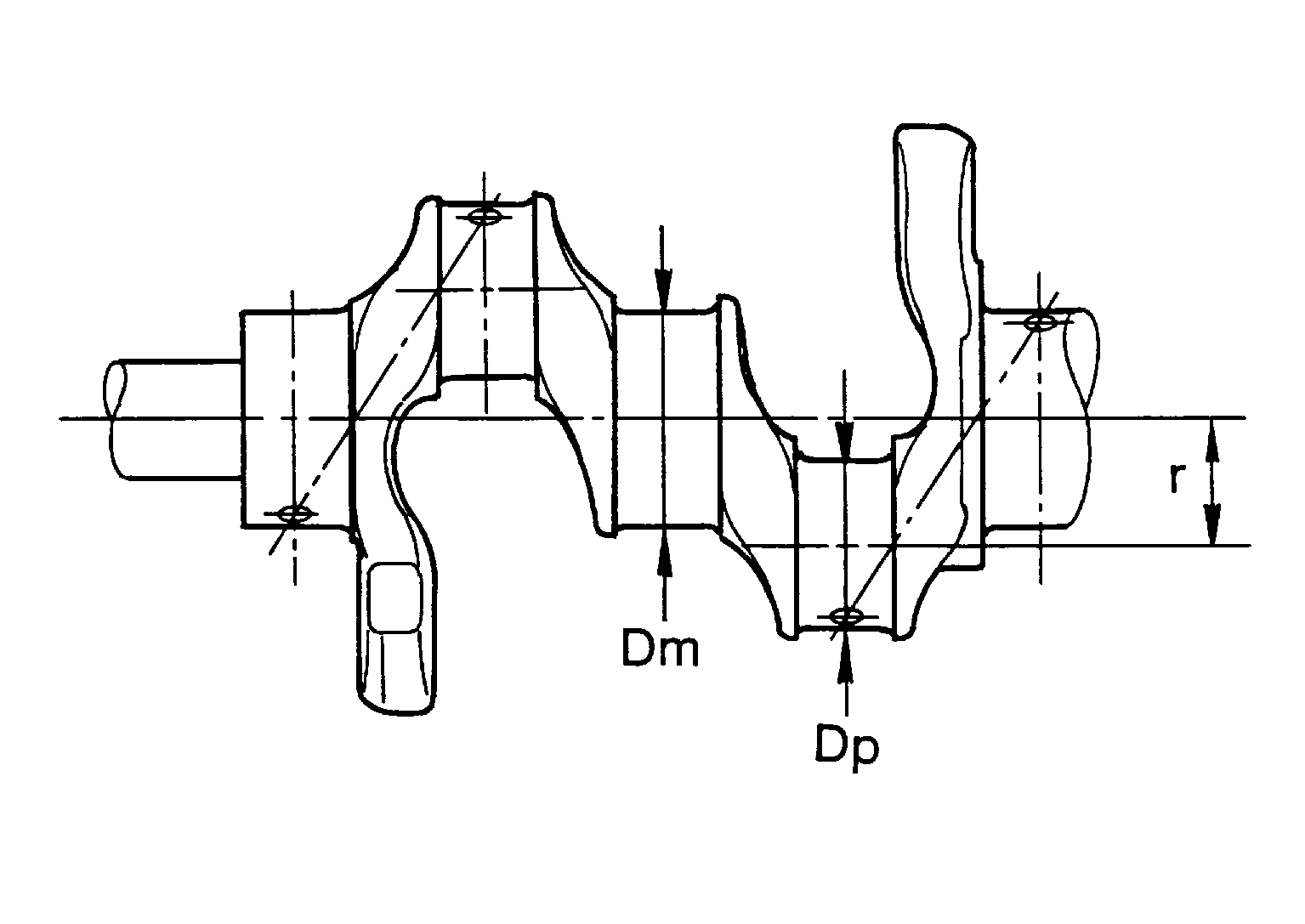

| Main journal dia. "Dm" grade (No. 1 and 5) | Standard | Grade No. G | 63.963 - 63.964 (2.5182 - 2.5183) | ||
| Grade No. H | 63.962 - 63.963 (2.5182 - 2.5182) | ||||
| Grade No. J | 63.961 - 63.962 (2.5181 - 2.5182) | ||||
| Grade No. K | 63.960 - 63.961 (2.5181 - 2.5181) | ||||
| Grade No. L | 63.959 - 63.960 (2.5181 - 2.5181) | ||||
| Grade No. M | 63.958 - 63.959 (2.5180 - 2.5181) | ||||
| Grade No. N | 63.957 - 63.958 (2.5180 - 2.5180) | ||||
| Grade No. P | 63.956 - 63.957 (2.5179 - 2.5180) | ||||
| Grade No. R | 63.955 - 63.956 (2.5179 - 2.5179) | ||||
| Grade No. S | 63.954 - 63.955 (2.5179 - 2.5179) | ||||
| Grade No. T | 63.953 - 63.954 (2.5178 - 2.5179) | ||||
| Grade No. U | 63.952 - 63.953 (2.5178 - 2.5178) | ||||
| Grade No. V | 63.951 - 63.952 (2.5178 - 2.5178) | ||||
| Grade No. W | 63.950 - 63.951 (2.5177 - 2.5178) | ||||
| Grade No. X | 63.949 - 63.950 (2.5177 - 2.5177) | ||||
| Grade No. Y | 63.948 - 63.949 (2.5176 - 2.5177) | ||||
| Grade No. 1 | 63.947 - 63.948 (2.5176 - 2.5176) | ||||
| Grade No. 2 | 63.946 - 63.947 (2.5176 - 2.5176) | ||||
| Grade No. 3 | 63.945 - 63.946 (2.5175 - 2.5176) | ||||
| Grade No. 4 | 63.944 - 63.945 (2.5175 - 2.5175) | ||||
| Grade No. 5 | 63.943 - 63.944 (2.5174 - 2.5175) | ||||
| Grade No. 6 | 63.942 - 63.943 (2.5174 - 2.5174) | ||||
| Grade No. 7 | 63.941 - 63.942 (2.5174 - 2.5174) | ||||
| Grade No. 9 | 63.940 - 63.941 (2.5173 - 2.5174) | ||||
| Main journal dia. "Dm" grade (No. 2, 3 and 4) | Standard | Grade No. A | 63.963 - 63.964 (2.5182 - 2.5183) | ||
| Grade No. B | 63.962 - 63.963 (2.5182 - 2.5182) | ||||
| Grade No. C | 63.961 - 63.962 (2.5181 - 2.5182) | ||||
| Grade No. D | 63.960 - 63.961 (2.5181 - 2.5181) | ||||
| Grade No. E | 63.959 - 63.960 (2.5181 - 2.5181) | ||||
| Grade No. F | 63.958 - 63.959 (2.5180 - 2.5181) | ||||
| Grade No. G | 63.957 - 63.958 (2.5180 - 2.5180) | ||||
| Grade No. H | 63.956 - 63.957 (2.5179 - 2.5180) | ||||
| Grade No. J | 63.955 - 63.956 (2.5179 - 2.5179) | ||||
| Grade No. K | 63.954 - 63.955 (2.5179 - 2.5179) | ||||
| Grade No. L | 63.953 - 63.954 (2.5178 - 2.5179) | ||||
| Grade No. M | 63.952 - 63.953 (2.5178 - 2.5178) | ||||
| Grade No. N | 63.951 - 63.952 (2.5178 - 2.5178) | ||||
| Grade No. P | 63.950 - 63.951 (2.5177 - 2.5178) | ||||
| Grade No. R | 63.949 - 63.950 (2.5177 - 2.5177) | ||||
| Grade No. S | 63.948 - 63.949 (2.5176 - 2.5177) | ||||
| Grade No. T | 63.947 - 63.948 (2.5176 - 2.5176) | ||||
| Grade No. U | 63.946 - 63.947 (2.5176 - 2.5176) | ||||
| Grade No. V | 63.945 - 63.946 (2.5175 - 2.5176) | ||||
| Grade No. W | 63.944 - 63.945 (2.5175 - 2.5175) | ||||
| Grade No. X | 63.943 - 63.944 (2.5174 - 2.5175) | ||||
| Grade No. Y | 63.942 - 63.943 (2.5174 - 2.5174) | ||||
| Grade No. 1 | 63.941 - 63.942 (2.5174 - 2.5174) | ||||
| Grade No. 2 | 63.940 - 63.941 (2.5173 - 2.5174) | ||||
| Pin journal dia. "Dp" | Standard | Grade No. 0 | 53.968 - 53.974 (2.1247 - 2.1250) | ||
| Grade No. 1 | 53.962 - 53.968 (2.1245 - 2.1247) | ||||
| Grade No. 2 | 53.956 - 53.962 (2.1243 - 2.1245) | ||||
| Center distance "r" | 45.96 - 46.04 (1.8094 - 1.8126) | ||||

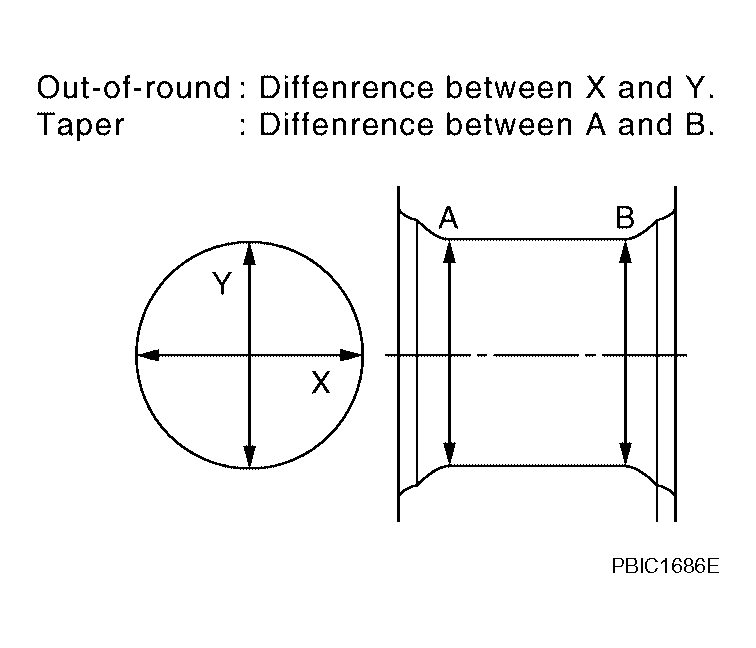

| Out-of-round (Difference between X and Y) | Limit | 0.002 (0.0001) | |||
| Taper (Difference between A and B) | 0.002 (0.0001) | ||||
| Runout [TIR(1)] | Less than 0.05 (0.002) | ||||
| Crankshaft end play | Standard | 0.10 - 0.26 (0.0039 - 0.0102) | |||
| Limit | 0.30 (0.0118) | ||||
|
|||||
