Removal and Installation: Removal

WARNING: This page is about a different car, the 2005 Nissan Frontier. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • Before servicing the SRS, turn the ignition switch off, disconnect both battery cables and wait at least 3 minutes.
  1. Remove crash zone sensor nuts and shield from support member.
  2. Disconnect the crash zone sensor harness connector.
  3. Remove crash zone sensor.

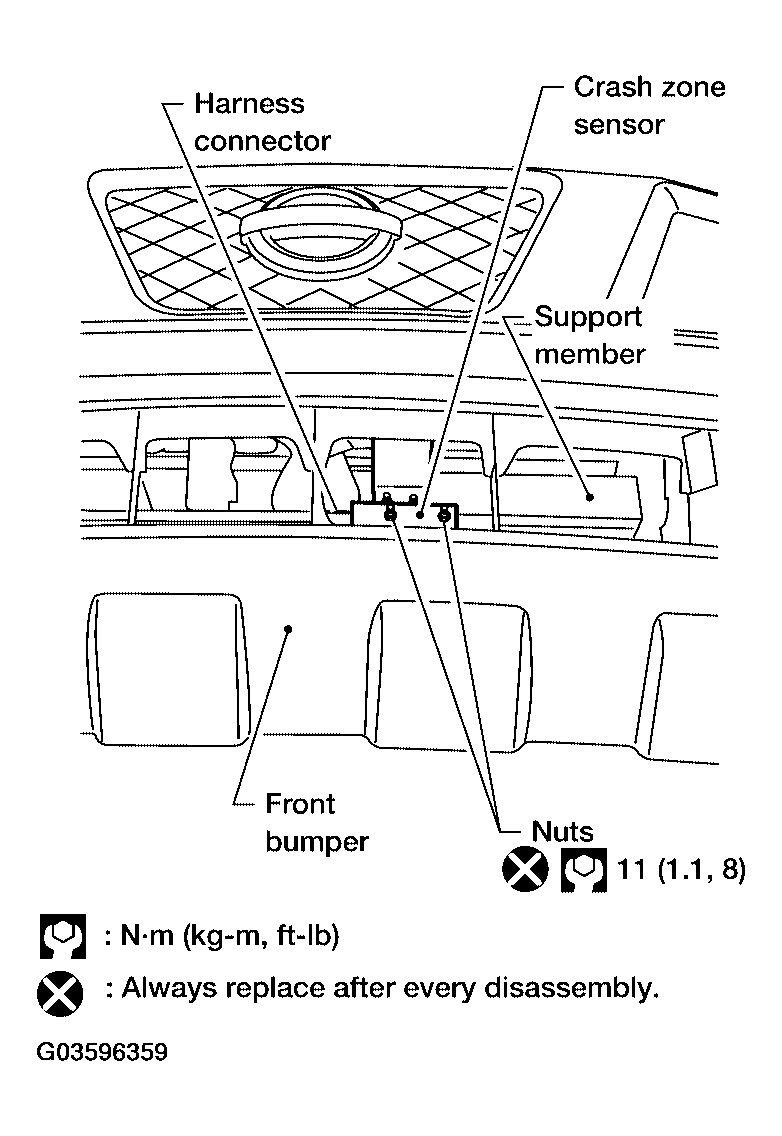

    Fig 1: Locating Crash Zone Sensor Nuts And Shield With Torque Specifications
    G03596359Courtesy of NISSAN MOTOR CO., U.S.A.
CAUTION:
  • Replace crash zone sensor if it has been dropped or sustained an impact.
  • Do not disassemble crash zone sensor.
