Diagnostic Procedure

WARNING: This page is about a different car, the 2005 Nissan Frontier. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK DIFFERENTIAL LOCK MODE SWITCH SIGNAL

    With CONSULT-II

    1. Start engine.
    2. Select "DATA MONITOR" mode for "DIFF LOCK" with CONSULT-II.
    3. Read out ON/OFF switching action of "D-LOCK SW SIG".
      MONITOR ITEM DISPLAY VALUE REFERENCE

      Monitor item Condition Display value
      D-LOCK SW SIG
      • Vehicle stopped
      • Engine running
      Differential lock mode switch: ON ON
      Differential lock mode switch: OFF OFF

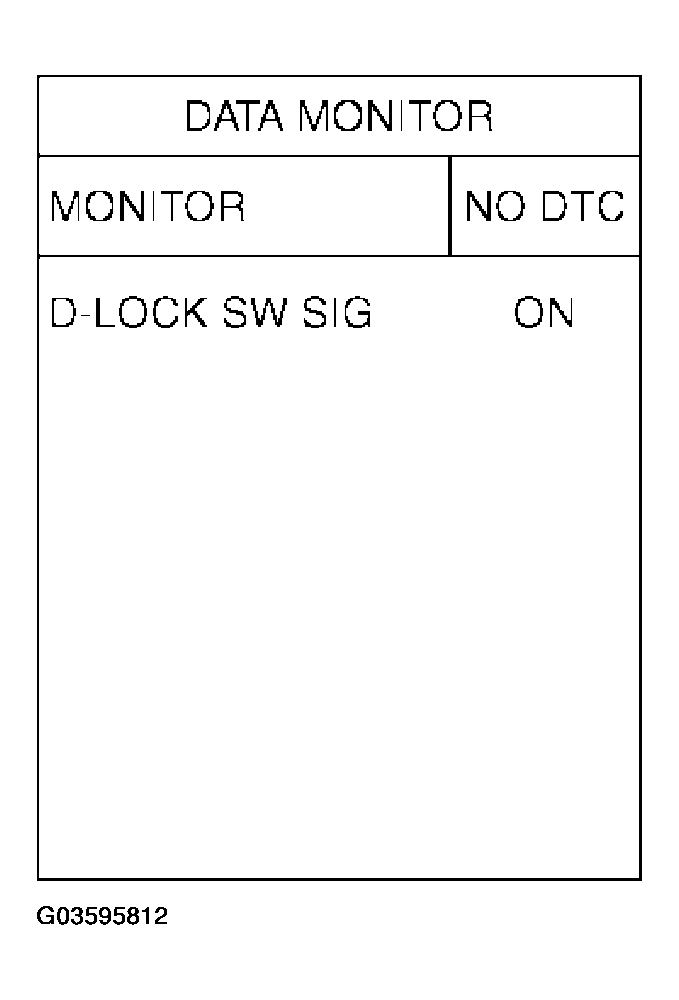

      Fig 1: Display D-Lock SW Sig On Data Monitor Mode
      G03595812Courtesy of NISSAN MOTOR CO., U.S.A.

    Without CONSULT-II

    1. Turn ignition switch ON.
    2. Check voltage between differential lock control unit harness connector terminals and ground.
      DIFFERENTIAL LOCK CONTROL UNIT HARNESS CONNECTOR TERMINALS AND GROUND VOLTAGE SPECIFICATIONS

      Connector Terminal Condition Voltage (Approx.)
      M70 9 - Ground Ignition switch: ON Differential lock mode switch: ON Battery voltage
      Differential lock mode switch: OFF 0V
      22 - Ground Differential lock mode switch: ON 0V
      Differential lock mode switch: OFF Battery voltage

    OK or NG

    • OK: GO TO  5.
    • NG: GO TO 2.

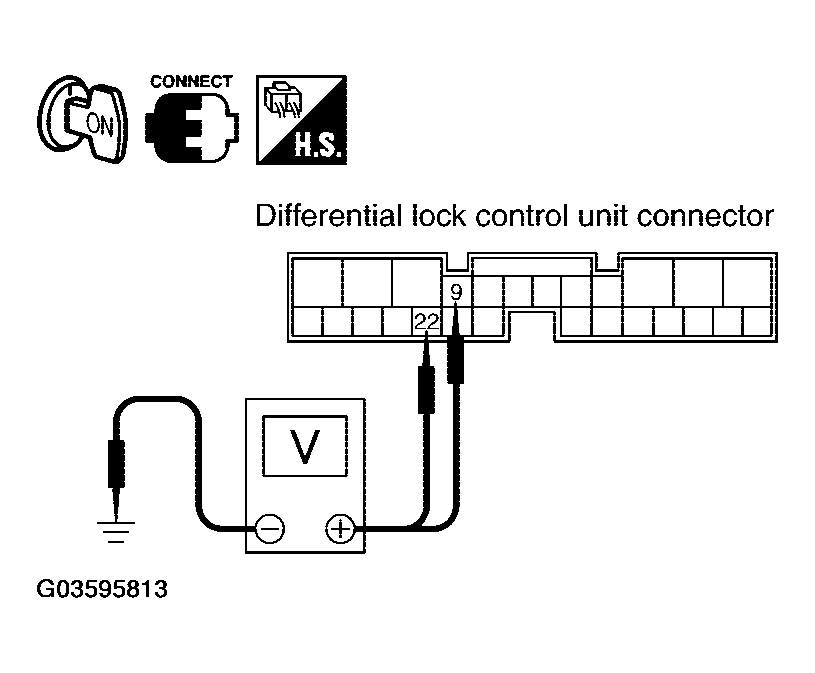

      Fig 2: Checking Voltage Between Differential Lock Control Unit Harness Connector Terminals And Ground
      G03595813Courtesy of NISSAN MOTOR CO., U.S.A.
  2. CHECK DIFFERENTIAL LOCK MODE SWITCH SUPPLY CIRCUIT
    1. Turn ignition switch ON.
    2. Disconnect differential lock mode switch harness connector.
    3. Check voltage between differential lock mode switch harness connector terminal 3 and ground.
      DIFFERENTIAL LOCK MODE SWITCH HARNESS CONNECTOR TERMINAL 3 AND GROUND VOLTAGE SPECIFICATIONS

      Connector Terminal Voltage (Approx.)
      M149 3 - Ground Battery voltage
      Fig 3: Checking Voltage Between Differential Lock Mode Switch Harness Connector Terminal 3 And Ground
      G03595814Courtesy of NISSAN MOTOR CO., U.S.A.
    4. Turn ignition switch OFF.
    5. Check voltage between differential lock mode switch harness connector terminal 3 and ground.
      DIFFERENTIAL LOCK MODE SWITCH HARNESS CONNECTOR TERMINAL 3 AND GROUND VOLTAGE SPECIFICATIONS

      Connector Terminal Voltage (Approx.)
      M149 3 - Ground 0V

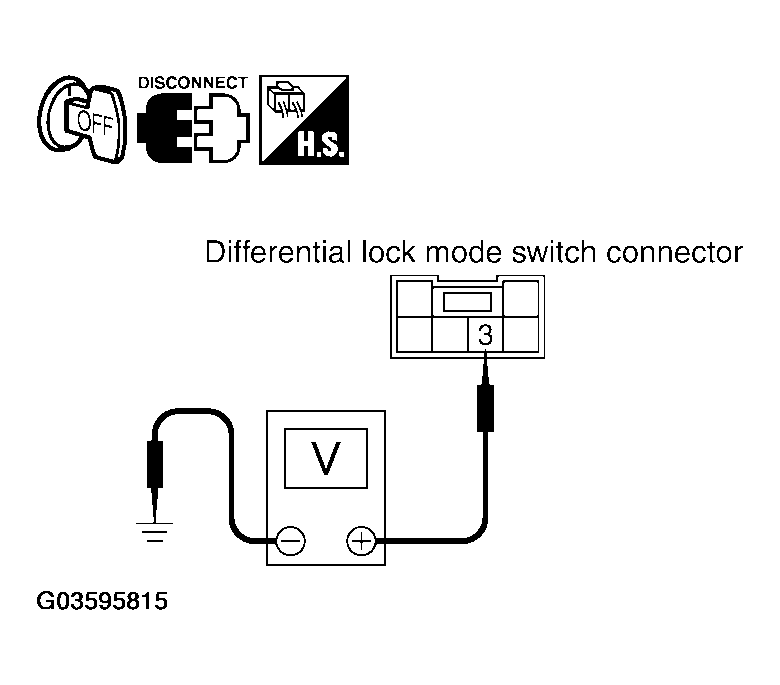

      Fig 4: Checking Voltage Between Differential Lock Mode Switch Harness Connector Terminal 3 And Ground
      G03595815Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    • OK: GO TO 3.
    • NG: Check the following. If any items are damaged, repair or replace damaged parts.
      • 10A fuse [No. 3, located in fuse block (J/B)]
      • Harness for short or open between ignition switch and differential lock mode switch harness connector terminal 3
      • Ignition switch. Refer to "POWER SUPPLY ROUTING CIRCUIT ".
  3. CHECK DIFFERENTIAL LOCK MODE SWITCH
    1. Turn ignition switch OFF.
    2. Operate differential lock mode switch and check continuity between differential lock mode switch terminals.
      DIFFERENTIAL LOCK MODE SWITCH TERMINALS CONTINUITY CONDITIONS

      Terminal Condition Continuity
      1 - 3 Differential lock mode switch: ON No
      Differential lock mode switch: OFF Yes
      2 - 3 Differential lock mode switch: ON Yes
      Differential lock mode switch: OFF No

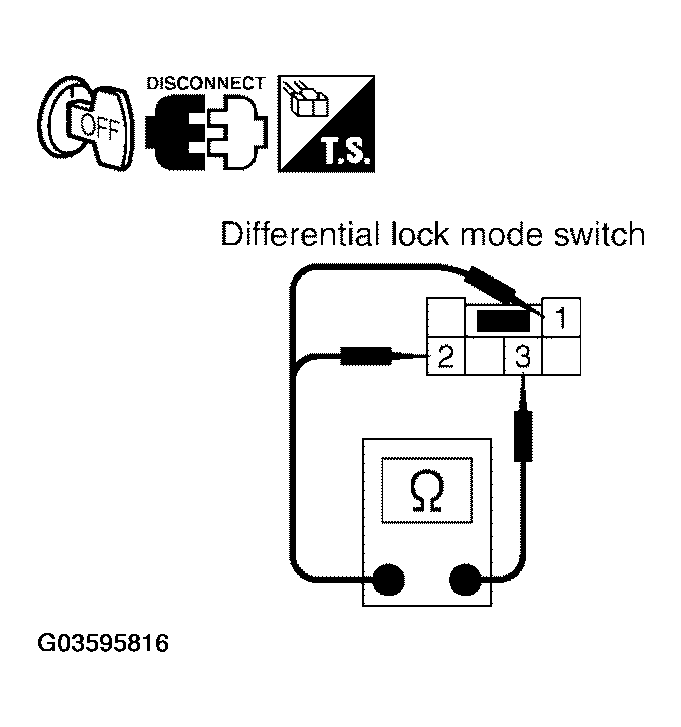

      Fig 5: Checking Continuity Between Differential Lock Mode Switch Terminals
      G03595816Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    • OK: GO TO 4.
    • NG: Replace differential lock mode switch.
  4. CHECK HARNESS BETWEEN DIFFERENTIAL LOCK CONTROL UNIT AND DIFFERENTIAL LOCK MODE SWITCH
    1. Disconnect differential lock control unit harness connector.
    2. Check continuity between the following terminals.
      • Differential lock control unit harness connector M70 terminal 9 and differential lock mode switch harness connector M149 terminal 2.
      • Differential lock control unit harness connector M70 terminal 22 and differential lock mode switch harness connector M149 terminal 1.

        Continuity should exist.

        Also check harness for short to ground and short to power.

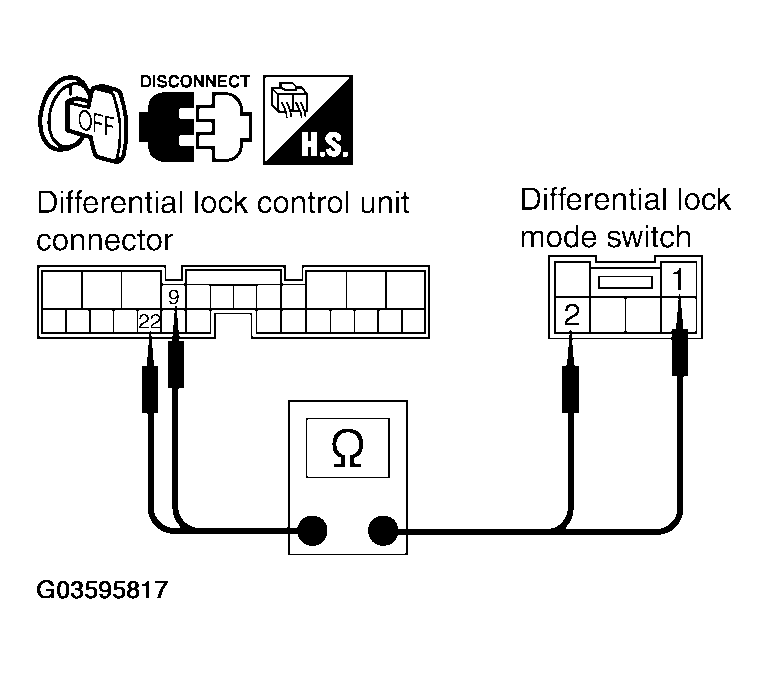

        Fig 6: Checking Continuity Between Differential Lock Control Unit And Differential Lock Mode Switch Terminals
        G03595817Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    • OK: GO TO 5.
    • NG: Repair or replace damaged parts.
  5. CHECK DIFFERENTIAL LOCK CONTROL UNIT

    Check differential lock control unit input/output signal. Refer to "DIFFERENTIAL LOCK CONTROL UNIT INPUT/OUTPUT SIGNAL REFERENCE VALUES ".

    OK or NG

    • OK: GO TO 6.
    • NG: Check differential lock control unit pin terminals for damage or loose connection with harness connector. If any items are damaged, repair or replace damaged parts.
  6. CHECK DTC

    Perform the self-diagnosis, after driving the vehicle for a while.

    OK or NG
