Diagnostic Procedure

WARNING: This page is about a different car, the 2005 Nissan Frontier. However, it is still accessible from the selected car via links, so may be relevant.

CHECK CAN COMMUNICATION CIRCUIT
With CONSULT-II
1. Turn ignition switch ON and start engine.
2. Select "SELF-DIAG RESULTS" mode for "DIFF LOCK" with CONSULT-II.
3. Perform the self-diagnosis.
Is the "CAN COMM CIRCUIT [U1000]" displayed?
- YES: Go to "PRECAUTIONS WHEN USING CONSULT-II ".
- NO: Inspection End.

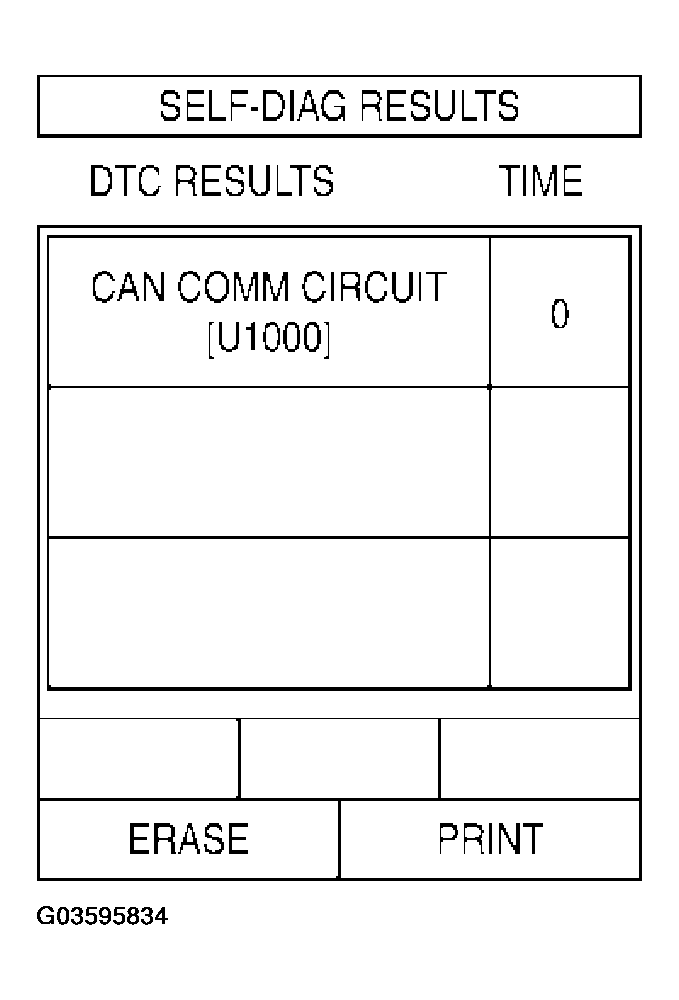

  Fig 1: Display Self-Diagnosis Results
  Courtesy of NISSAN MOTOR CO., U.S.A.
