Cluster Lid D: Removal

WARNING: This page is about a different car, the 2005 Nissan Frontier. However, it is still accessible from the selected car via links, so may be relevant.

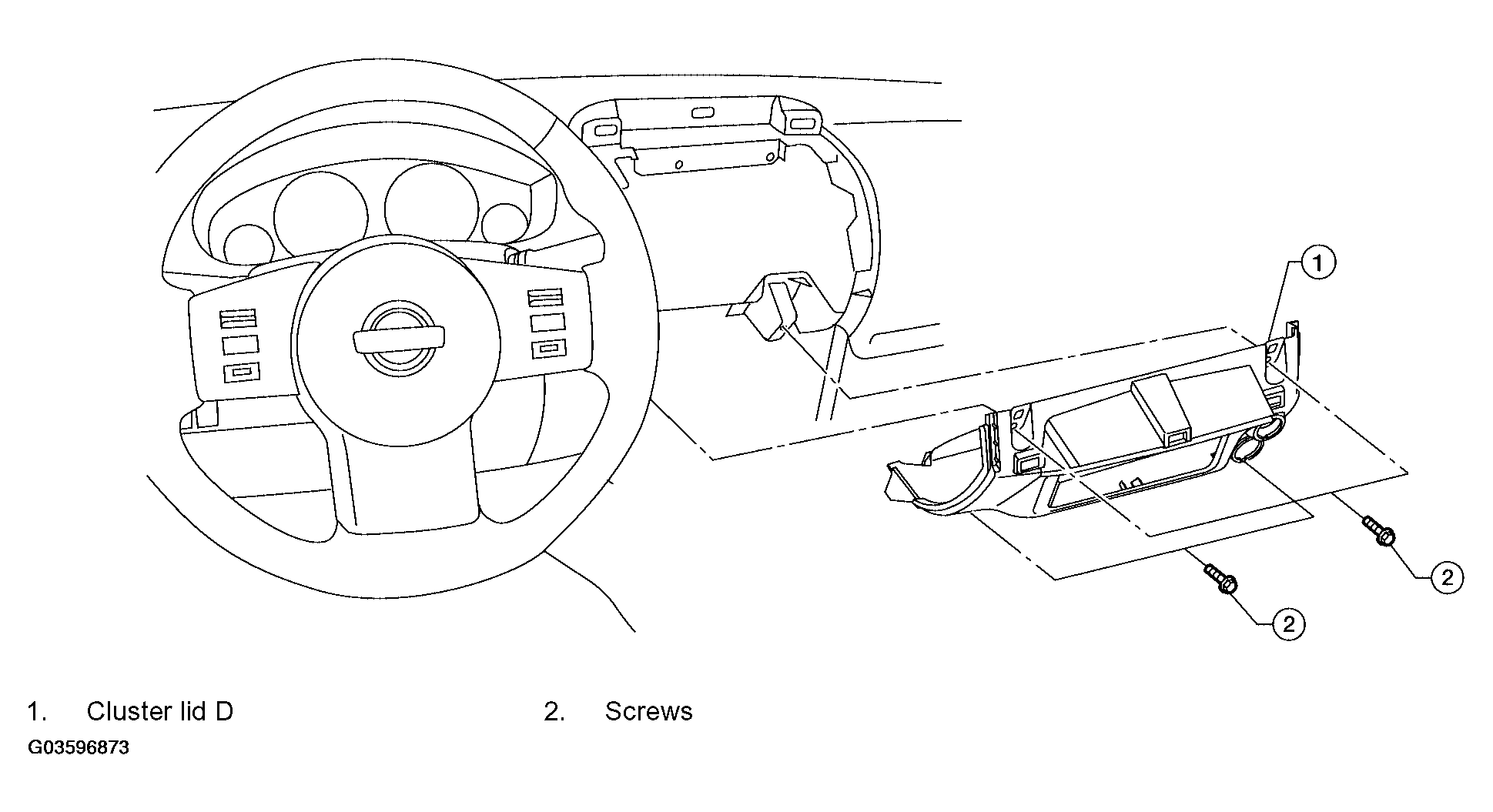

Fig 1: Removing Cluster Lid D
G03596873Courtesy of NISSAN MOTOR CO., U.S.A.
  1. Remove center console. Refer to "CENTER CONSOLE ".
  2. Remove lower instrument panel LH. Refer to "LOWER INSTRUMENT PANEL LH ".
  3. Remove glove box lower. Refer to "LOWER INSTRUMENT PANEL RH AND GLOVE BOX ".
  4. Disconnect the electrical connectors and remove cluster lid D.
