Cluster Lid C: Removal

WARNING: This page is about a different car, the 2005 Nissan Frontier. However, it is still accessible from the selected car via links, so may be relevant.

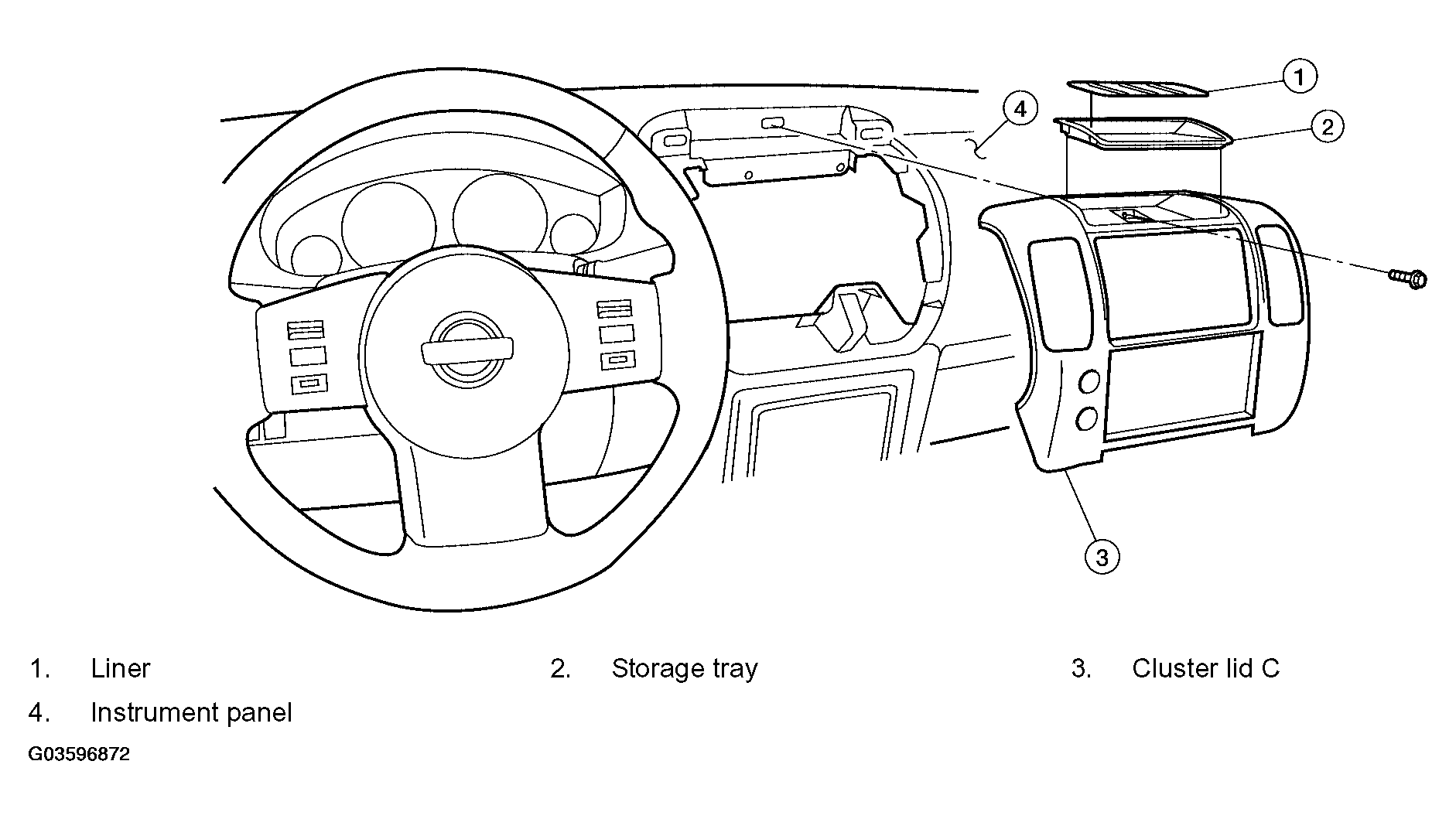

Fig 1: Removing Cluster Lid C
G03596872Courtesy of NISSAN MOTOR CO., U.S.A.
  1. Remove cluster lid D. Refer to "CLUSTER LID D ".
  2. Remove storage tray and storage tray liner, then remove cluster lid C screw.
  3. Pull cluster lid C rearward to release clips.
  4. Disconnect electrical connectors and remove cluster lid C.
