Disassembly and Assembly: Disassembly: Journal

WARNING: This page is about a different car, the 2005 Nissan Frontier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Put matching marks on the front propeller shaft and flange yoke as shown.
    CAUTION: For matching marks, use paint. Never damage the front propeller shaft or flange yoke.

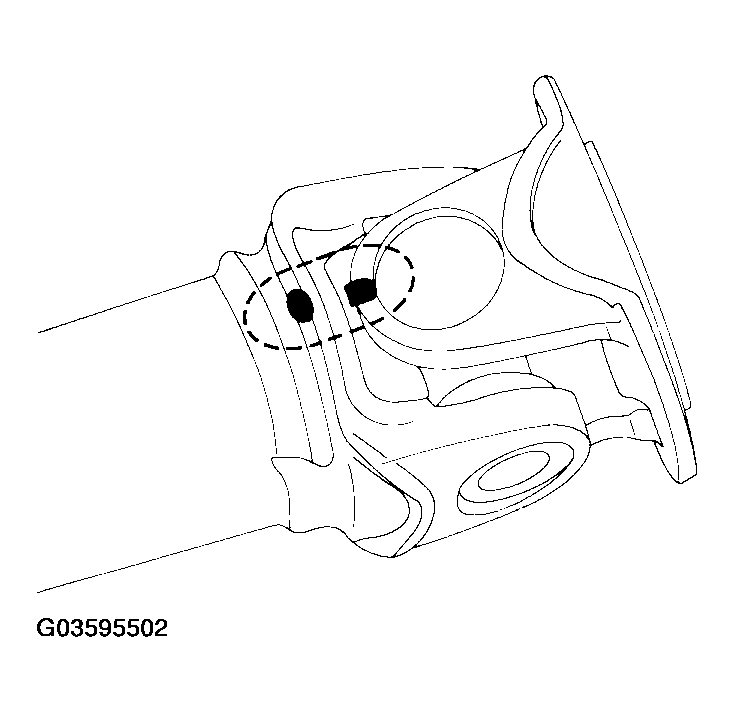

    Fig 1: Identifying Matching Marks On Front Propeller Shaft And Flange Yoke
    G03595502Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Remove the snap rings.

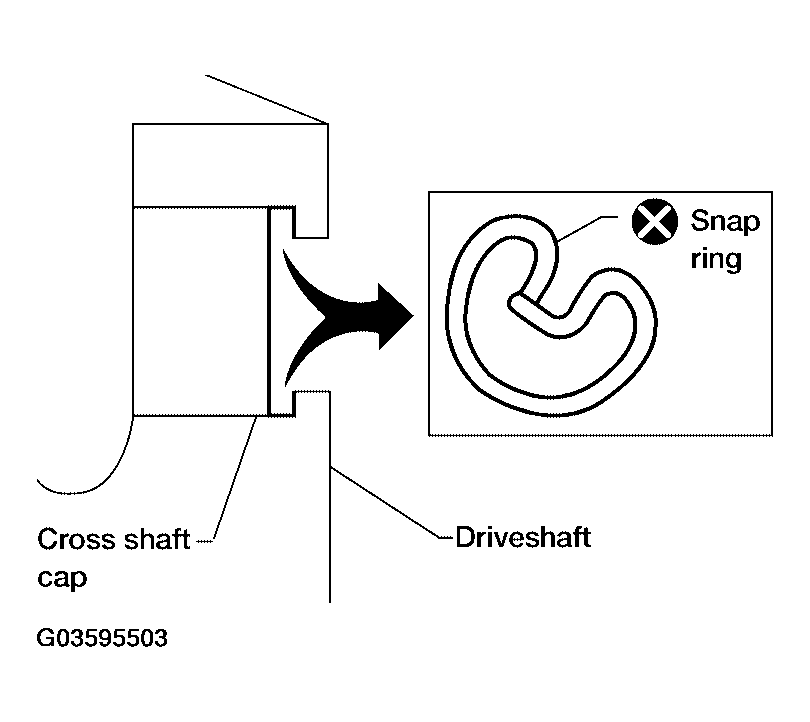

    Fig 2: Removing Snap Ring
    G03595503Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Push out and remove the journal bearings by lightly tapping the flange yoke with a hammer, taking care not to damage the journal or flange yoke hole.
    NOTE: Put marks on the disassembled parts so that they can be reinstalled in their original positions from which they were removed.

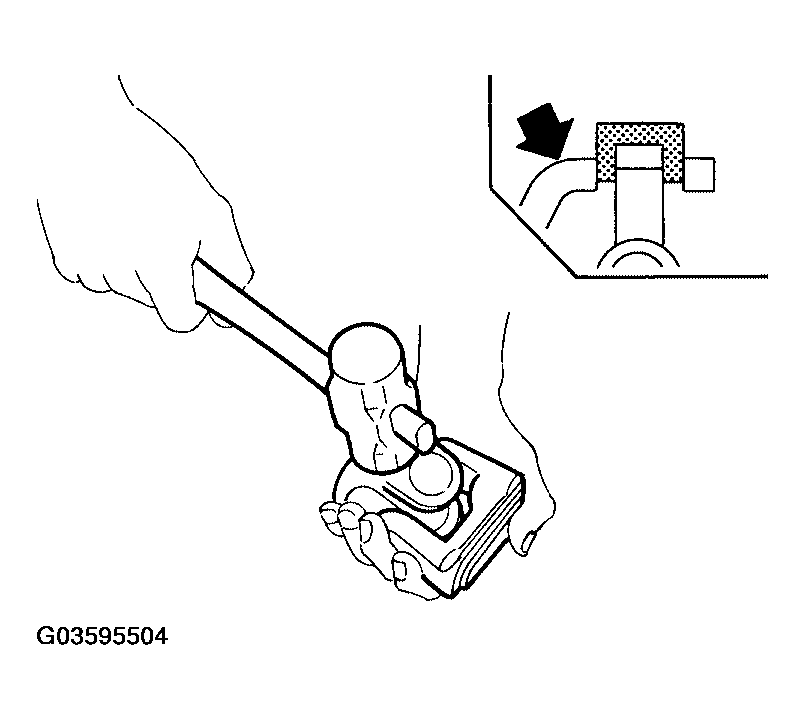

    Fig 3: Removing Journal Bearings
    G03595504Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Push out and remove the remaining journal bearings at the opposite side by lightly tapping the flange yoke with a hammer, taking care not to damage the journal or flange yoke hole.
    NOTE: Put marks on the disassembled parts so that they can be reinstalled in their original positions from which they were removed.

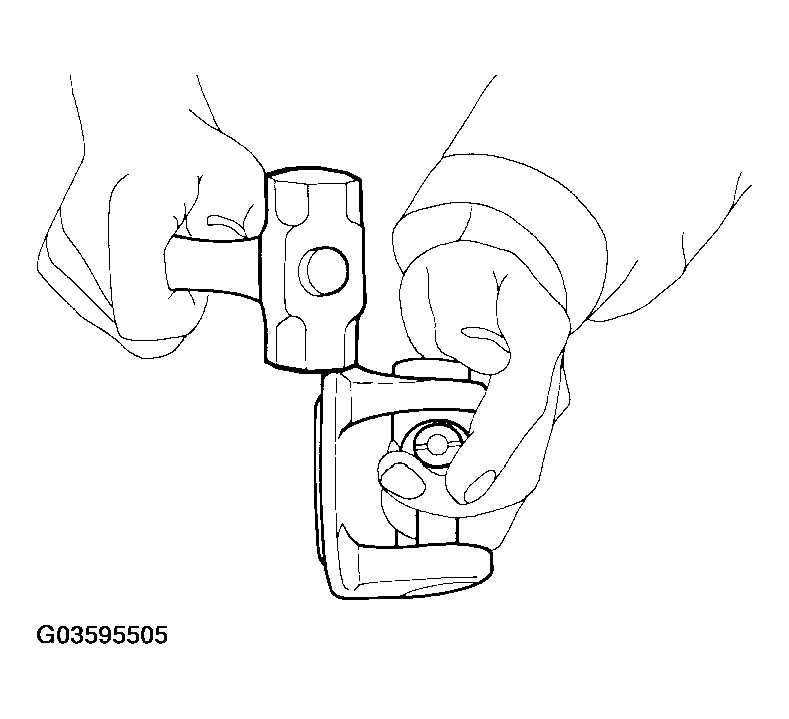

    Fig 4: Removing Journal Bearings (Opposite Side)
    G03595505Courtesy of NISSAN MOTOR CO., U.S.A.
