General Specifications
WARNING: This page is about a different car, the 2005 Nissan Frontier. However, it is still accessible from the selected car via links, so may be relevant.
GENERAL SPECIFICATIONS CHART
| Cylinder arrangement | V-6 | ||||
| Displacement cm3 (cu in) | 3, 954 (241.30) | ||||
| Bore and stroke mm (in) | 95.5 X 92.0 (3.76 X 3.622) | ||||
| Valve arrangement | DOHC | ||||
| Firing order | 1-2-3-4-5-6 | ||||
| Number of piston rings | Compression | 2 | |||
| Oil | 1 | ||||
| Number of main bearings | 4 | ||||
| Compression ratio | 9.7 | ||||
| Compression pressure kPa (kg/cm2 , psi)/300 RPM | Standard | 1, 275 (13.0, 185) | |||
| Minimum | 981 (10.0, 142) | ||||
| Differential limit between cylinders | 98 (1.0, 14) | ||||
| Cylinder number | |||||

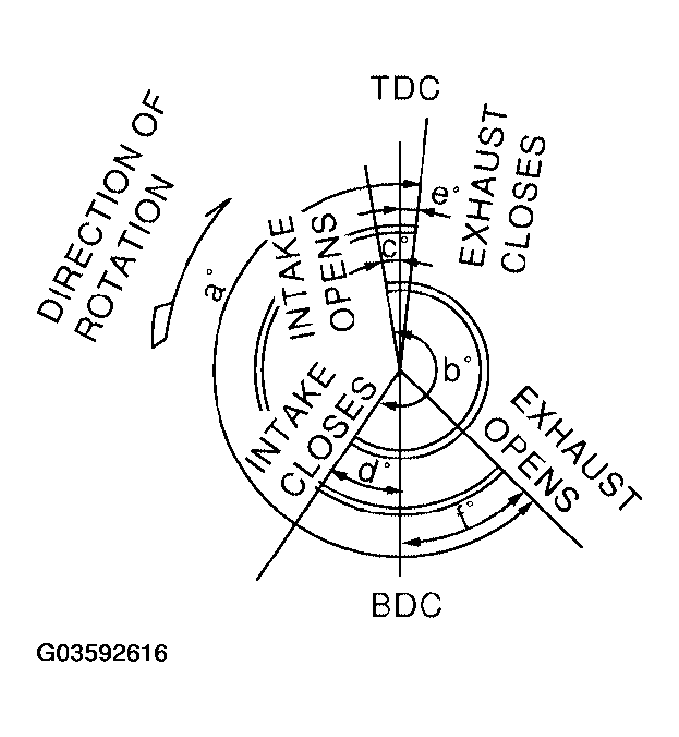

| Valve timing (Intake valve timing control - "OFF") | |||||
| Unit: degree | |||||
| a | b | c | d | e | f |
| 244 | 240 | -4 | 64 | 6 | 58 |
