Removal and Installation: Removal

WARNING: This page is about a different car, the 2005 Nissan Frontier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove engine undercover using power tool.
  2. Remove connecting rod nuts using power tool, as shown.
  3. Loosen top bolts for stabilizer bar mounting brackets, then remove lower bolts from mounting brackets and remove stabilizer bar.
  4. Remove bushings from stabilizer bar.

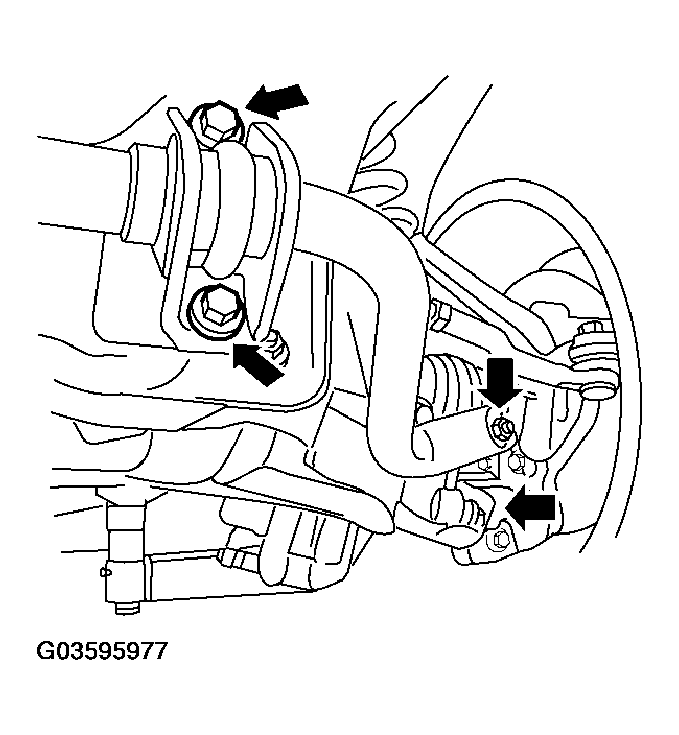

    Fig 1: Loosening Bolts For Stabilizer Bar Mounting Brackets
    G03595977Courtesy of NISSAN MOTOR CO., U.S.A.
