Removal and Installation: Removal

WARNING: This page is about a different car, the 2005 Nissan Frontier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the wheel and tire using power tool.
  2. Remove lower shock absorber bolt.
  3. Remove stabilizer bar connecting rod lower nut using power tool, then separate connecting rod from lower link. Refer to "REMOVAL AND INSTALLATION  ".
  4. On 4x4 models, remove the drive shaft. Refer to "REMOVAL AND INSTALLATION ".
  5. Remove pinch bolt from steering knuckle using power tool, then separate lower link ball joint from steering knuckle.

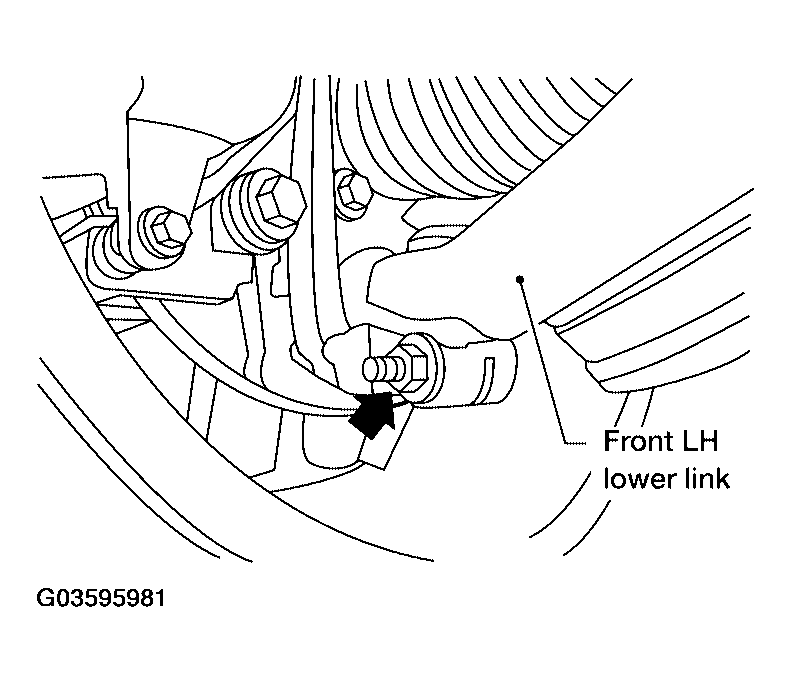

    Fig 1: Removing Lower Link Ball Joint And Locating Bolts
    G03595981Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Remove lower link adjusting bolts and nuts, then the lower link.

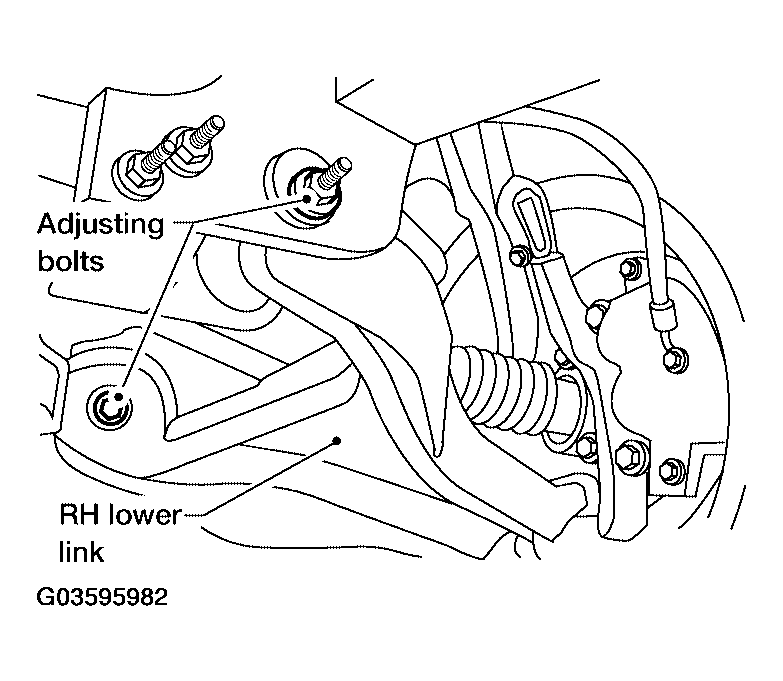

    Fig 2: Removing Lower Link Adjusting Bolts And Nuts
    G03595982Courtesy of NISSAN MOTOR CO., U.S.A.
