Removal and Installation: Installation

WARNING: This page is about a different car, the 2005 Nissan Frontier. However, it is still accessible from the selected car via links, so may be relevant.

Installation is in the reverse order of removal.

Refer to "COMPONENTS " for tightening torques.
CAUTION: Always replace drive shaft lock nut and cotter pin.
When installing disc rotor on wheel hub and bearing assembly, align the marks.
NOTE: When not using the alignment mark, refer to "FRONT DISC BRAKE ".
When installing wheel and tire, refer to "ROTATION ".
Perform wheel alignment. Refer to "FRONT WHEEL ALIGNMENT ".

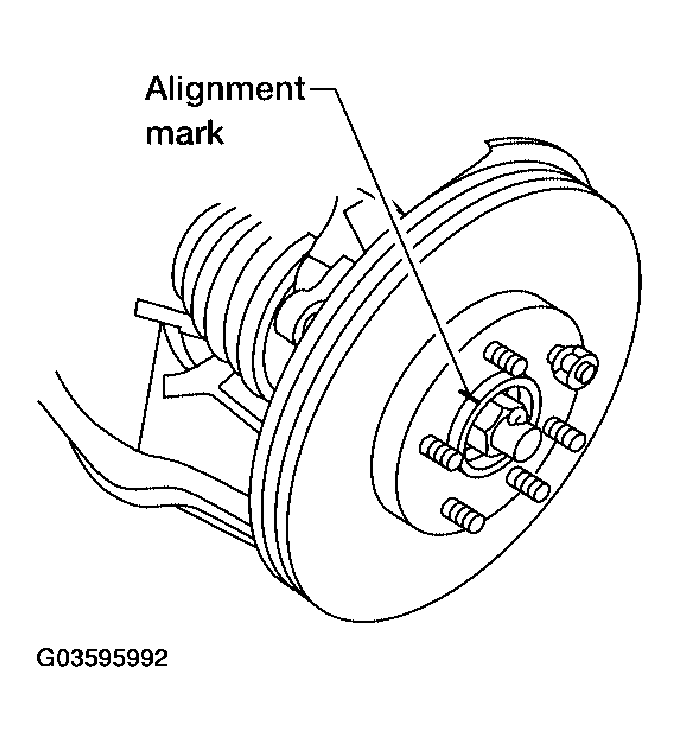

Fig 1: Identifying Alignment Mark On Wheel Hub And Bearing Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.
