Operation Procedure

WARNING: This page is about a different car, the 2005 Nissan Frontier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Perform "CONSULT-II SETTING PROCEDURE ".
  2. Touch "CAN DIAG SUPPORT MNTR". Refer to "CAN DIAGNOSTIC SUPPORT MONITOR ".

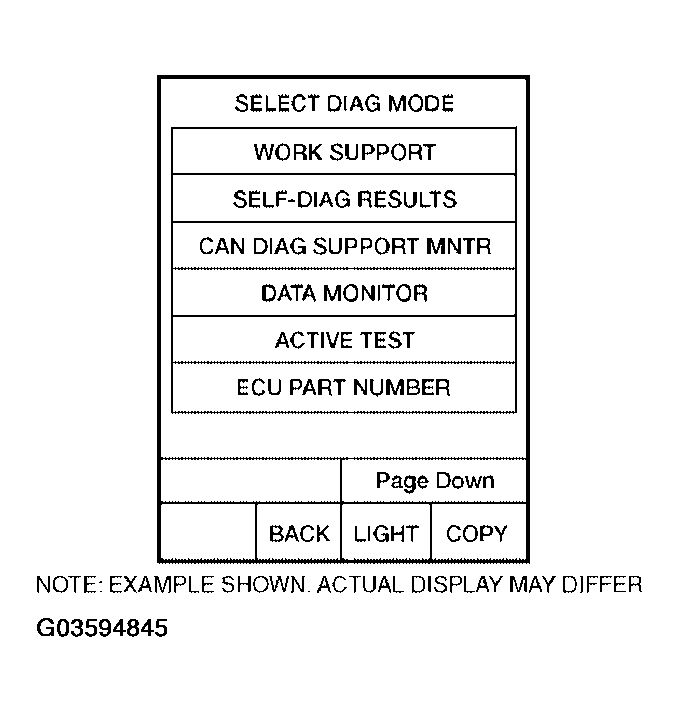

    Fig 1: CONSULT-II - Select Diag Mode Display
    G03594845Courtesy of NISSAN MOTOR CO., U.S.A.
